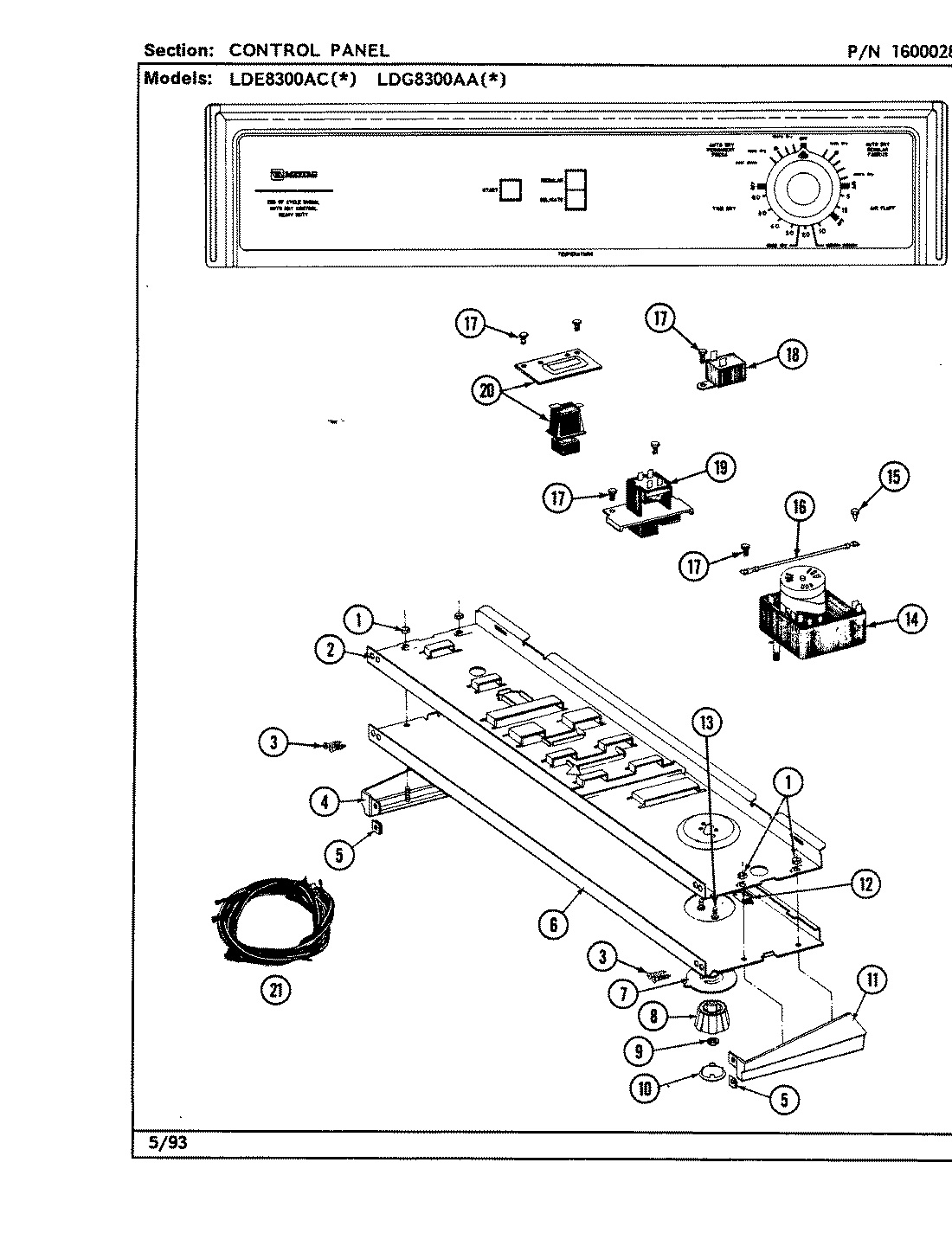

LDE8300ACW 03 – CONTROL PANEL

Products

Position	Product
1	MAY 214872
2	BACK UP PLATE
3	MAY 210932
4	MAY 207215
5	MAY 214894
6	MAY 308266
7	MAY 315042
8	MAY 315041
9	W10155650 Whirlpool Nut
10	WPW10133501 Whirlpool Cap
11	MAY 207216
12	MAY 214897
13	MAY 315317
14	MAY Y308218
15	WP90767 Whirlpool Screw
16	MAY 204807
17	WPW10139210 Whirlpool Screw
18	WP694419 Whirlpool Buzzer Adjuster
19	MAY 207365
20	SWITCH PUSH TO START
21	MAY 308332
22	MAY 16000327
22	MAY 315085
