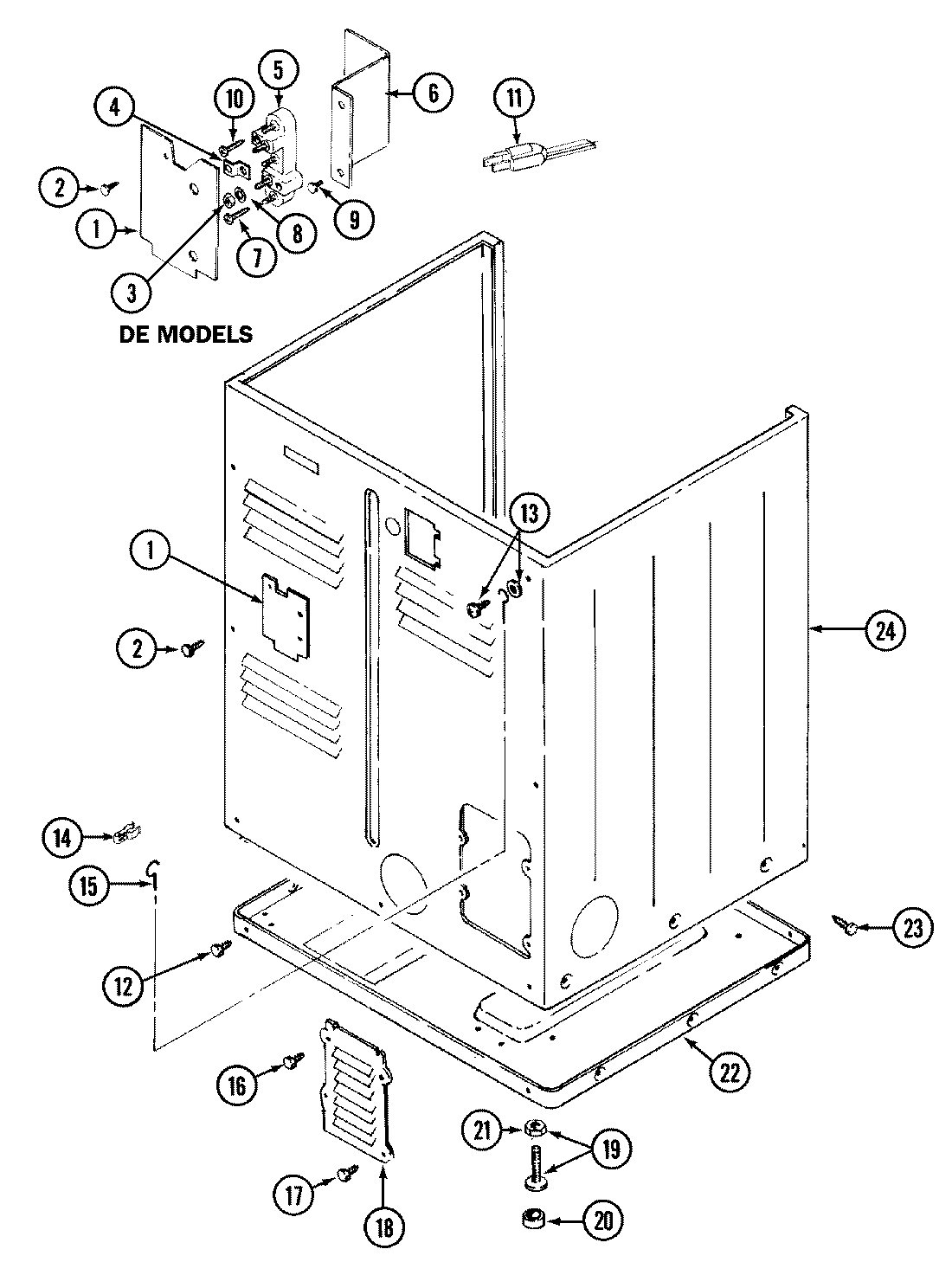

LDE8404ACM 02 – CABINET-REAR (LDE8404ACM & LDE8404ADM)

LDE8404ACM 02 – CABINET-REAR (LDE8404ACM & LDE8404ADM)

Written by

in

LDE8404ACM 02 – CABINET-REAR (LDE8404ACM & LDE8404ADM)

Products

PositionProduct
1MAY Y312905
3WP112432 Whirlpool Nut Assembly
4PART NOT USED
5PART NOT USED
6PART NOT USED
7SCREW, No.10-24 X 3/4 INCH—–O
8WPY311270 Whirlpool Washer TE
10W10850756 Whirlpool Screw
12MAY Y313561
12MAY Y310632
13MAY 303846
14MAY 301548
15MAY 204807
16MAY Y313559
17WP90767 Whirlpool Screw
18MAY Y312951
19W10176519 Whirlpool Leveling Feet
20WPY314137 Whirlpool Rubber Foot
21WP62739 Whirlpool Nut
22MAY Y303361
23213007 Whirlpool Screw #12
24MAY 33001160
