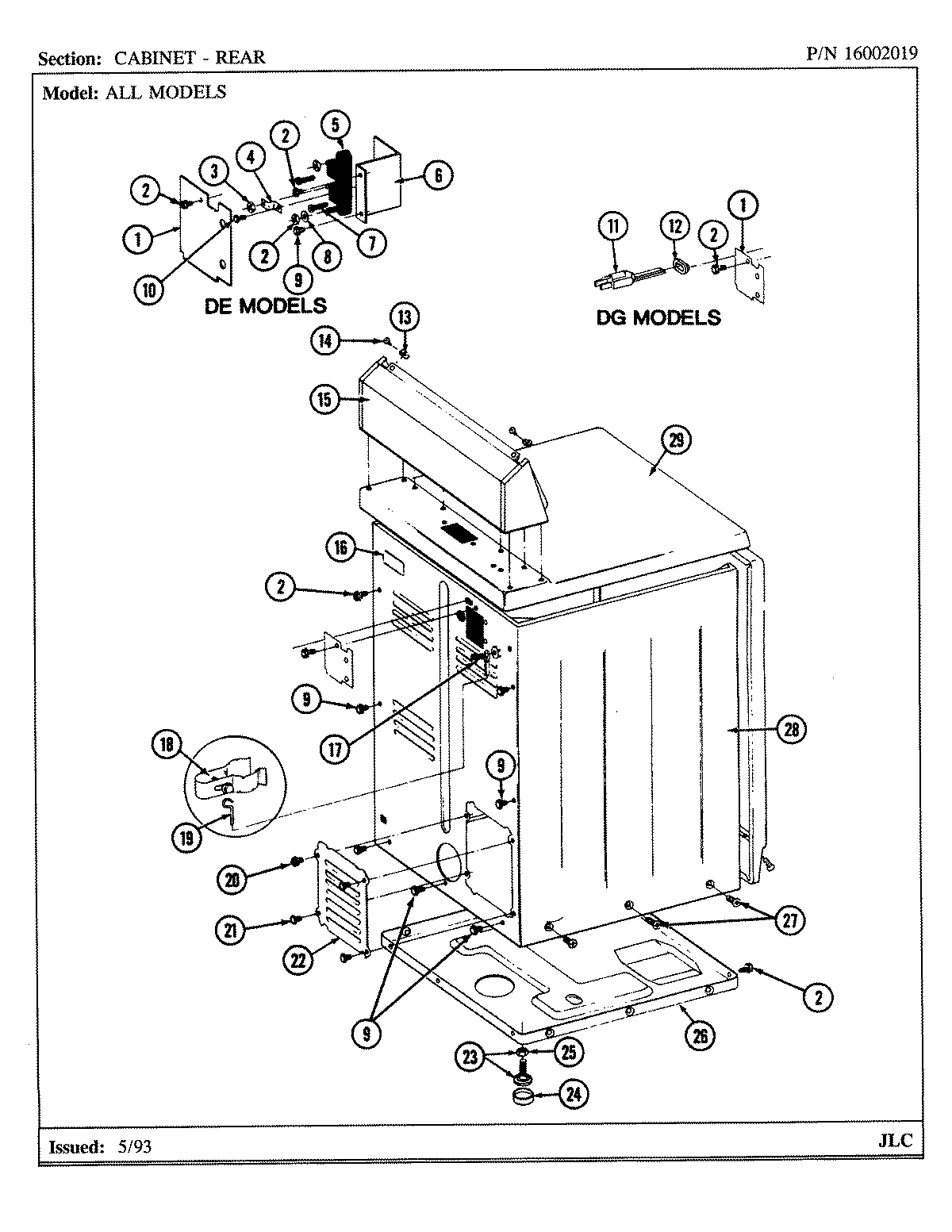

LDE8410ACE 02 – CABINET-REAR

Products

Position	Product
1	MAY Y312905
2	MAY Y313561
3	WP112432 Whirlpool Nut Assembly
4	PART NOT USED
5	PART NOT USED
6	PART NOT USED
7	SCREW, No.10-24 X 3/4 INCH-----O
8	WPY311270 Whirlpool Washer TE
9	MAY Y310632
10	PART NOT USED
13	MAY 215075
14	MAY 210932
15	MAY Y305193
16	INSTRUCTION LABEL
17	MAY 303846
20	MAY Y313559
21	WP90767 Whirlpool Screw
22	MAY Y312951
23	W10176519 Whirlpool Leveling Feet
24	WPY314137 Whirlpool Rubber Foot
25	WP62739 Whirlpool Nut
26	MAY Y303361
27	MAY 213077
28	MAY 307124
29	TOP COVER ASSY. (WHT)
