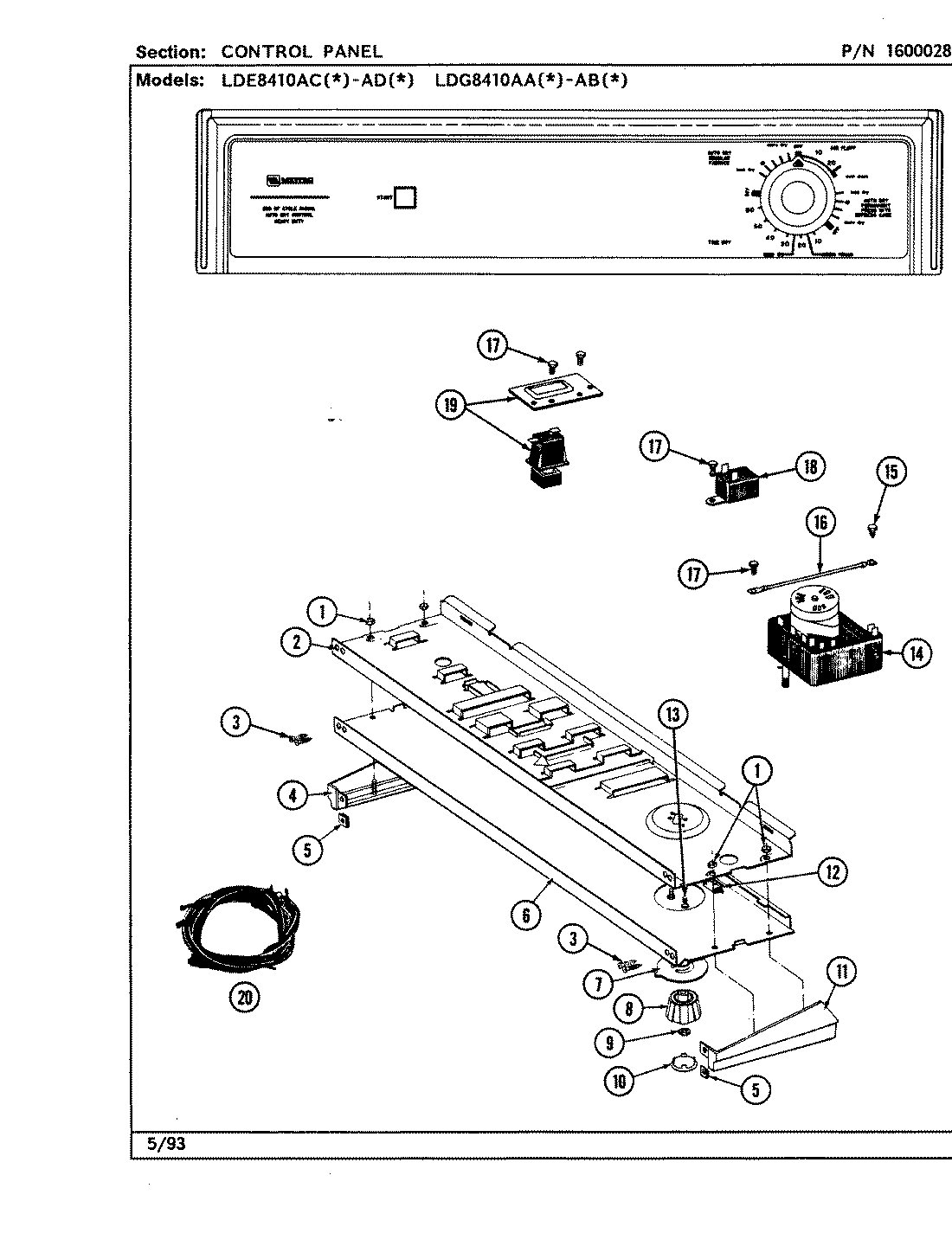

LDE8410ADL 05 – CONTROL PANEL (LDE8410ACL,ACW,ADL,ADW)

LDE8410ADL 05 – CONTROL PANEL (LDE8410ACL,ACW,ADL,ADW)

Written by

in

LDE8410ADL 05 – CONTROL PANEL (LDE8410ACL,ACW,ADL,ADW)

Products

PositionProduct
1MAY 214872
2BACK UP PLATE
3MAY 210932
4MAY 207215
5MAY 214894
6MAY 307951
7MAY 315042
8MAY 315041
9W10155650 Whirlpool Nut
10MAY 215821
11MAY 207216
12MAY 214897
13MAY 315317
14WPY308254 Whirlpool Timer
15WP90767 Whirlpool Screw
16MAY 204807
17WPW10139210 Whirlpool Screw
18WP694419 Whirlpool Buzzer Adjuster
19MAY 308468
21MAY 315235
