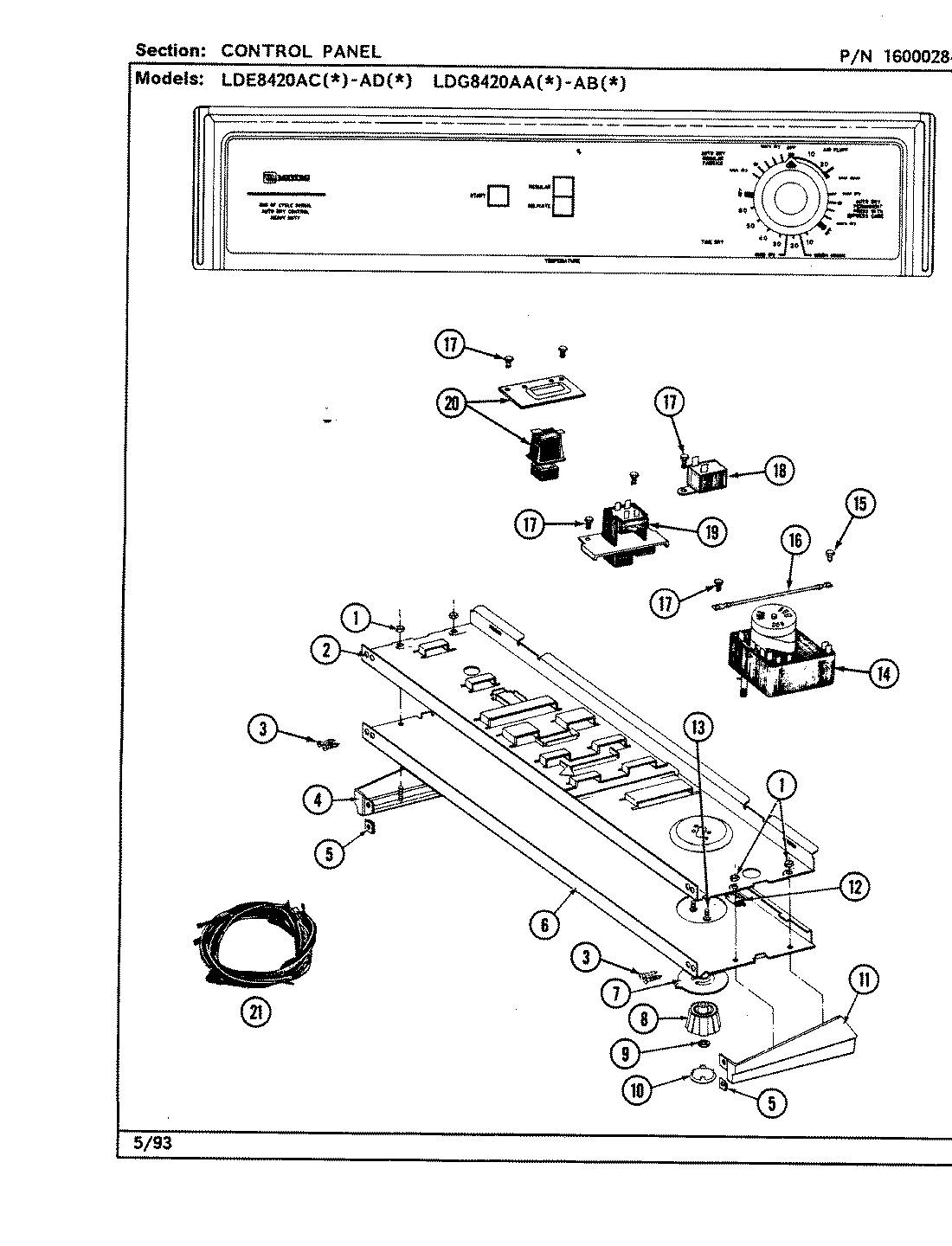

LDE8420ADW 03 – CONTROL PANEL

LDE8420ADW 03 – CONTROL PANEL

Written by

in

LDE8420ADW 03 – CONTROL PANEL

Products

PositionProduct
1MAY 214872
2BACK UP PLATE
3MAY 210932
4MAY 207215
5MAY 214894
6MAY 307906
7MAY 315042
8MAY 315041
9W10155650 Whirlpool Nut
10WPW10133501 Whirlpool Cap
11MAY 207216
12MAY 214897
13MAY 315317
14WPY308254 Whirlpool Timer
15WP90767 Whirlpool Screw
16MAY 204807
17WPW10139210 Whirlpool Screw
18WP694419 Whirlpool Buzzer Adjuster
19MAY 207365
20SWITCH PUSH TO START
21MAY 308327
22MAY 315092
