LDE8424ACL 01 – CABINET-REAR – Aparts

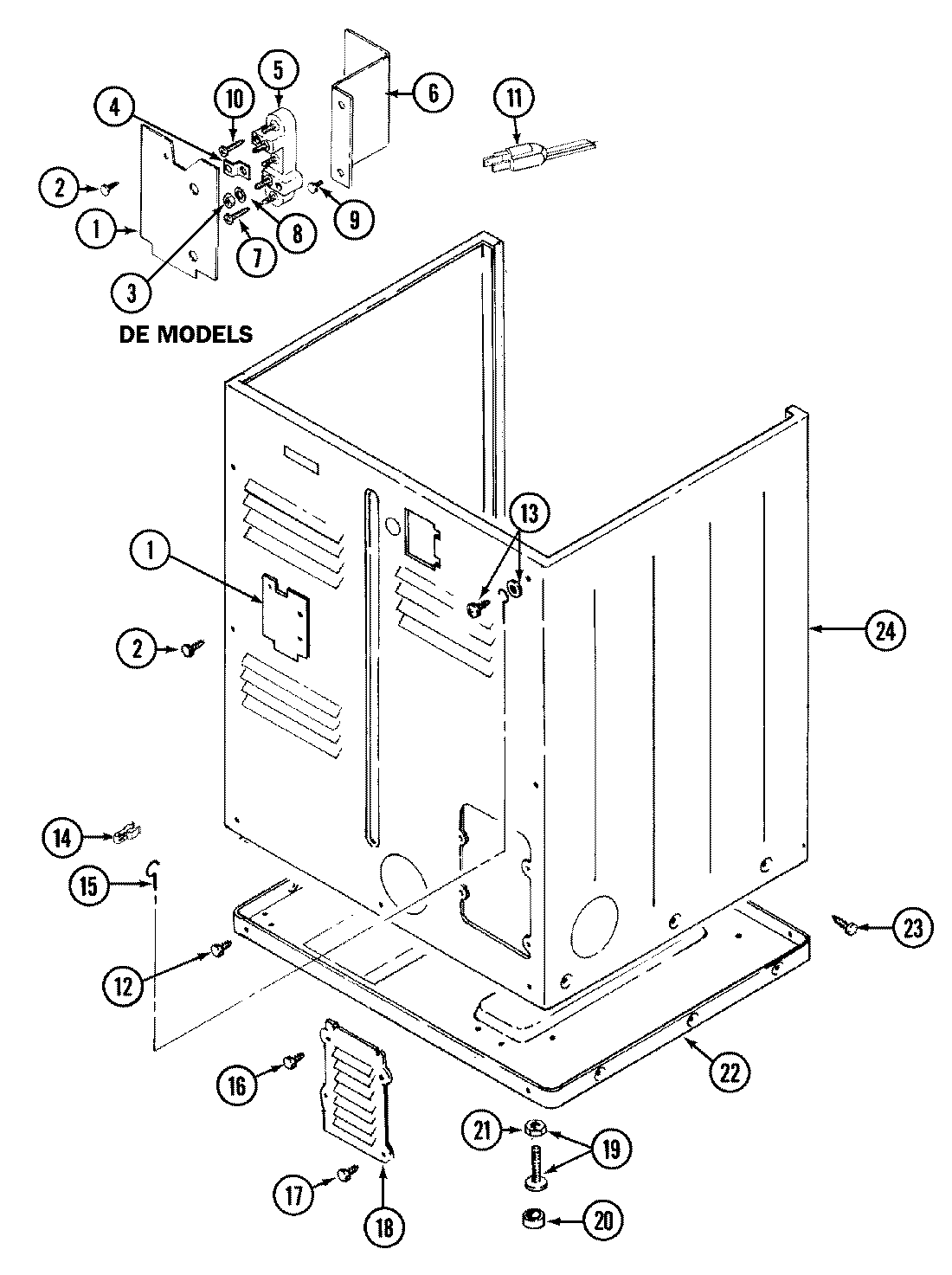

LDE8424ACL 01 – CABINET-REAR

Products

Position	Product
1	MAY Y312905
3	WP112432 Whirlpool Nut Assembly
4	PART NOT USED
5	PART NOT USED
6	PART NOT USED
7	SCREW, No.10-24 X 3/4 INCH-----O
8	WPY311270 Whirlpool Washer TE
10	W10850756 Whirlpool Screw
12	MAY Y313561
12	MAY Y310632
13	MAY 303846
14	MAY 301548
15	MAY 204807
16	MAY Y313559
17	WP90767 Whirlpool Screw
18	MAY Y312951
19	W10176519 Whirlpool Leveling Feet
20	WPY314137 Whirlpool Rubber Foot
21	WP62739 Whirlpool Nut
22	MAY Y303361
23	213007 Whirlpool Screw #12
24	MAY 33001160
