LDE8424ACL 02 – CONTROL PANEL – Aparts

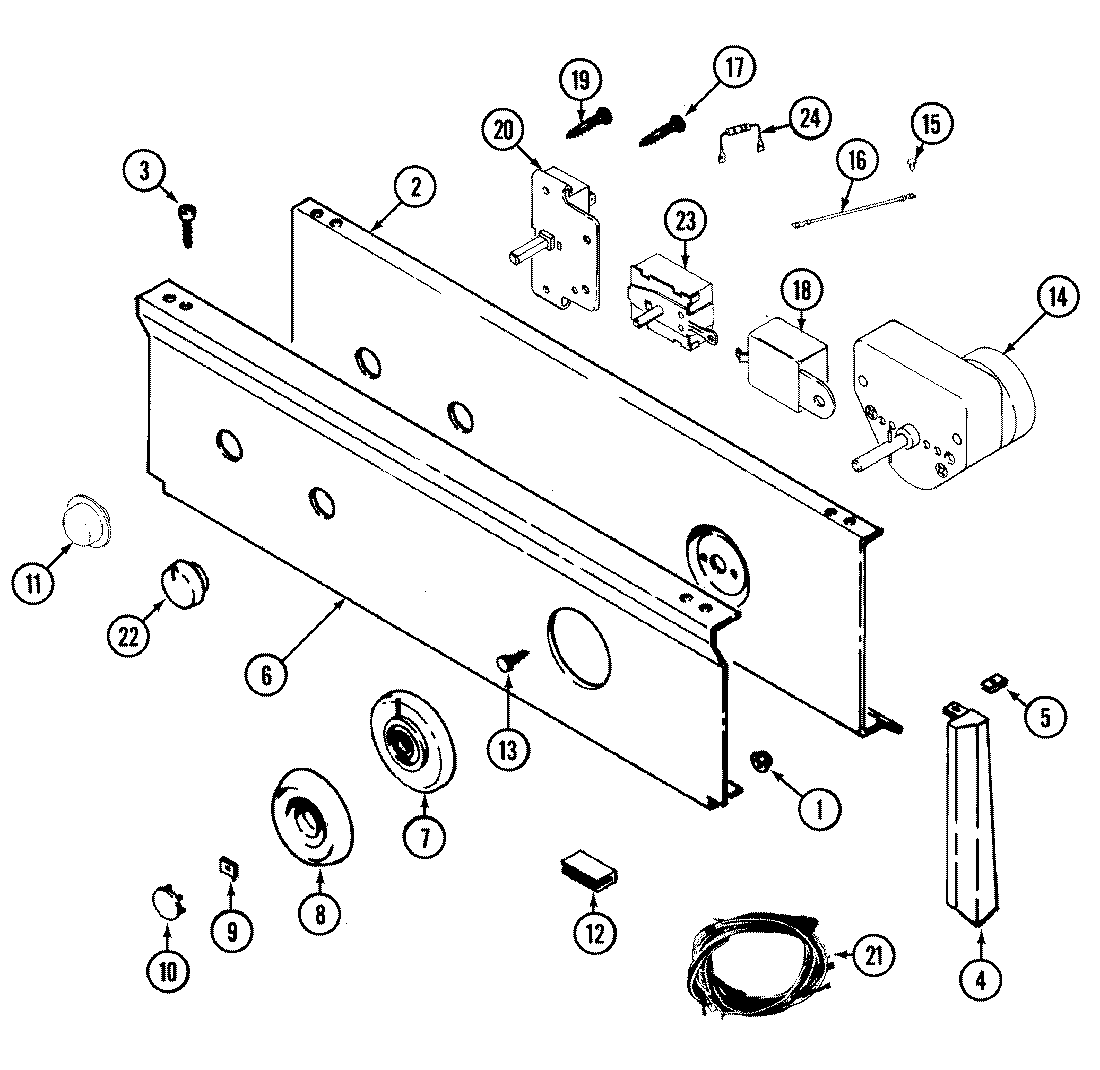

LDE8424ACL 02 – CONTROL PANEL

Products

Position	Product
1	MAY 214872
2	MAY 33001237
3	MAY 314728
4	MAY 22001290
4	MAY 22001288
5	MAY 214894
6	MAY 33001087
7	MAY 33001182
8	MAY 315041
9	W10155650 Whirlpool Nut
10	MAY 216193
11	MAY 33001184
12	MAY 214897
13	MAY 315317
14	WPY308254 Whirlpool Timer
15	MAY 210186
16	MAY 204807
18	MAY Y308205
19	WPW10139210 Whirlpool Screw
20	MAY 33001232
21	MAY 33001341
21	MAY 33001537
21	MAY 33001127
22	MAY 22001267
23	MAY 33001226
24	MAY 33001104
25	MAY 33001256
