LDE8426ACE 02 – CABINET-REAR – Aparts

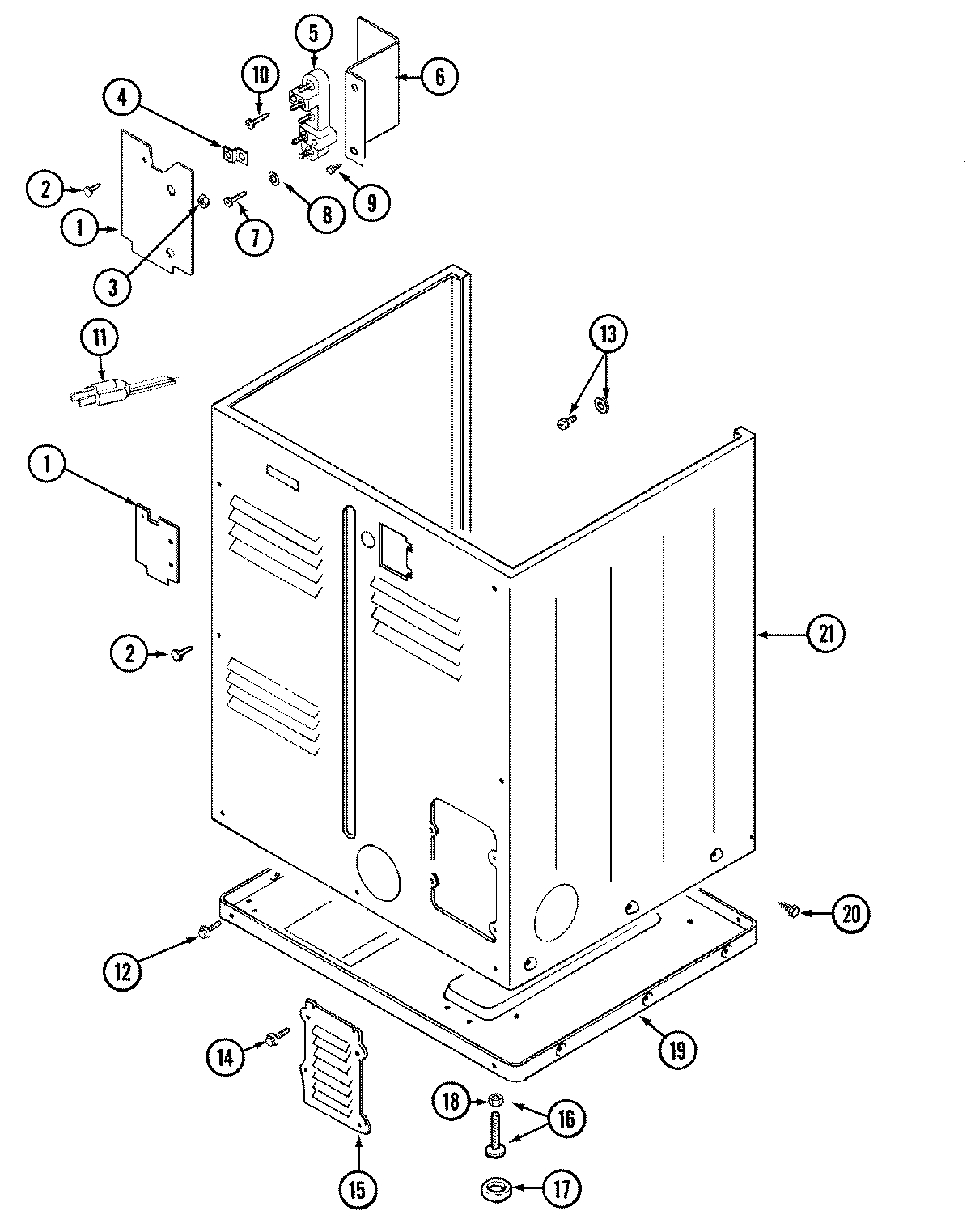

LDE8426ACE 02 – CABINET-REAR

Products

Position	Product
1	MAY Y312905
3	WP112432 Whirlpool Nut Assembly
4	PART NOT USED
5	W11705611 Whirlpool Block Ter
6	PART NOT USED
7	SCREW, No.10-24 X 3/4 INCH-----O
8	WPY311270 Whirlpool Washer TE
10	W10850756 Whirlpool Screw
12	MAY Y313561
12	MAY Y310632
13	MAY 303846
14	MAY 216423
15	MAY Y312951
16	W10176519 Whirlpool Leveling Feet
17	WPY314137 Whirlpool Rubber Foot
18	WP62739 Whirlpool Nut
19	MAY Y303361
20	213007 Whirlpool Screw #12
21	MAY 33001159
