LDE8604ADE 02 – CABINET-REAR – Aparts

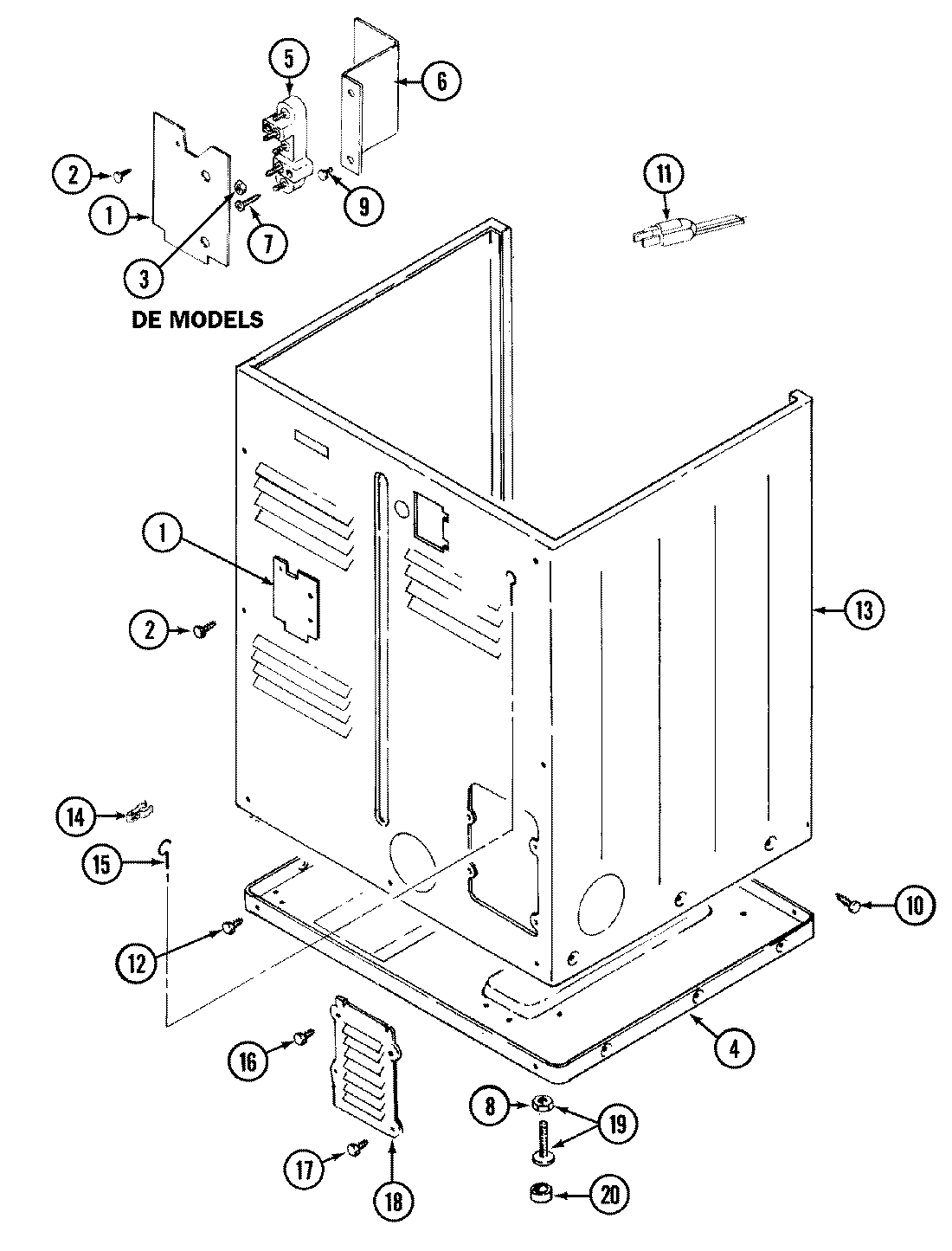

LDE8604ADE 02 – CABINET-REAR

Products

Position	Product
1	MAY Y312905
3	WP112432 Whirlpool Nut Assembly
4	MAY Y303361
5	PART NOT USED
6	PART NOT USED
7	SCREW, No.10-24 X 3/4 INCH-----O
8	WP62739 Whirlpool Nut
10	213007 Whirlpool Screw #12
11	MAY 305168
11	MAY 33001425
12	MAY Y313561
12	MAY Y310632
13	MAY 33001159
14	MAY 301548
15	MAY 204807
16	MAY Y313559
17	WP90767 Whirlpool Screw
18	MAY Y312951
19	W10176519 Whirlpool Leveling Feet
20	WPY314137 Whirlpool Rubber Foot
