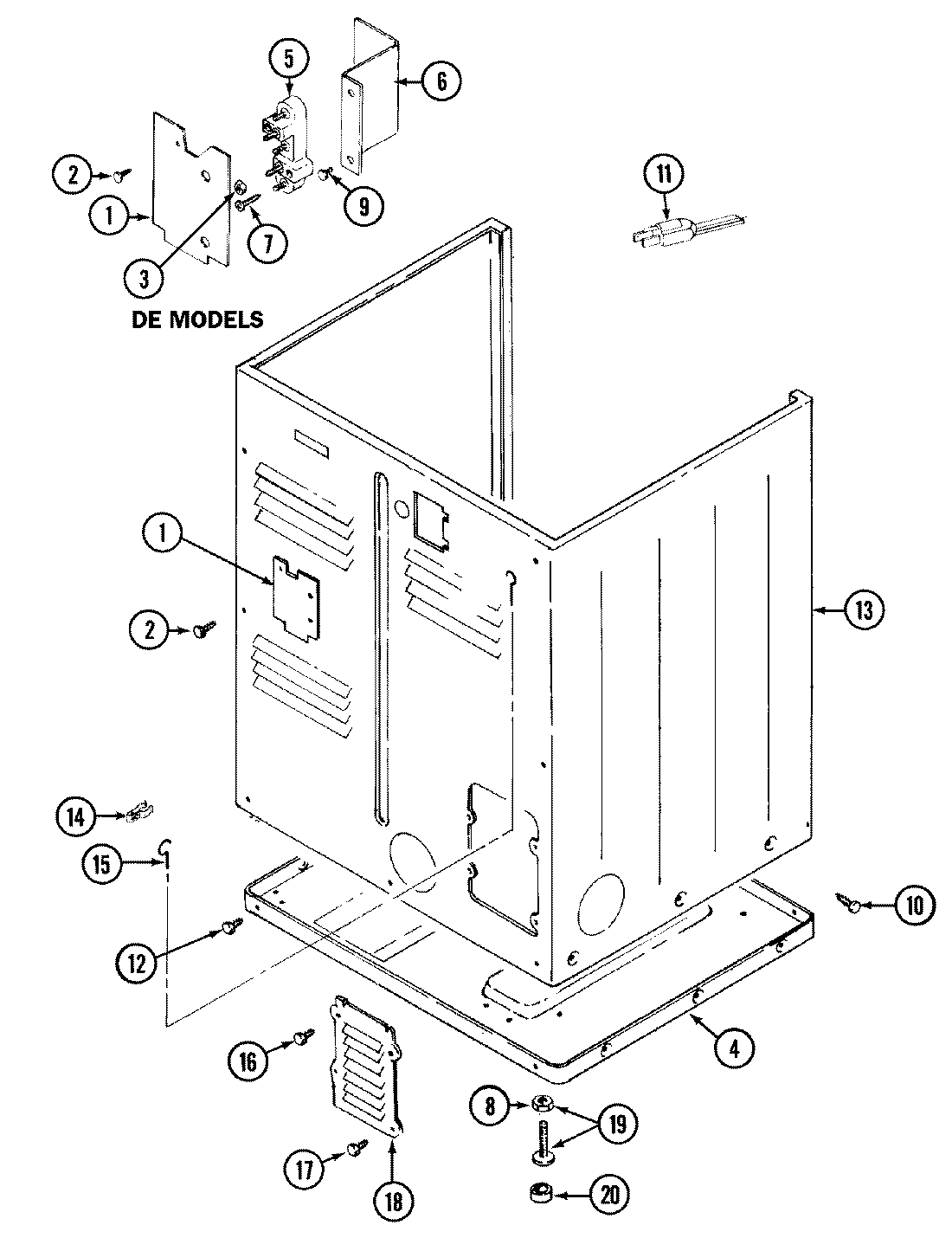

LDE8604ADM 02 – CABINET (REAR LDE8604ADM)

LDE8604ADM 02 – CABINET (REAR LDE8604ADM)

Written by

in

LDE8604ADM 02 – CABINET (REAR LDE8604ADM)

Products

PositionProduct
1MAY Y312905
3WP112432 Whirlpool Nut Assembly
4MAY Y303361
5PART NOT USED
6PART NOT USED
7SCREW, No.10-24 X 3/4 INCH—–O
8WP62739 Whirlpool Nut
10213007 Whirlpool Screw #12
11MAY 305168
11MAY 33001425
12MAY Y313561
12MAY Y310632
13MAY 33001160
14MAY 301548
15MAY 204807
16MAY Y313559
17WP90767 Whirlpool Screw
18MAY Y312951
19W10176519 Whirlpool Leveling Feet
20WPY314137 Whirlpool Rubber Foot
