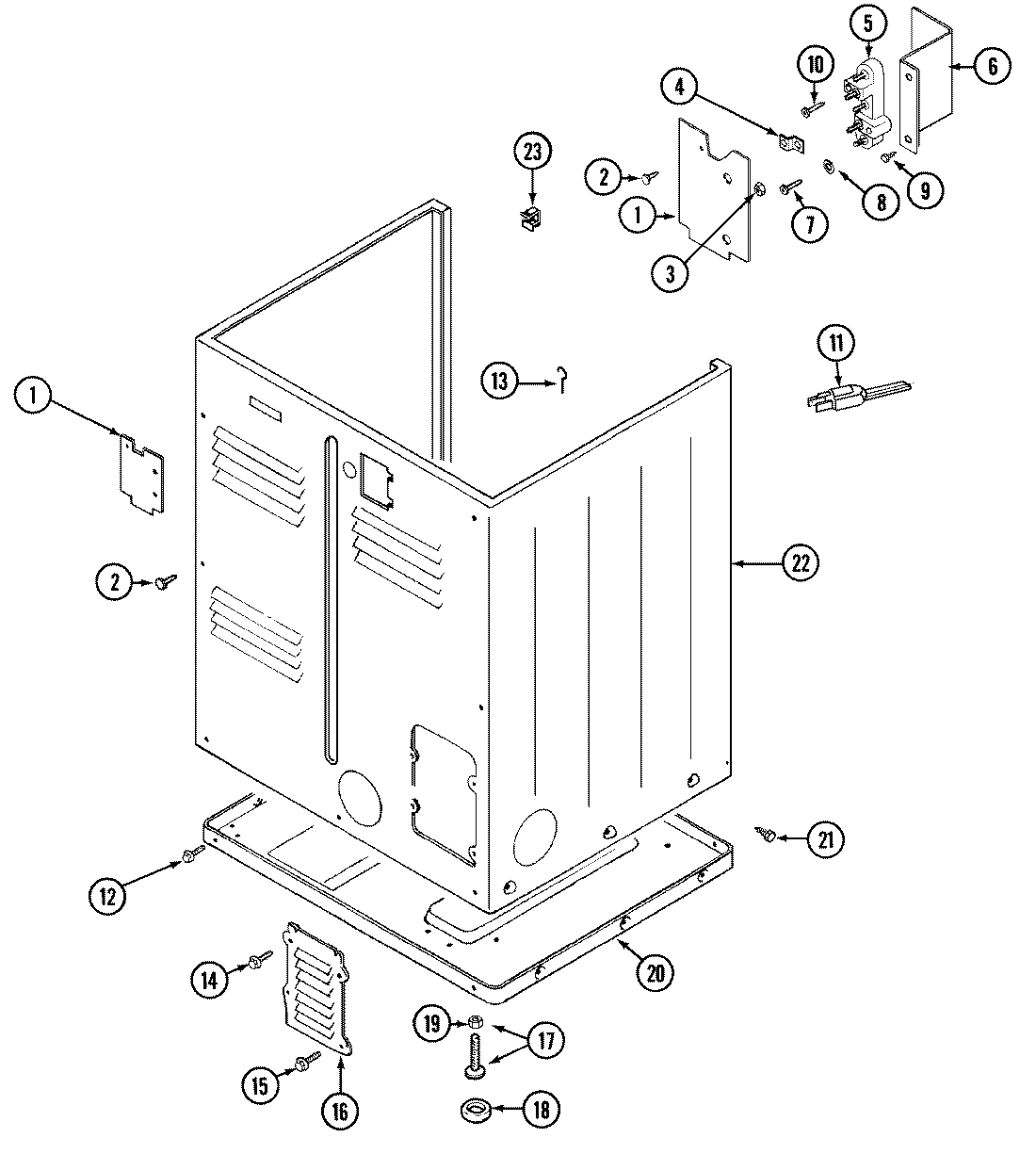

LDE9334ADE 02 – CABINET (REAR)

LDE9334ADE 02 – CABINET (REAR)

Written by

in

LDE9334ADE 02 – CABINET (REAR)

Products

PositionProduct
1MAY Y312905
3WP112432 Whirlpool Nut Assembly
4PART NOT USED
5PART NOT USED
6PART NOT USED
7SCREW, No.10-24 X 3/4 INCH—–O
8WPY311270 Whirlpool Washer TE
8MAY 910181
10W10850756 Whirlpool Screw
11MAY 33001425
11MAY 305168
12MAY Y310632
12MAY Y313561
13MAY 204807
14MAY Y313559
15WP90767 Whirlpool Screw
16MAY Y312951
17W10176519 Whirlpool Leveling Feet
18WPY314137 Whirlpool Rubber Foot
19WP62739 Whirlpool Nut
20MAY Y303361
21213007 Whirlpool Screw #12
22MAY 33001159
23MAY Y310376
