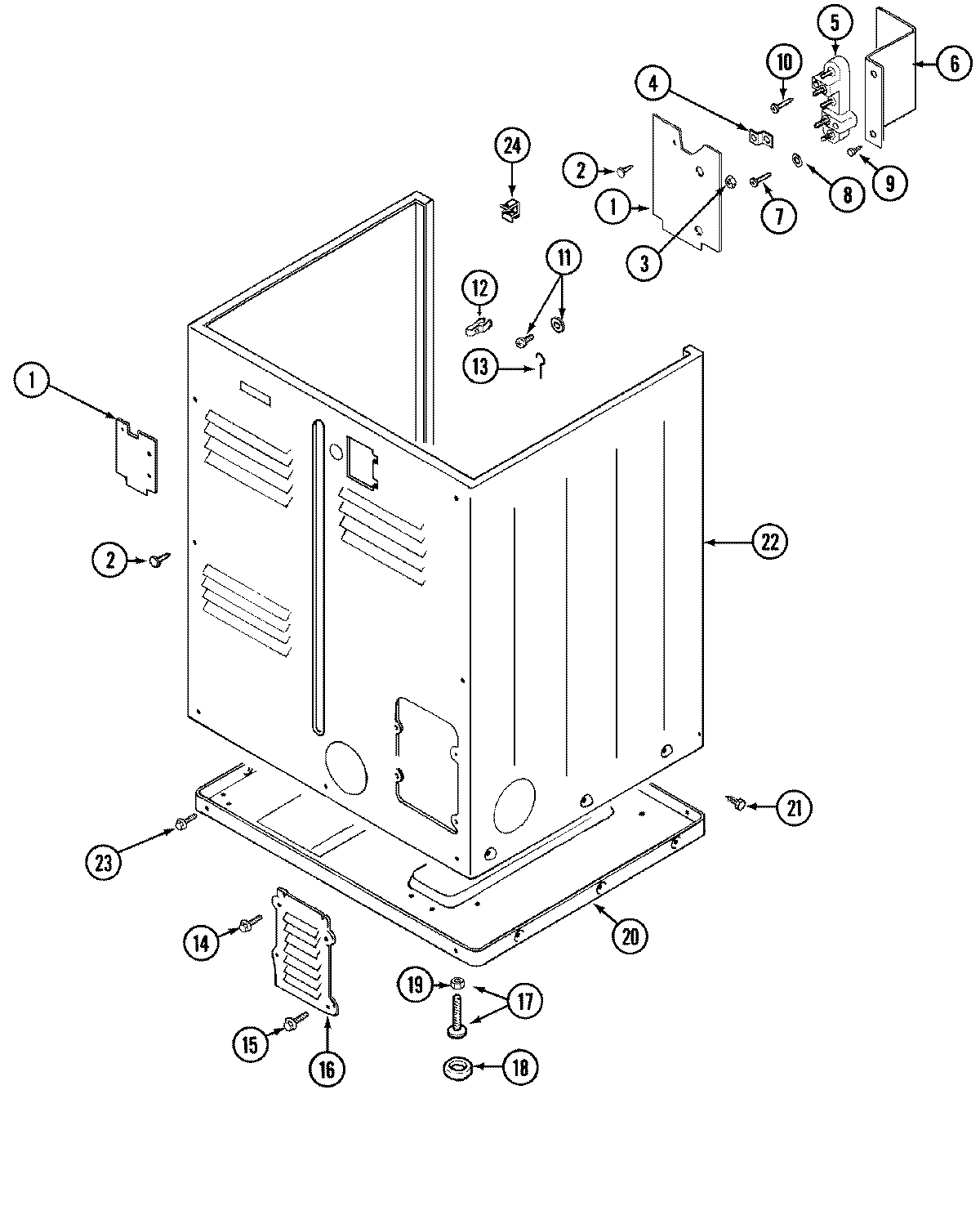

LDE9804AEE 02 – CABINET (REAR)

LDE9804AEE 02 – CABINET (REAR)

Written by

in

LDE9804AEE 02 – CABINET (REAR)

Products

PositionProduct
1MAY Y312905
3WP112432 Whirlpool Nut Assembly
4PART NOT USED
5PART NOT USED
6PART NOT USED
7SCREW, No.10-24 X 3/4 INCH—–O
8WPY311270 Whirlpool Washer TE
10W10850756 Whirlpool Screw
11MAY 303846
12MAY 301548
13MAY 204807
14MAY Y313559
15WP90767 Whirlpool Screw
16MAY Y312951
17W10176519 Whirlpool Leveling Feet
18WPY314137 Whirlpool Rubber Foot
19WP62739 Whirlpool Nut
20MAY Y303361
21213007 Whirlpool Screw #12
22MAY 33001159
23MAY Y310632
23MAY Y313561
