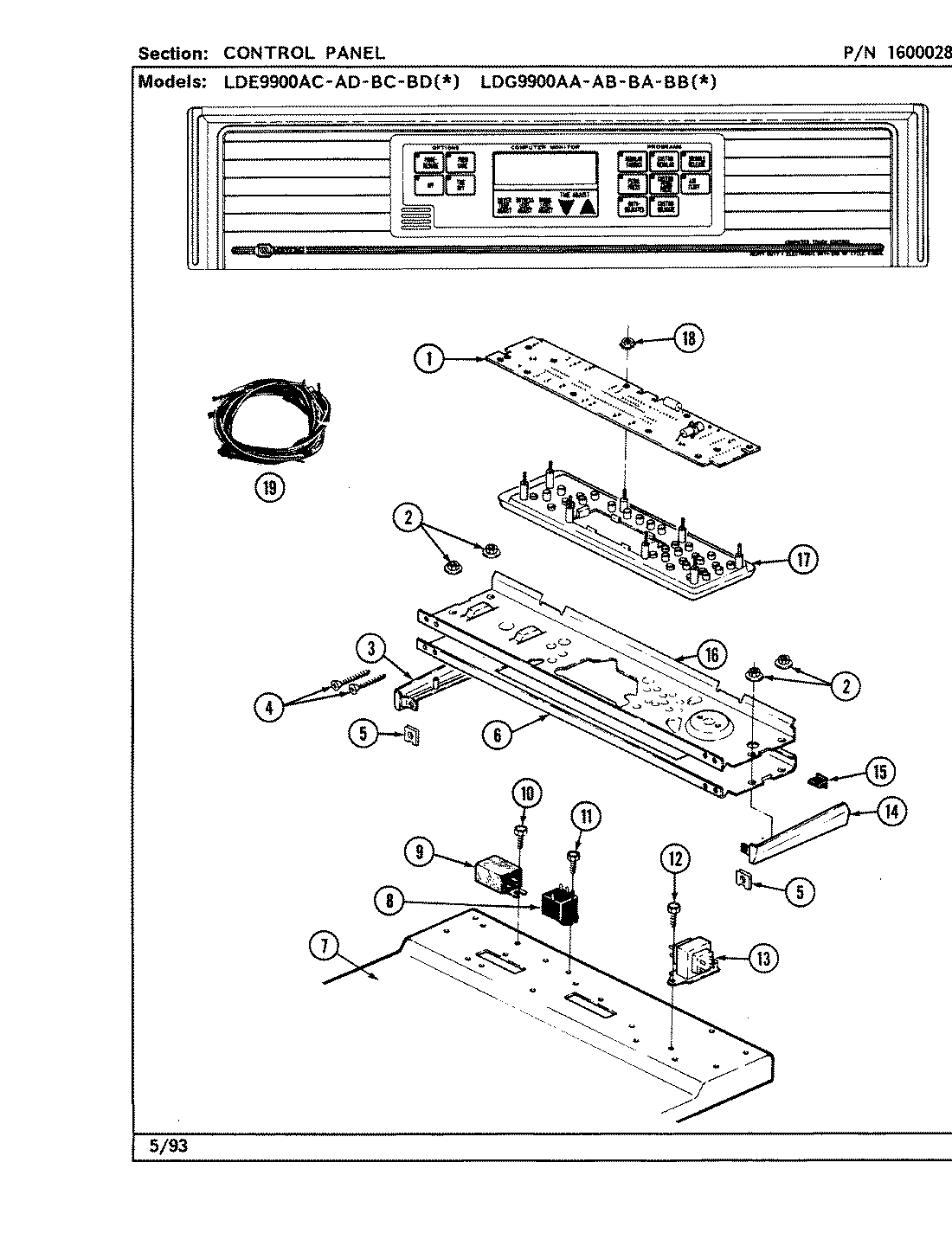

LDE9900ACW 03 – CONTROL PANEL

LDE9900ACW 03 – CONTROL PANEL

Written by

in

LDE9900ACW 03 – CONTROL PANEL

Products

PositionProduct
1MAY 307218
2MAY 214872
3MAY 207215
4MAY 210932
5MAY 214894
6CONTROL PANEL
7MAY 307104M
7TOP COVER ASSY. (WHT)
7MAY 307104L
8MAY 206824
9MAY 306199
10WP3177991 Whirlpool Screw
12WP90767 Whirlpool Screw
12MAY Y313559
13MAY 207766
14MAY 207216
15MAY 214897
16BACKUP PLATE
17MAY 307214
18M0282005 Whirlpool Nut
19HARNESS, WIRE
