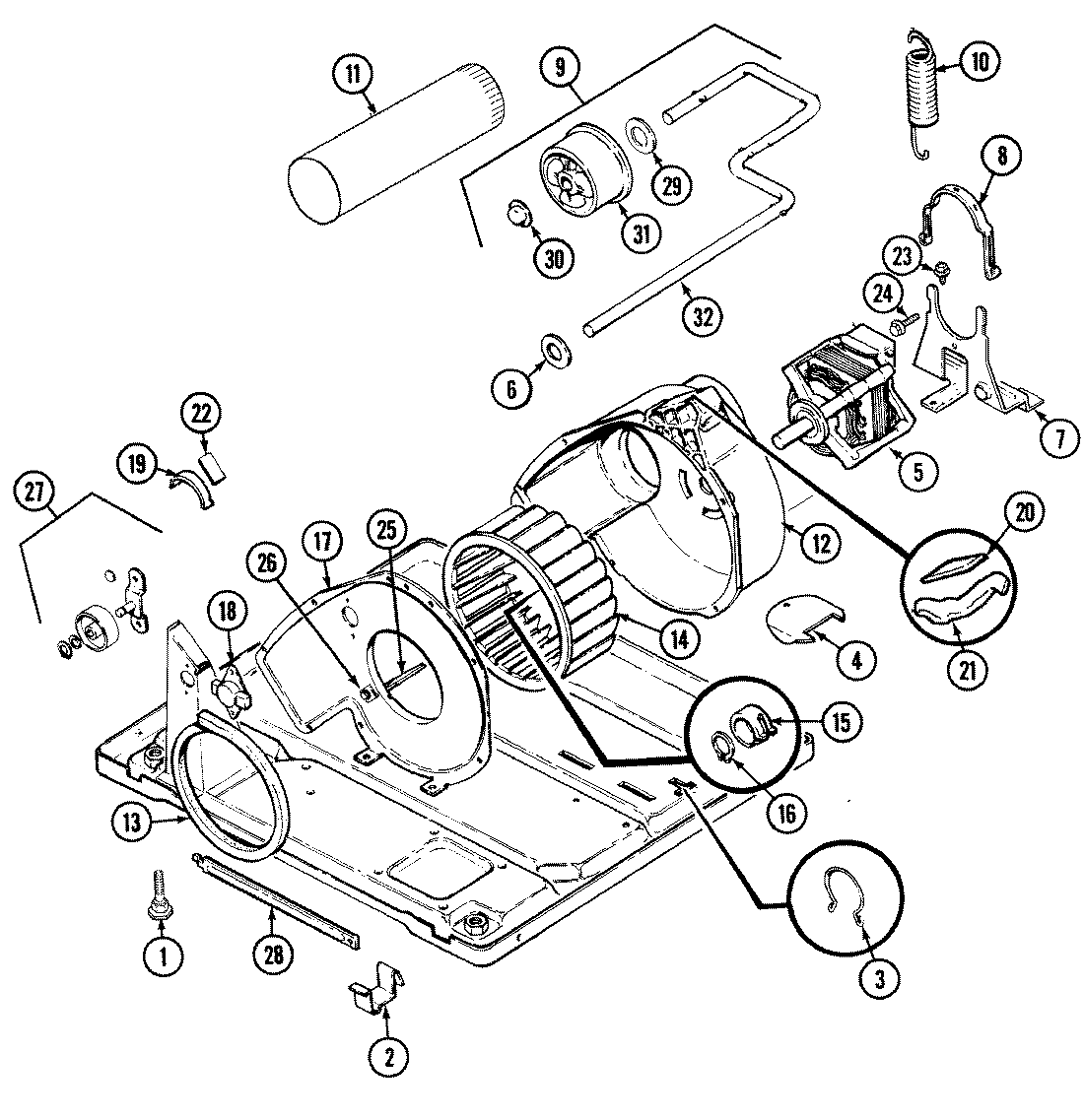

LDEA100BCM 05 – MOTOR & DRIVE (BCx)

LDEA100BCM 05 – MOTOR & DRIVE (BCx)

Products

PositionProduct
1W11117769 Whirlpool Refrigerator Leveler
2WP53-0120 Whirlpool Clip
3MAY 25-7027
4MAY 53-1921
4MAY 25-7741
5W10410996 Whirlpool Dryer Drive Motor
6MAY 53-0693
7MAY 25-7811
7MAY 53-1932
8WP660658 Whirlpool Clamp
1031001465 Whirlpool Idler Spring
11MAY 53-0134
12MAY 53-1801
1312001324 Whirlpool Collector Duct
1431001043 Whirlpool Blower Wheel
15MAY 25-7823
16MAY 25-7855
17MAY 53-1934
17MAY 25-7807
18MAY 25-2134
18WP53-1107 Whirlpool Thermostat
19WP31001470 Whirlpool Glide Assembly
19LA-1006 Whirlpool Dryer Right Hand Glide Kit
20WP31001356 Whirlpool Glide Pad
21WP31001469 Whirlpool Glide Assembly
22MAY 53-1684
23MAY 53-0645
24MAY 53-0644
24SCREW
25MAY 53-1026
26MAY 25-3457
27MAY LA-1008
2712002126 Whirlpool Refrigerator Reinforcement Brace Glide
28MAY 53-1625
29MAY 25-7815
30MAY 25-7957
31MAY 53-1628
32WP53-2287 Whirlpool Idler Assembly
33MAY 25-7699
34MAY 25-7674
