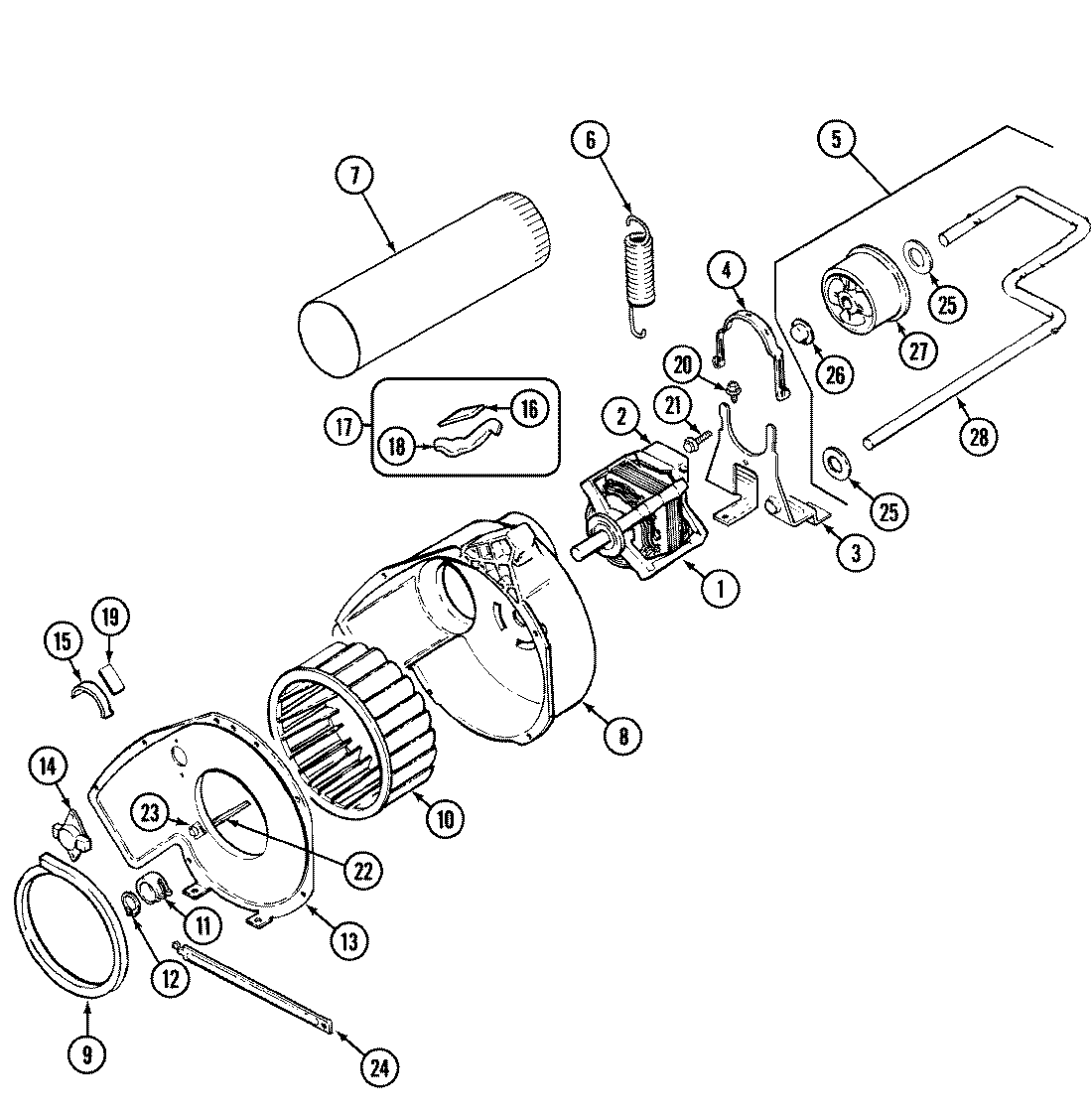

LDEA300AGW 05 – MOTOR & DRIVE

Products

Position	Product
1	MAY 31001017
2	MAY 53-0693
3	SCREW
3	MAY 53-1932
4	WP660658 Whirlpool Clamp
6	31001465 Whirlpool Idler Spring
7	MAY 53-0134
8	MAY 53-1801
9	12001324 Whirlpool Collector Duct
10	31001043 Whirlpool Blower Wheel
10	MAY 53-0106
11	MAY 25-7823
12	MAY 25-7855
13	MAY 53-1933
13	MAY 25-7435
14	WP53-1107 Whirlpool Thermostat
14	MAY 53-0170
14	MAY 25-2134
15	WP31001470 Whirlpool Glide Assembly
16	WP31001356 Whirlpool Glide Pad
17	LA-1006 Whirlpool Dryer Right Hand Glide Kit
18	WP31001469 Whirlpool Glide Assembly
19	MAY 53-1684
20	MAY 25-7963
21	MAY 25-7674
22	MAY 53-1026
23	MAY 25-3457
24	MAY 53-1625
29	MAY 25-7815
30	MAY 25-7957
31	MAY 53-1628
32	WP53-2287 Whirlpool Idler Assembly
