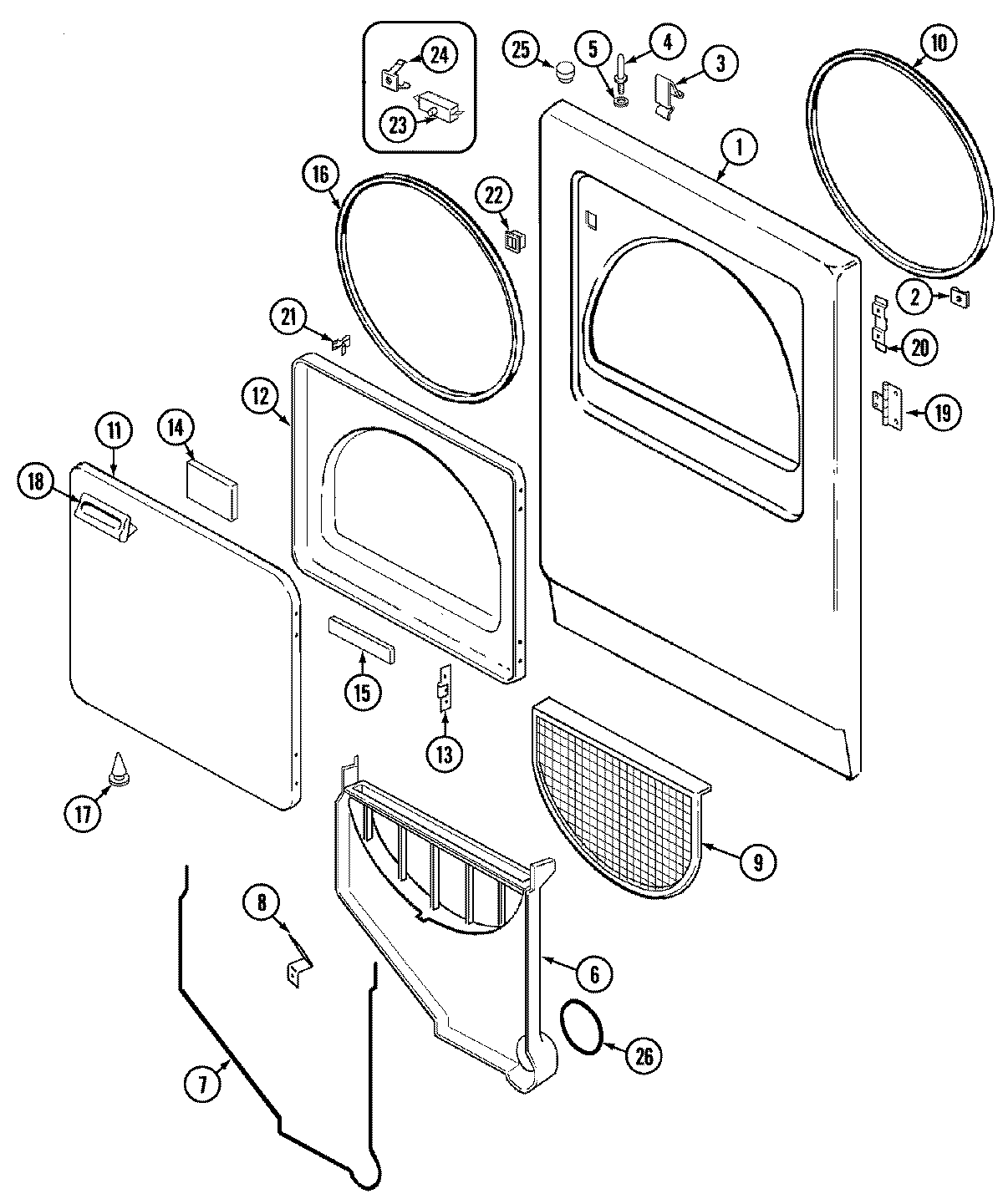

LDEA500ACE 03 – DOOR (LDEA500ACE/ACM)

Products

Position	Product
1	MAY 53-0726
2	WP489478 Whirlpool Refrigerator Screw
2	MAY 25-7817
3	WP25-7220 Whirlpool Cabinet Clip
4	MAY 53-0643
5	MAY 25-0224
5	MAY 53-0200
6	MAY 53-1299
7	MAY 53-0204
8	MAY 53-0123
9	WP53-0918 Whirlpool Lint Filter
10	WP31001747 Whirlpool Seal Assembly
11	MAY 53-0154
12	MAY 53-0912
13	MAY 53-0119
14	MAY 53-1490
15	MAY 53-1491
16	MAY 25-7770
16	WP31001529 Whirlpool Door Seal
17	MAY 25-7889
18	MAY 53-0928
18	MAY 25-7810
18	MAY 53-0927
19	MAY 53-1492
19	W10756178 Whirlpool Screw
20	MAY 53-0121
22	LA-1003 Whirlpool Dryer Door Catch and Metal Strike
22	WP489483 Whirlpool Screw
23	MAY LA-1005
23	MAY 53-0147
24	MAY 63-5990
25	MAY 33-2653
26	12001324 Whirlpool Collector Duct
