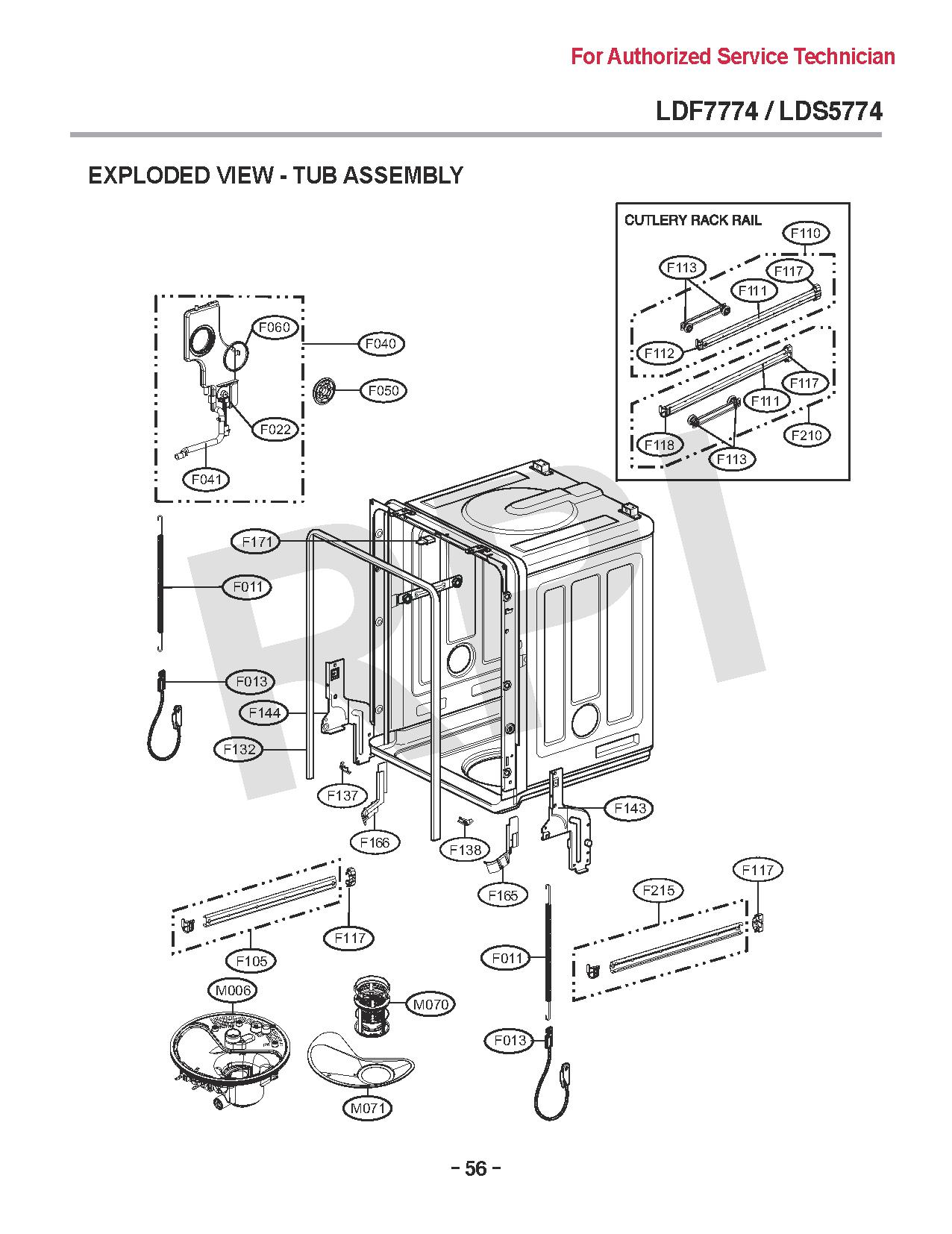

LDF7774BD 2

Products

Position	Product
F011	SPRING-HINGE
F137	MCK67127201 LG Cover Protect
F138	MCK67127202 LG Protective Cover
F143	4775ED3004A LG Hinge Assembly
F144	4775ED3003A LG Hinge Assembly
F165	3550DD3003A LG Protective Cover
F166	3550DD3004A LG Protect Cover
F171	4026DD3001A LG Dishwasher Door Lock
F210	4581DD3001B LG Roller Assembly
F215	5219DD2001A LG Dishwasher Rail Assembly
M006	AJH72949004 LG Dishwasher Sump (Circulation Pump) and Motor Assembly
M070	ADQ73234005 LG Dishwasher Mesh Filter Assembly
F132	PACKING
F118	4620ED3003A LG Dishwasher Roller Stopper
F117	4620ED3001C LG Dishwasher Roller Stopper
F013	4933DD3001B LG Dishwasher Door Hinge Cable Assembly
F022	6501DD2001A LG Dishwasher Flow Sensor Assembly
F040	4975ED1005G LG Dishwasher Guide Assembly
F041	5214DD3001A LG Dishwasher Inlet Hose
F050	4020FD3641C LG Dishwasher Nut Drawing
F060	4986DD3001A LG Dishwasher Fill Funnel Gasket
F105	5219DD2002A LG Dishwasher Rail Support Assembly with Stopper
F110	4581DD3001A LG Roller Assembly
F111	5218ED3001A LG Dishwasher Rail
F112	4620ED3002A LG Dishwasher Roller Stopper
F113	4580ED4002A LG Roller
M071	MDJ62185801 LG Filter
