LDF7774BD 6

LDF7774BD 6

Written by

in

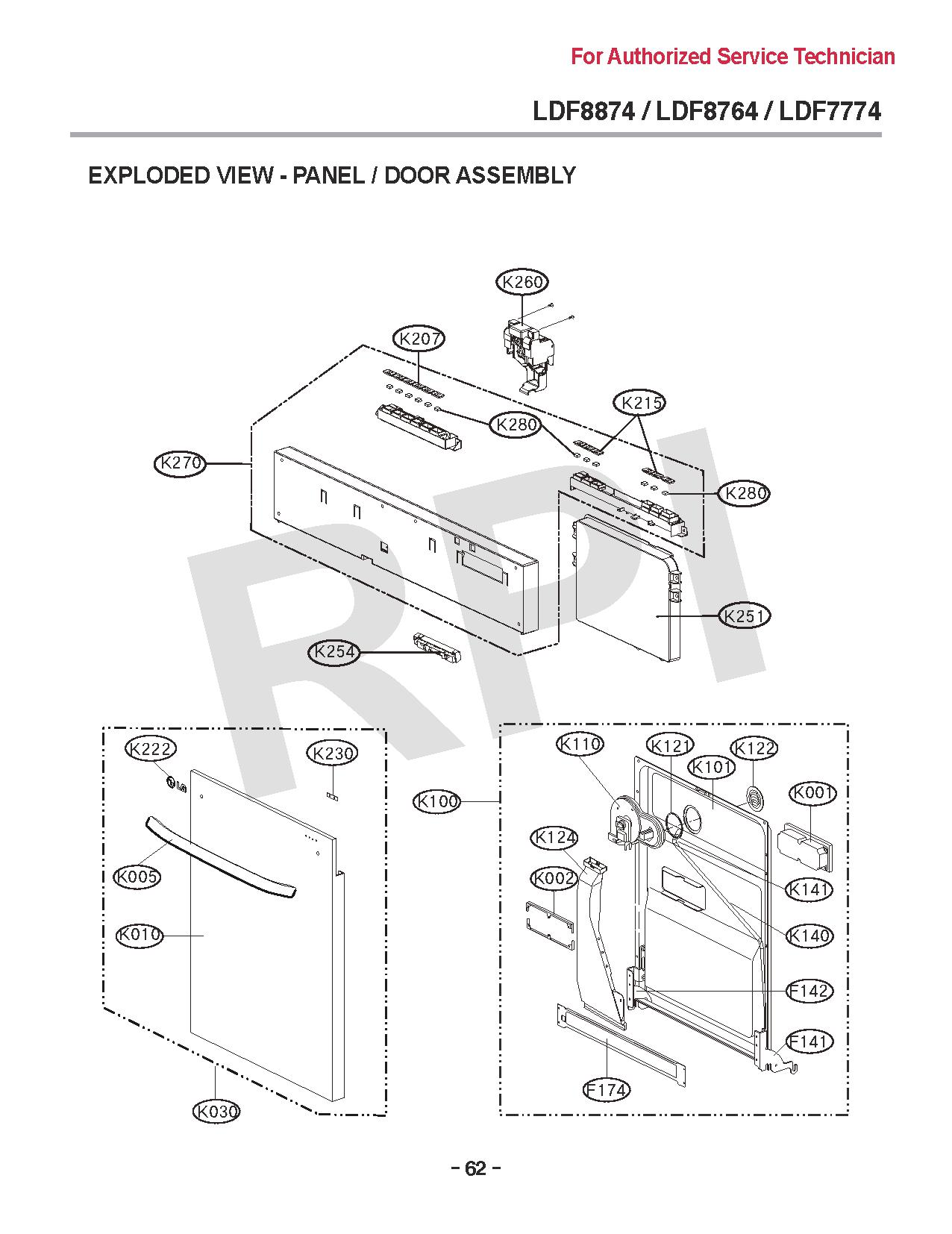

LDF7774BD 6

Products

PositionProduct
F141AEH73796902 LG Hinge Assembly
K1405210FA3427Y LG Dishwasher Switch Tube
K1414861FR3068M LG Clamp
K207MCK40133201 LG Guide Cover
K215MCK40228201 LG Guide Cover
K222MFT62466403 LG Dishwasher PET Nameplate
K230AJX32598502 LG Window Assembly
K251EBR79686304 LG Dishwasher Main PCB Assembly
K254EBR33469706 LG Front PCB Assembly
K2604027ED3002J LG Dishwasher Door Lock
K270AGM74051507 LG Assembly Parts
K124MJZ61841503 LG Dishwasher Vent
K1223550ED3011B LG Dishwasher Blower Cover
K1214986DD3003A LG Dishwasher Blower Gasket
F142AEH73796901 LG Hinge Assembly
F1744810DD1001A LG Hinge Bracket
K001MCU61861001 LG Dishwasher Detergent Dispenser Assembly
K002ABA74108701 LG Dishwasher Bracket Assembly
K005AED74713001 LG Handle Assembly
K010AGM75429801 LG Dishwasher Parts Assembly
K030ACQ85830207 LG Front Cover Assembly
K1004937DD1001M LG Door Liner Assembly
K101AGM34891603 LG Parts Assembly
K110ABT35083801 LG Dishwasher Vent Fan Motor and Casing Assembly
K280ADX73770601 LG Gasket Assembly
