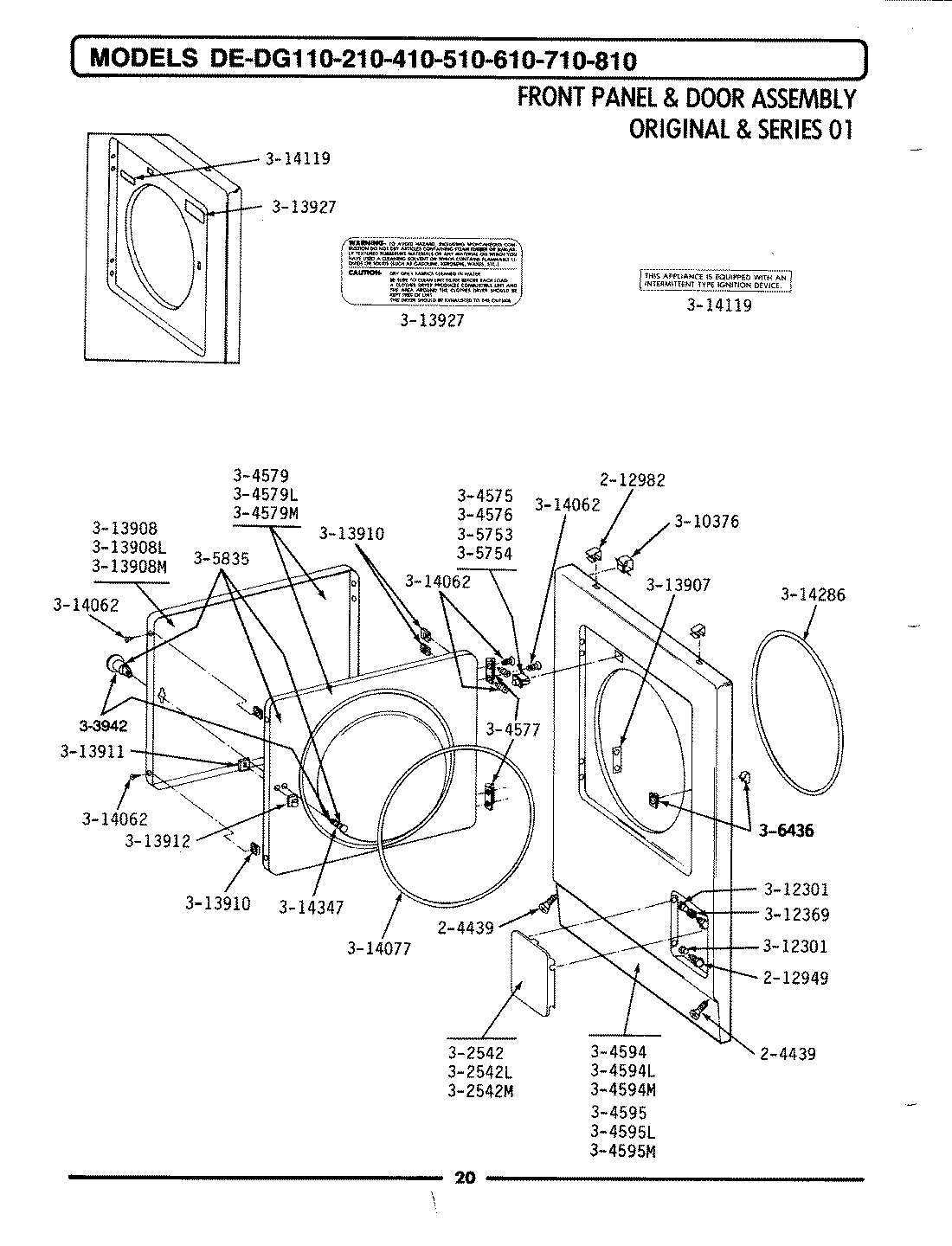

LDG110 02 – FRONT PANEL & DOOR ASSEMBLY

Products

Position	Product
1	SCREW & FSTNER ASSY (FT. PNL)
2	SCREW, BUSHINGS
3	MAY 212982
5	MAY 302542L
7	W10169313 Whirlpool Door Switch Kit
9	MAY Y304577
10	306436 Whirlpool Washer Dryer Door Catch and Plastic Strike
12	MAY 304579L
15	MAY 304594L
22	MAY 305835
23	MAY 303942
24	MAY Y310376
25	BUSHING FOR ACCESS STUD
26	SLEEVE, ACCESS DOOR RUBBER
27	MAY Y313907
29	MAY 313908L
31	CLIP, DOOR LINER
32	MAY Y313911
33	MAY Y313912
34	MAY Y313927
36	MAY 314077
37	MAY 314119
39	WP400021-1 Whirlpool Screw
