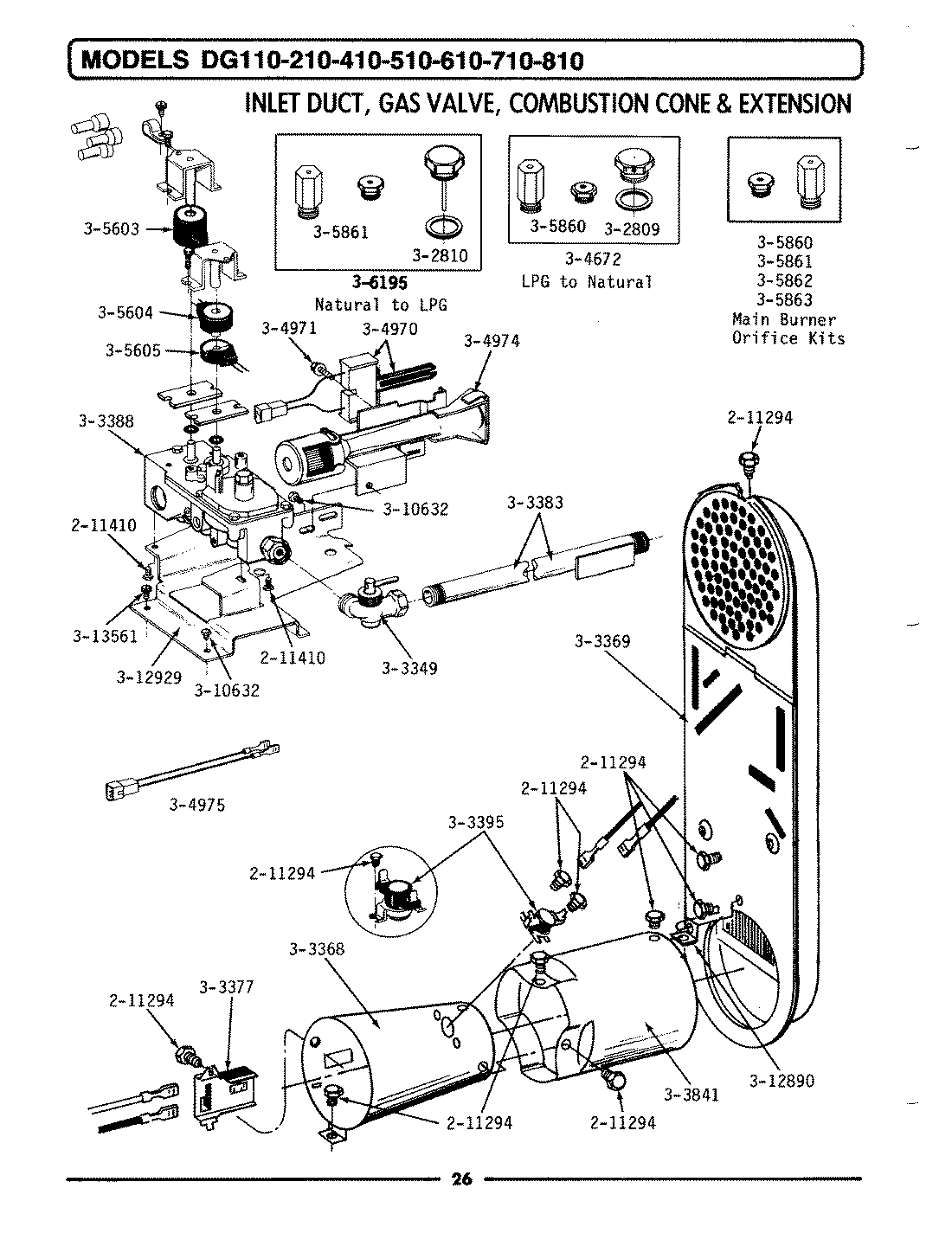

LDG110 04 – INLET DUCT, GAS VALVE, CONE & EXTENSION

Products

Position	Product
1	WP90767 Whirlpool Screw
2	MAY 211410
3	SCREW ASSEMBLY – LEAK LIMIT
4	MAY 302810
5	MAY Y303349
6	MAY Y303368
7	MAY Y303369
8	WP338906 Whirlpool Dryer Gas Sensor
9	MAY Y303383
10	MAY W10116794
11	WP303395 Whirlpool Thermostat
12	CONVERSION KIT (NAT.TO LP)
13	MAY Y303841
14	MAY Y304672
15	4391996 Whirlpool Dryer Flat Igniter
16	MAY 304971
17	MAY 304974
18	MAY 304975
19	MAY 305603
20	MAY 305604
21	WP305605 Whirlpool Coil Assembly
22	MAY 305860
23	MAY 305861
24	MAY 305862
25	MAY 305863
26	MAY Y310632
27	MAY Y312890
28	MAY 312929
29	MAY Y313561
