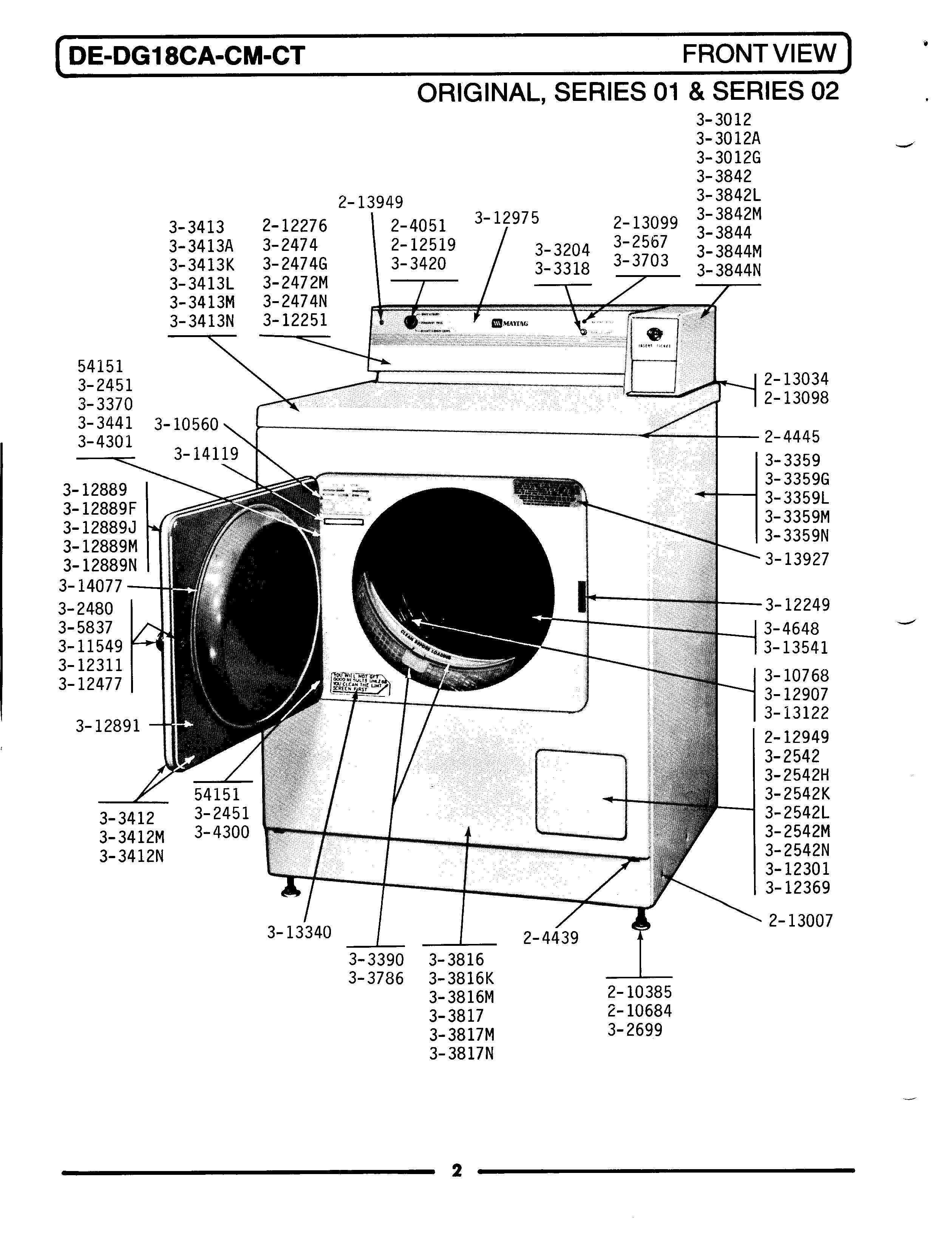

LDG18CT 01 – FRONT VIEW

Products

Position	Product
002	MAY 204051
003	SCREW & FSTNER ASSY (FT. PNL)
004	MAY 204445
005	WP210385 Whirlpool Lock Nut
006	WP210684 Whirlpool Dishwasher Leveling Leg Pad
007	MAY 212276
008	MAY 212519
009	SCREW, BUSHINGS
010	213007 Whirlpool Screw #12
012	MAY 213099
013	WP355214 Whirlpool Screw
022	LEG, ADJUSTABLE (W/NUT)—S
023	MAY Y303318
027	MAY Y303370
028	MAY Y303390
034	MAY Y303420
035	MAY Y303441
036	MAY Y303703
037	MAY Y303786
047	MAY Y304648
049	MAY 310560
056	SLEEVE, ACCESS DOOR RUBBER
060	MAY Y312891
061	MAY Y312907
063	MAY 313122
064	LABEL, LINT SCREEN INSTR.
065	MAY Y313541
066	MAY Y313927
067	MAY 314077
068	DOWEL PIN FOR HANDLE
