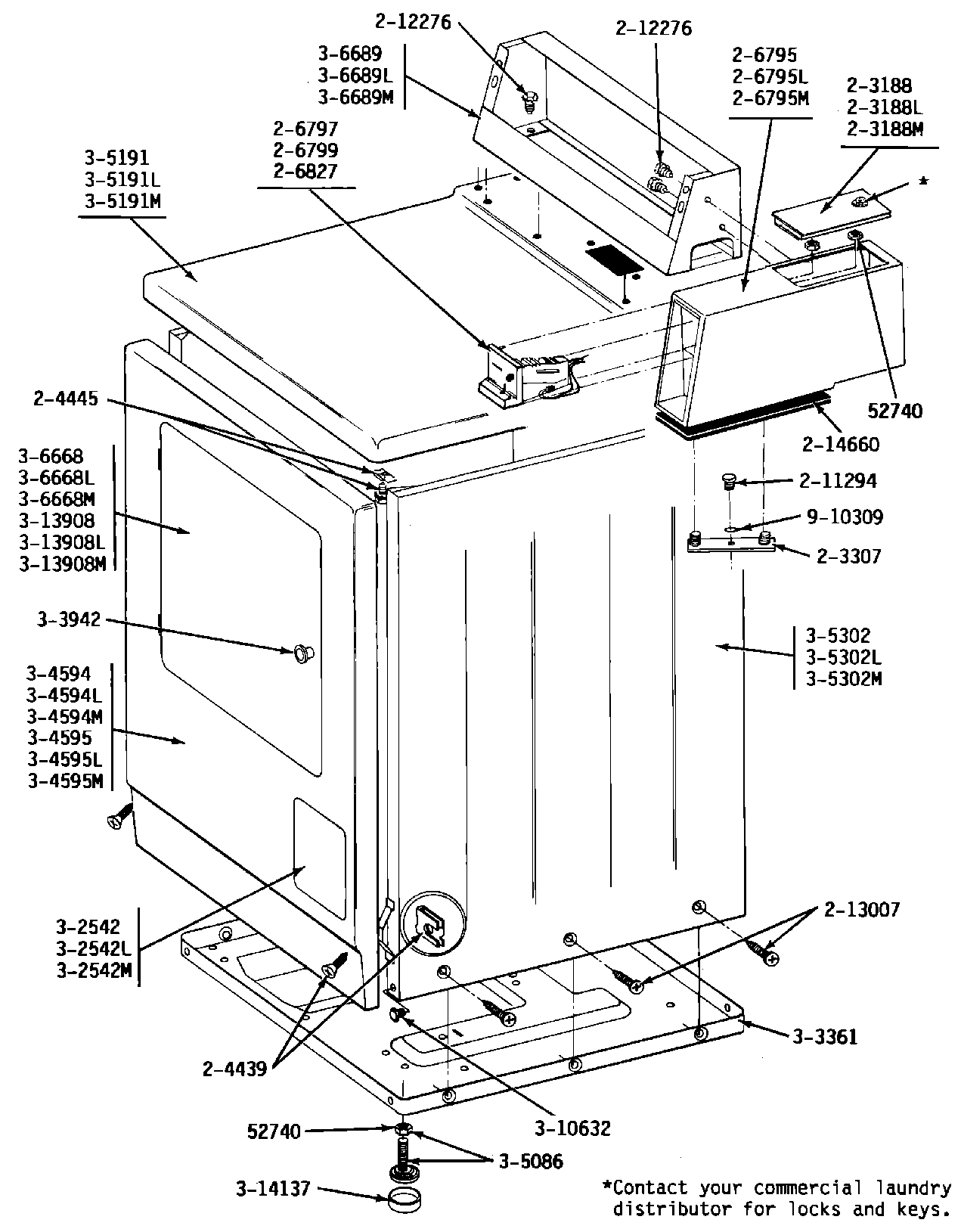

LDG19CD 02 – FRONT VIEW

LDG19CD 02 – FRONT VIEW

Written by

in

LDG19CD 02 – FRONT VIEW

Products

Position	Product
001	WP62739 Whirlpool Nut
002	MAY 203188
003	ACCESS DOOR-ALMOND
004	MAY 203188M
006	SCREW & FSTNER ASSY (FT. PNL)
007	MAY 204445
008	MAY 206795
009	MAY 206795L
011	MAY 206799
013	WP90767 Whirlpool Screw
014	MAY 212276
015	213007 Whirlpool Screw #12
016	MAY 214660
021	MAY Y303361
028	W10176519 Whirlpool Leveling Feet
029	MAY Y305191
035	DOOR
041	MAY Y310632
042	MAY Y313908
044	DOWEL PIN FOR HANDLE
045	WPY314137 Whirlpool Rubber Foot
046	MAY 910309
