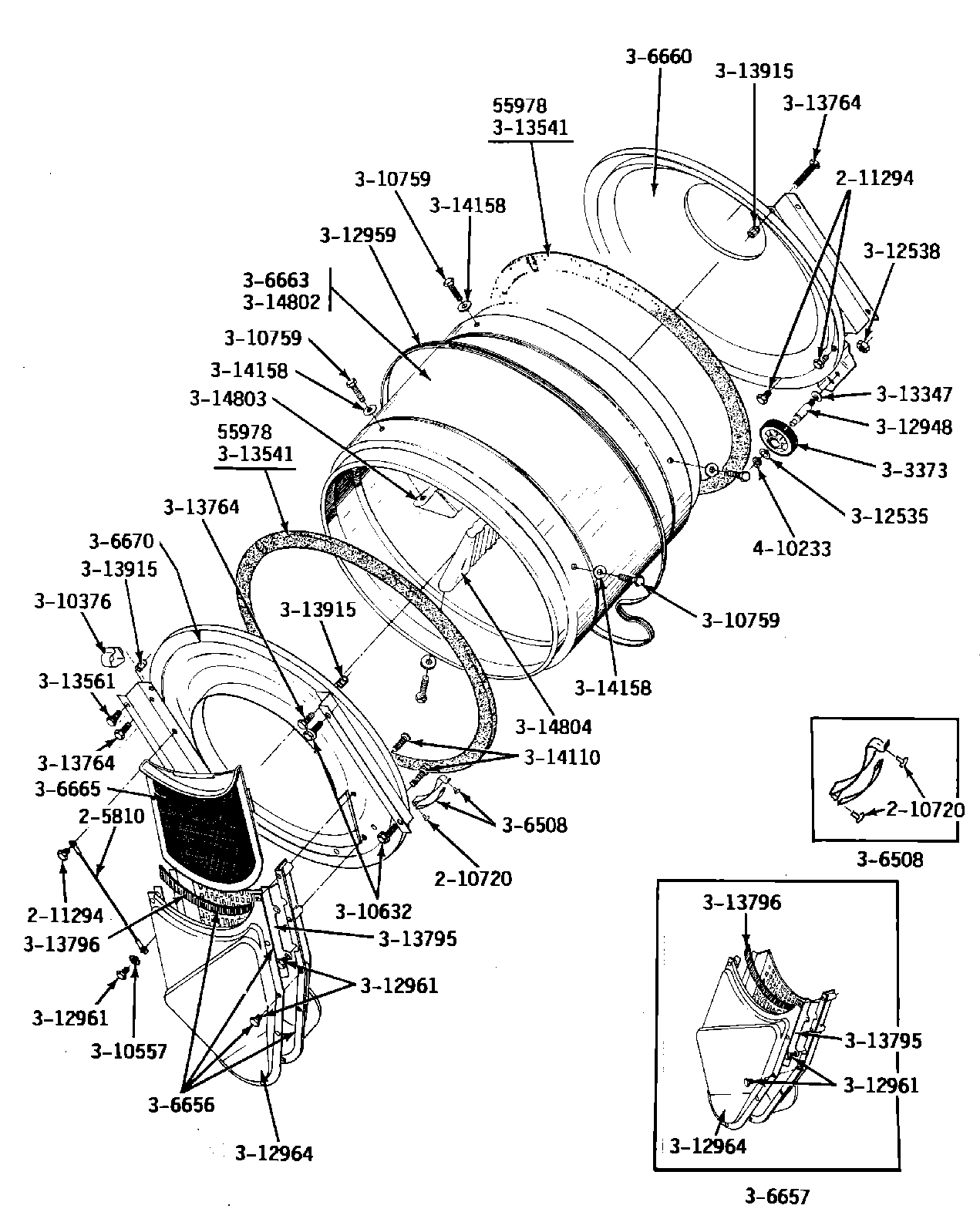

LDG19CD 05 – LINT SCREEN, TUMBLER (FRONT & BACK)

LDG19CD 05 – LINT SCREEN, TUMBLER (FRONT & BACK)

Written by

in

LDG19CD 05 – LINT SCREEN, TUMBLER (FRONT & BACK)

Products

PositionProduct
001MAY Y055978
002MAY 205810
003WP210720 Whirlpool Rivet
004WP90767 Whirlpool Screw
005MAY Y303373
006306508 Whirlpool Dryer Front Glide Kit
007MAY 306656
008MAY 306657
009MAY Y306660
010MAY 306663
011MAY Y306665
013MAY Y310376
014MAY 310557
015MAY Y310632
016MAY Y310759
017WP312535 Whirlpool Washer
018MAY 312538
019WP6-3129480 Whirlpool Roller Shaft
020WPY312959 Whirlpool Dryer Drum Belt
021WPW10116751 Whirlpool Screw
022MAY Y312964
024MAY Y313541
025MAY Y313561
027MAY Y313795
028MAY Y313796
029DOWEL PIN FOR HANDLE
030SCREW, INLET DUCT —-S
031MAY 314158
032MAY 314802
033MAY 314803
03433001004 Whirlpool Baffle
035WP9703438 Whirlpool Snap Retaining Ring
