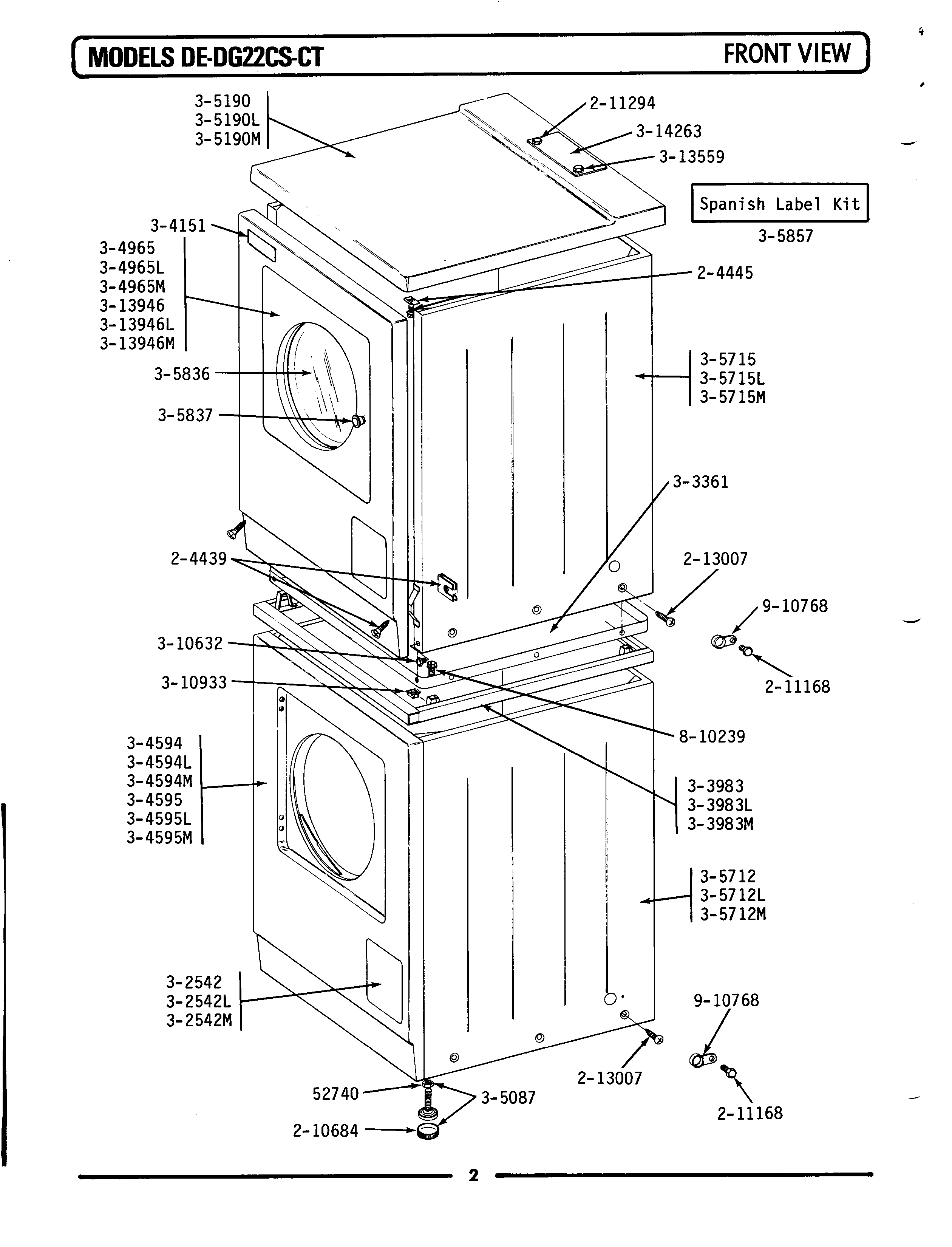

LDG22CS 01 – FRONT VIEW

Products

Position	Product
001	WP62739 Whirlpool Nut
002	SCREW & FSTNER ASSY (FT. PNL)
003	MAY 204445
004	WP210684 Whirlpool Dishwasher Leveling Leg Pad
005	WPW10139210 Whirlpool Screw
006	WP90767 Whirlpool Screw
007	213007 Whirlpool Screw #12
009	MAY Y303361
013	MAY 304965
014	MAY Y305087
015	MAY Y305190
021	MAY Y310632
022	MAY 310933
023	MAY Y313559
024	MAY Y313946
026	DOWEL PIN FOR HANDLE
027	CABLE STRAP-HARNESS TO BASE
