LDG22CS 03 – CONTROL CENTER SHROUD – Aparts

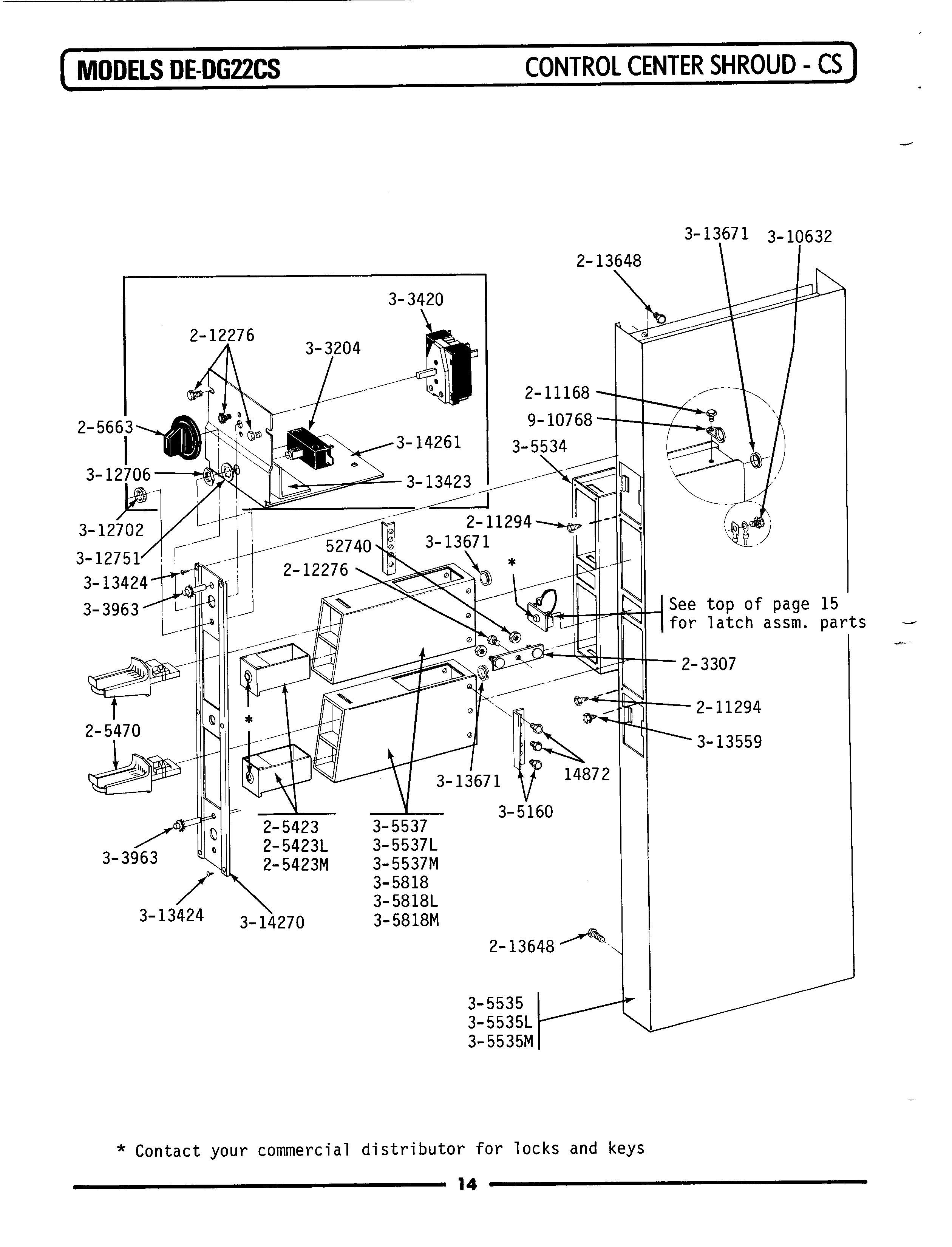

LDG22CS 03 – CONTROL CENTER SHROUD

Products

Position	Product
001	MAY Y014872
002	WP62739 Whirlpool Nut
004	COIN BOX-ALMOND
004	COIN BOX-WHITE
006	MAY 205663
007	WPW10139210 Whirlpool Screw
008	WP90767 Whirlpool Screw
009	MAY 212276
010	W11395752 Whirlpool Nut
012	WP98165 Whirlpool Screw
013	MAY Y303204
014	MAY Y303420
015	INDICATOR LIGHT
016	MAY Y303981
018	MAY 305534
020	MAY 305537
024	MAY Y310632
025	MAY Y312702
026	MAY Y312706
027	WPW10139799 Whirlpool Washer
028	DOWEL PIN FOR HANDLE
029	MAY Y313424
030	MAY Y313427
031	MAY 313428
032	MAY Y313559
033	MAY Y313671
034	MAY Y314261
035	MAY 314270
036	CABLE STRAP-HARNESS TO BASE
