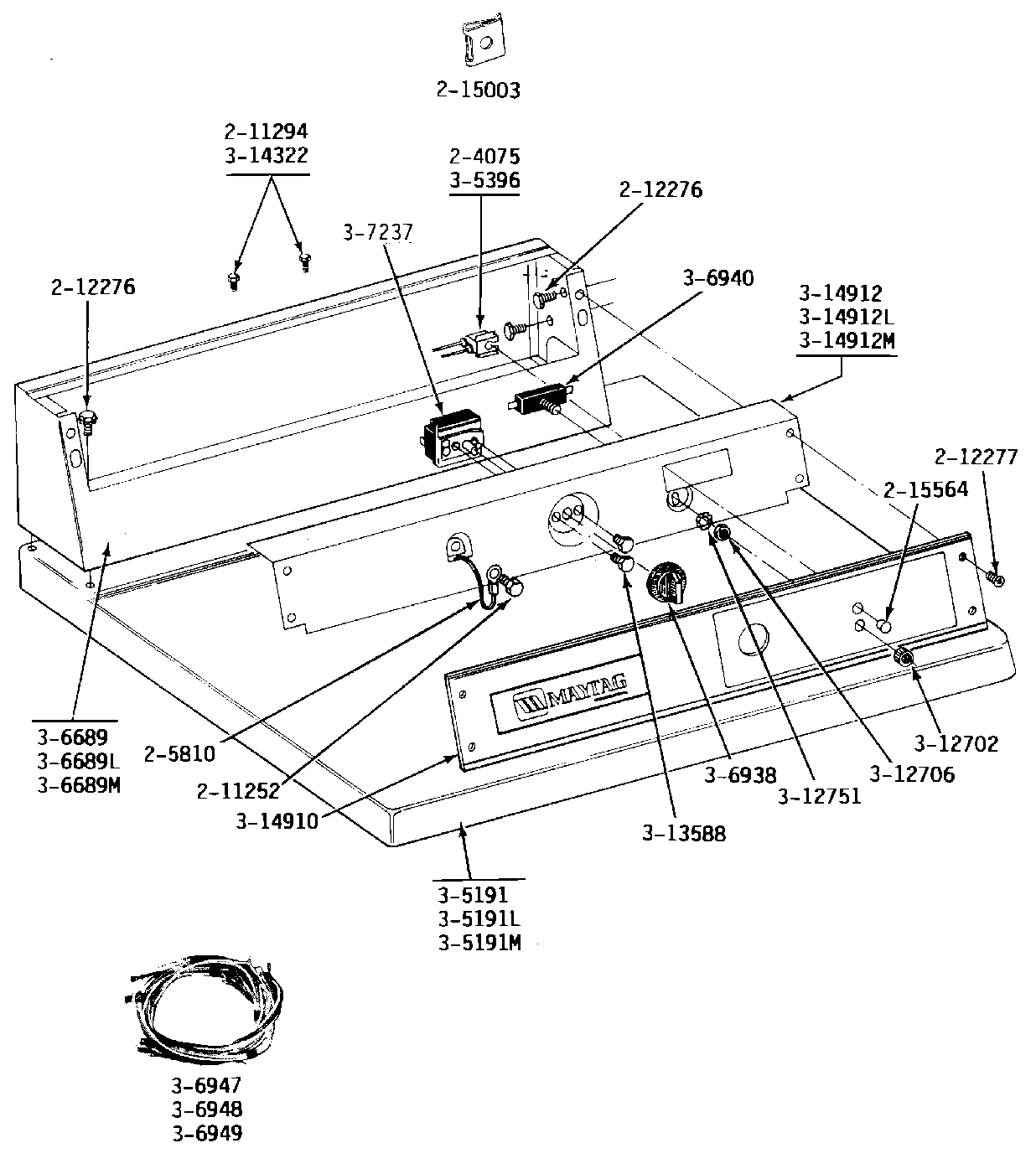

LDG24CM 01 – CM CONTROL PANEL

Products

PositionProduct
001LIGHT, INDICATOR
002MAY 205810
003WP489399 Whirlpool Refrigerator Screw
004WP90767 Whirlpool Screw
005MAY 212276
006WP1163283 Whirlpool Air Conditioner Screw
007MAY 215003
008WP215564 Whirlpool Indicator Lens
009MAY Y305191
016MAY 306938
017WPW10327105 Whirlpool Cycle Switch
018WPW10149462 Whirlpool Push-to-Start Switch
022MAY Y312702
023MAY Y312706
024WPW10139799 Whirlpool Washer
025WP488234 Whirlpool Air Conditioner Screw
026MAY Y314322
028BACK-UP PLATE – WHITE
030DOWEL PIN FOR HANDLE
