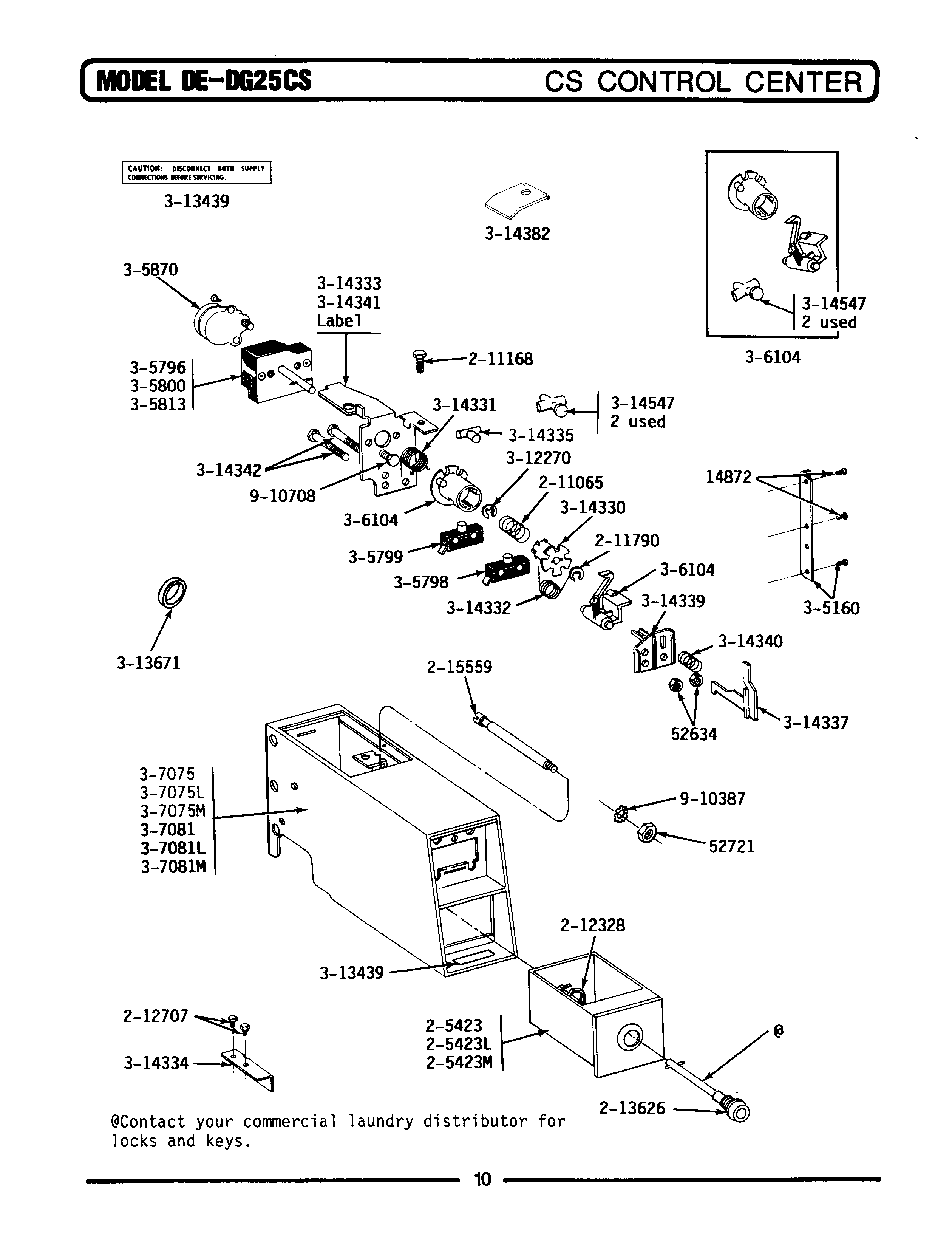

LDG25CS 05 – CONTROL CENTER

Products

Position	Product
001	MAY Y014872
002	MAY Y052634
003	Y052721 Whirlpool Nut
004	COIN BOX-ALMOND
004	COIN BOX-WHITE
005	WP211065 Whirlpool Timer Spring
006	WPW10139210 Whirlpool Screw
008	W11395752 Whirlpool Nut
009	W11684507 Whirlpool Screw
011	MAY 215559
013	MAY 305796
014	MAY 305798
015	MAY Y305799
016	MAY 305800
017	MAY 305813
018	TIMER MOTOR RPR
019	MAY 306104
023	MAY Y307081
024	MAY Y312270
025	MAY Y313439
026	MAY Y313671
027	MAY 314330
029	MAY 314332
030	TIMER MOUNTING BRACKET
031	BRACKET FOR COIN SLIDE
032	TIME ADJUSTMENT PEG
033	33002968 Whirlpool Slider
034	MAY 314339
038	DOWEL PIN FOR HANDLE
039	MAY 314547
040	MAY 910387
041	MAY 910708
