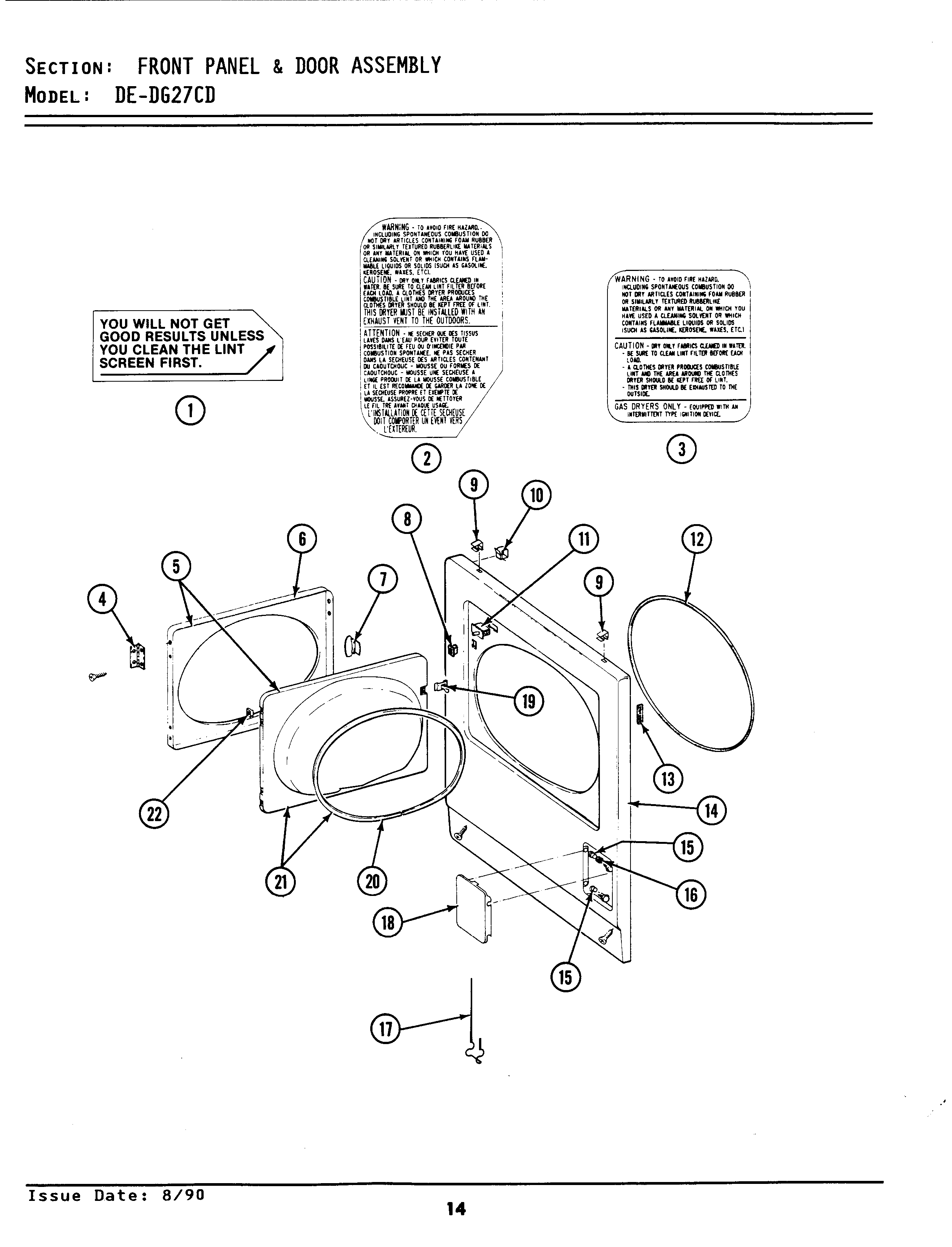

LDG27CD 05 – FRONT PANEL & DOOR ASSEMBLY

Products

Position	Product
001	LABEL, LINT SCREEN INSTR.
002	MAY 314941
004	MAY 307099
006	MAY 314967
007	MAY 314974
007	MAY 314975
007	MAY 314939
008	306436 Whirlpool Washer Dryer Door Catch and Plastic Strike
009	MAY 212982
010	MAY Y310376
011	W10169313 Whirlpool Door Switch Kit
012	MAY 314937
013	MAY Y313907
014	MAY Y308464
014	SCREW & FSTNER ASSY (FT. PNL)
014	SCREW, BUSHINGS
016	SLEEVE, ACCESS DOOR RUBBER
017	LATCH, ACCESS DOOR
018	DOWEL PIN FOR HANDLE
019	MAY 314944
019	MAY 314936
020	MAY 314935
021	MAY 308069
022	CLIP, DOOR LINER
