LDG30CMD 05 – BURNER & CONTROLS-UPPER COMPARTMENT
Written by
in

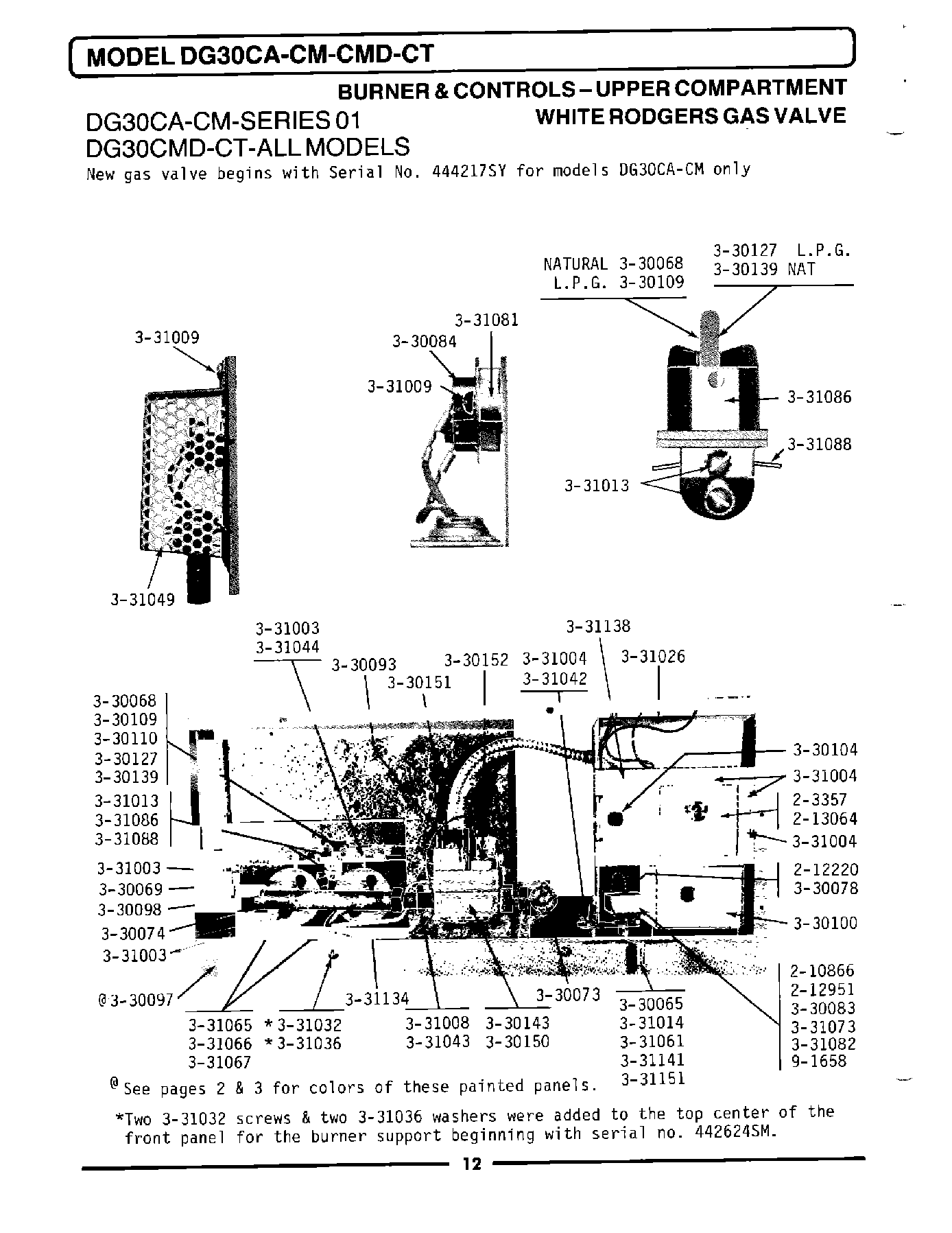

LDG30CMD 05 – BURNER & CONTROLS-UPPER COMPARTMENT
Products
| Position | Product |
|---|---|
| 002 | MAY 210866 |
| 003 | MAY 212220 |
| 004 | MAY 212951 |
| 007 | MAY Y330068 |
| 009 | MAY Y330073 |
| 011 | MAY Y330083 |
| 012 | MAY 330084 |
| 016 | MAY Y330100 |
| 017 | MAY Y330103 |
| 026 | MAY 331003 |
| 029 | MAY 331009 |
| 030 | MAY 331013 |
| 031 | MAY 331014 |
| 032 | MAY 331026 |
| 033 | MAY 331032 |
| 034 | WASHER-FRONT PANEL SCREWS |
| 038 | MAY 331049 |
| 039 | MAY 331058 |
| 040 | MAY 331061 |
| 047 | MAY 331086 |
| 052 | MAY 331151 |
| 054 | DOWEL PIN FOR HANDLE |
