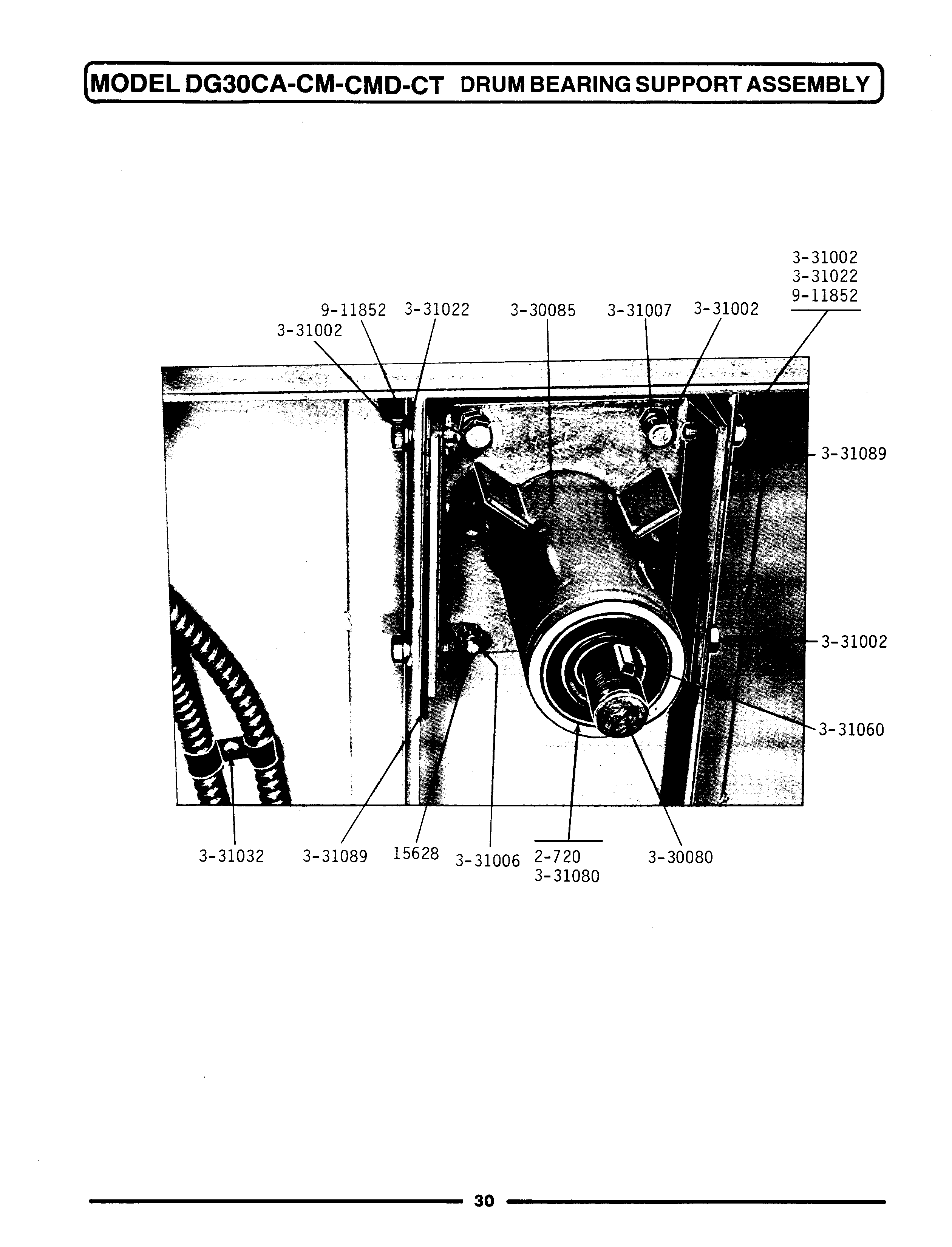

LDG30CMD 10 – DRUM BEARING SUPPORT ASSEMBLY
Products
| Position | Product |
|---|---|
| 002 | BALL BEARING, RADIAL----S |
| 003 | MAY Y330080 |
| 004 | MAY Y330085 |
| 008 | DOWEL PIN FOR HANDLE |
| 009 | MAY 331032 |
| 010 | MAY 331060 |
| 011 | SPACER FOR CENTER BEARING |
| 012 | MAY 331089 |
| 013 | MAY 911852 |
LDG30CMD 10 – DRUM BEARING SUPPORT ASSEMBLY
| Position | Product |
|---|---|
| 002 | BALL BEARING, RADIAL----S |
| 003 | MAY Y330080 |
| 004 | MAY Y330085 |
| 008 | DOWEL PIN FOR HANDLE |
| 009 | MAY 331032 |
| 010 | MAY 331060 |
| 011 | SPACER FOR CENTER BEARING |
| 012 | MAY 331089 |
| 013 | MAY 911852 |
