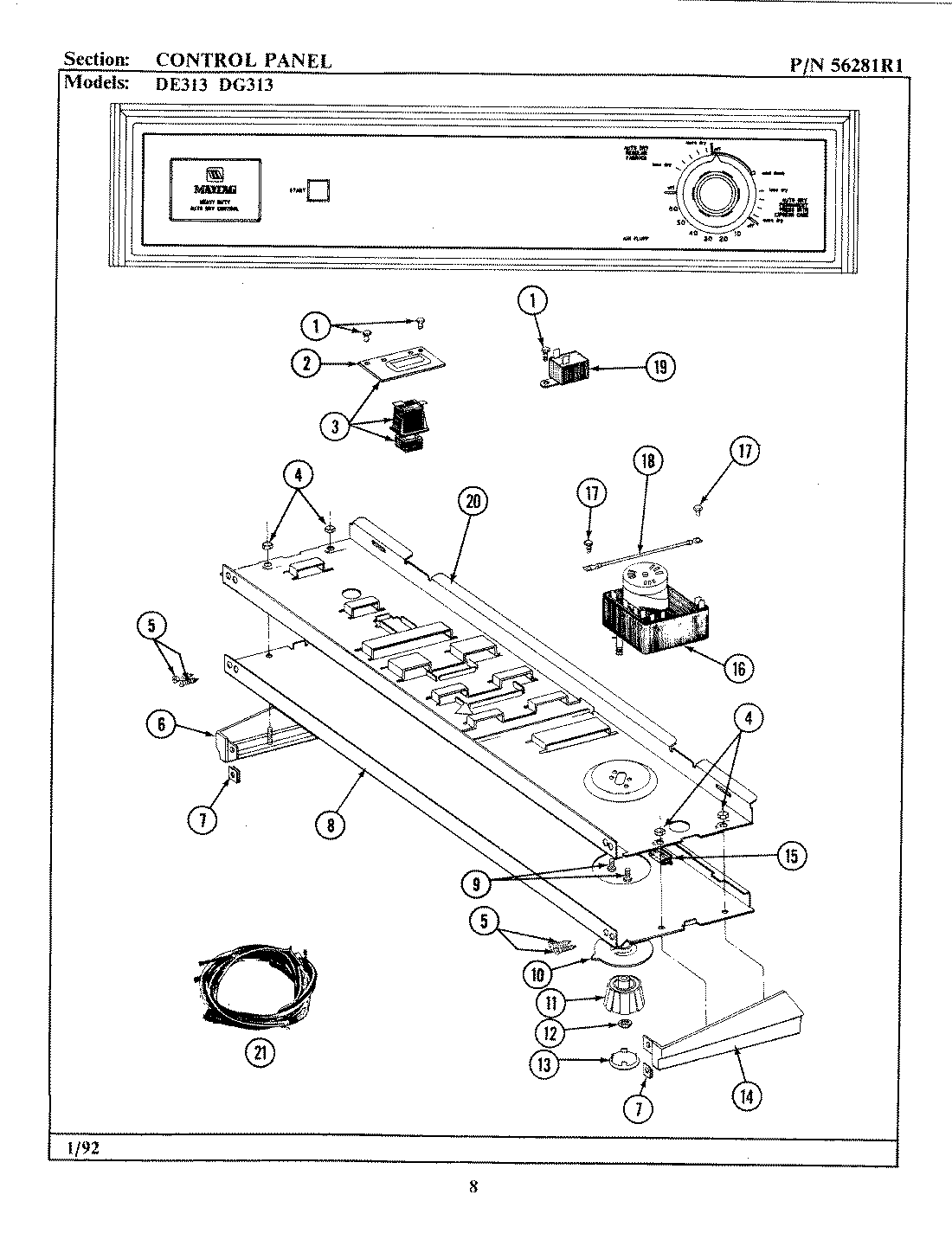

LDG313 01 – CONTROL PANEL

Products

Position	Product
1	WPW10139210 Whirlpool Screw
2	BRACKET FOR START SWITCH
3	SWITCH, PUSH/TO/START W/BKT
4	MAY 214872
5	MAY 210932
6	MAY 214815
7	MAY 214894
8	MAY 306535
9	MAY 910708
10	MAY 314422
11	MAY 314421
12	W10155650 Whirlpool Nut
13	MAY 215164
14	MAY 214816
15	MAY 214897
16	WP306534 Whirlpool Timer
17	WP90767 Whirlpool Screw
18	MAY 204807
19	WP694419 Whirlpool Buzzer Adjuster
20	BACK UP PLATE
21	MAY 306539
21	MAY 306809
