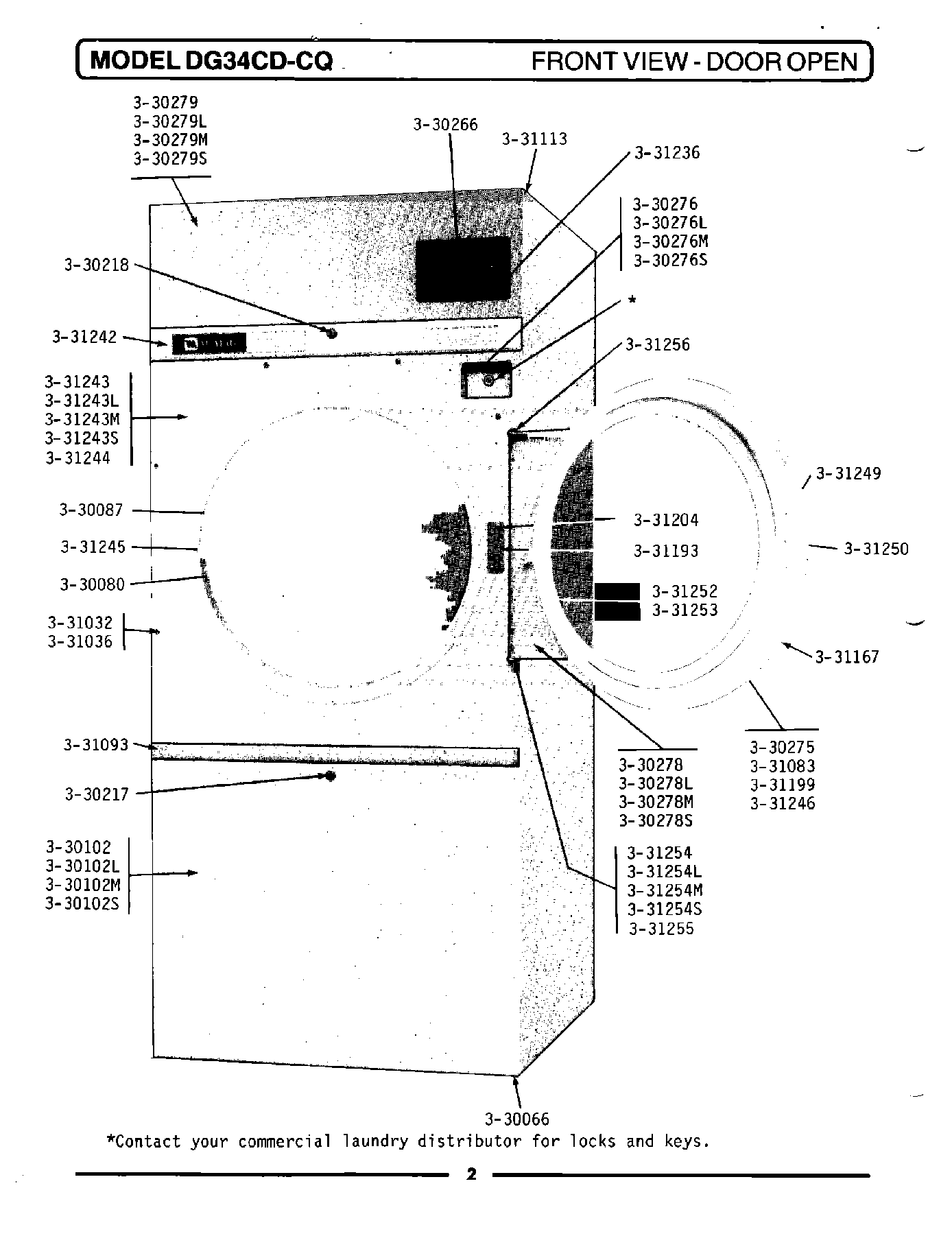

LDG34CD 01 – FRONT VIEW-DOOR OPEN
Written by
in
LDG34CD 01 – FRONT VIEW-DOOR OPEN
Products
| Position | Product |
|---|---|
| 002 | MAY Y330080 |
| 003 | MAY Y330087 |
| 004 | MAY Y330102 |
| 008 | MAY Y330217 |
| 009 | MAY Y330218 |
| 010 | MAY Y330266 |
| 011 | MAY Y330275 |
| 013 | MAY 330276L |
| 023 | MAY 330279S |
| 024 | MAY 331032 |
| 025 | MAY 331242 |
| 025 | WASHER-FRONT PANEL SCREWS |
| 026 | MAY 331083 |
| 027 | MAY 331167 |
| 028 | COVER FOR DOOR SWITCH BOX |
| 029 | GASKET FOR DOOR GLASS |
| 030 | MAY 331204 |
| 033 | MAY 331243L |
| 037 | MAY 331245 |
| 038 | MAY 331246 |
| 041 | MAY 331250 |
| 042 | WP3400094 Whirlpool Screw |
| 043 | MAY 331253 |
| 045 | MAY 331254L |
| 048 | DOWEL PIN FOR HANDLE |
| 049 | MAY 331256 |
