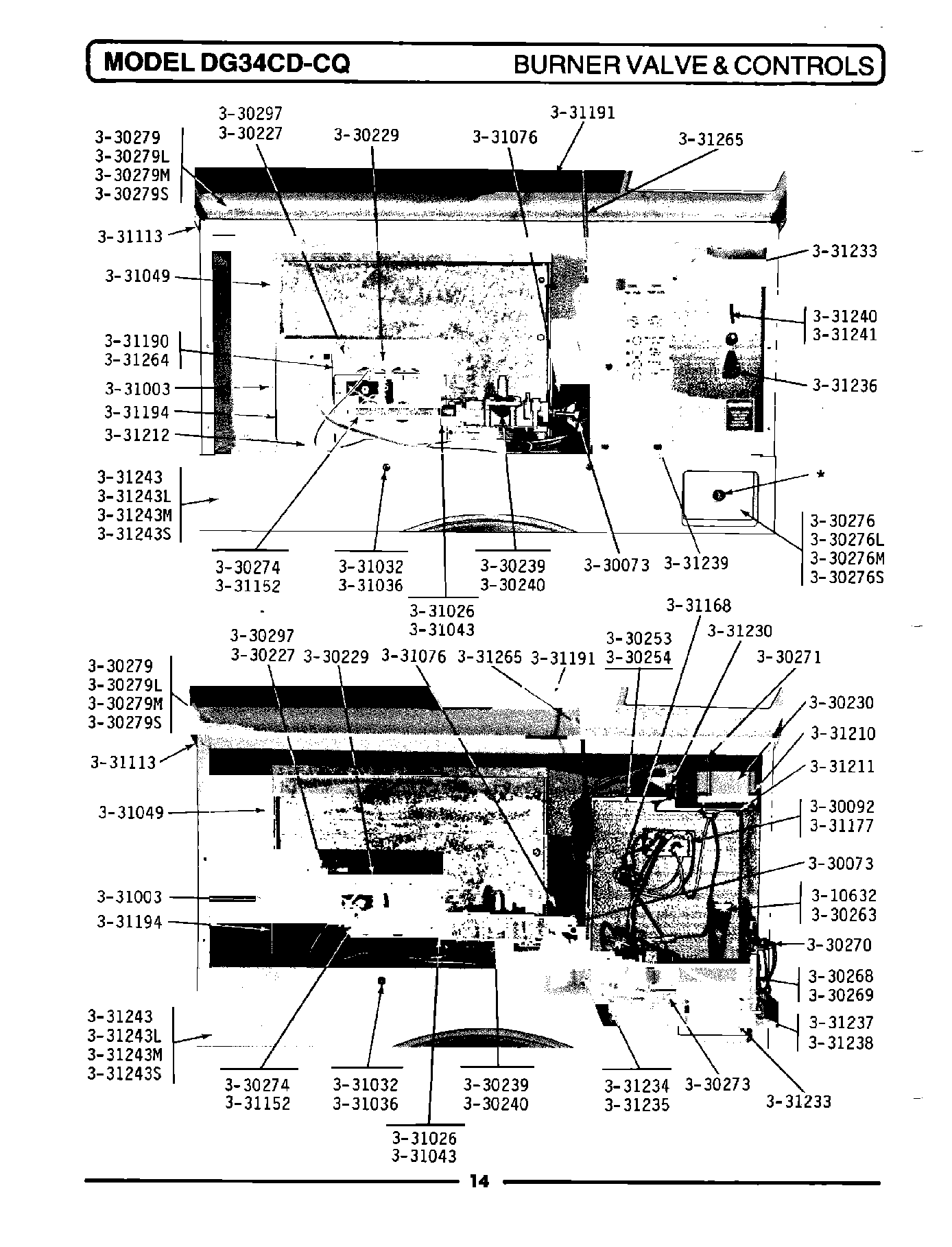

LDG34CD 07 – BURNER VALVE & CONTROLS
Products
| Position | Product |
|---|---|
| 001 | MAY Y310632 |
| 002 | MAY Y330073 |
| 003 | MAY Y330092 |
| 004 | MAY Y330201 |
| 006 | HARNESS FOR GAS VALVE |
| 007 | MAY Y330229 |
| 008 | MAY Y330230 |
| 009 | MAY Y330231 |
| 010 | MAY Y330239 |
| 012 | MAY Y330253 |
| 013 | MAY Y330254 |
| 015 | MAY Y330268 |
| 017 | MAY Y330270 |
| 018 | MAY Y330271 |
| 019 | MAY Y330273 |
| 022 | MAY 330276L |
| 028 | MAY 330279S |
| 029 | MAY 331003 |
| 030 | MAY 331009 |
| 031 | MAY 331012 |
| 032 | MAY 331026 |
| 033 | MAY 331032 |
| 034 | WASHER-FRONT PANEL SCREWS |
| 036 | MAY 331049 |
| 046 | MAY 331210 |
| 047 | MAY 331211 |
| 048 | MAY 331212 |
| 049 | MAY 331230 |
| 051 | MAY 331233 |
| 052 | MAY 331234 |
| 053 | NUT FOR CIRCUIT BOARD |
| 055 | MAY 331237 |
| 061 | MAY 331243L |
| 065 | DOWEL PIN FOR HANDLE |
