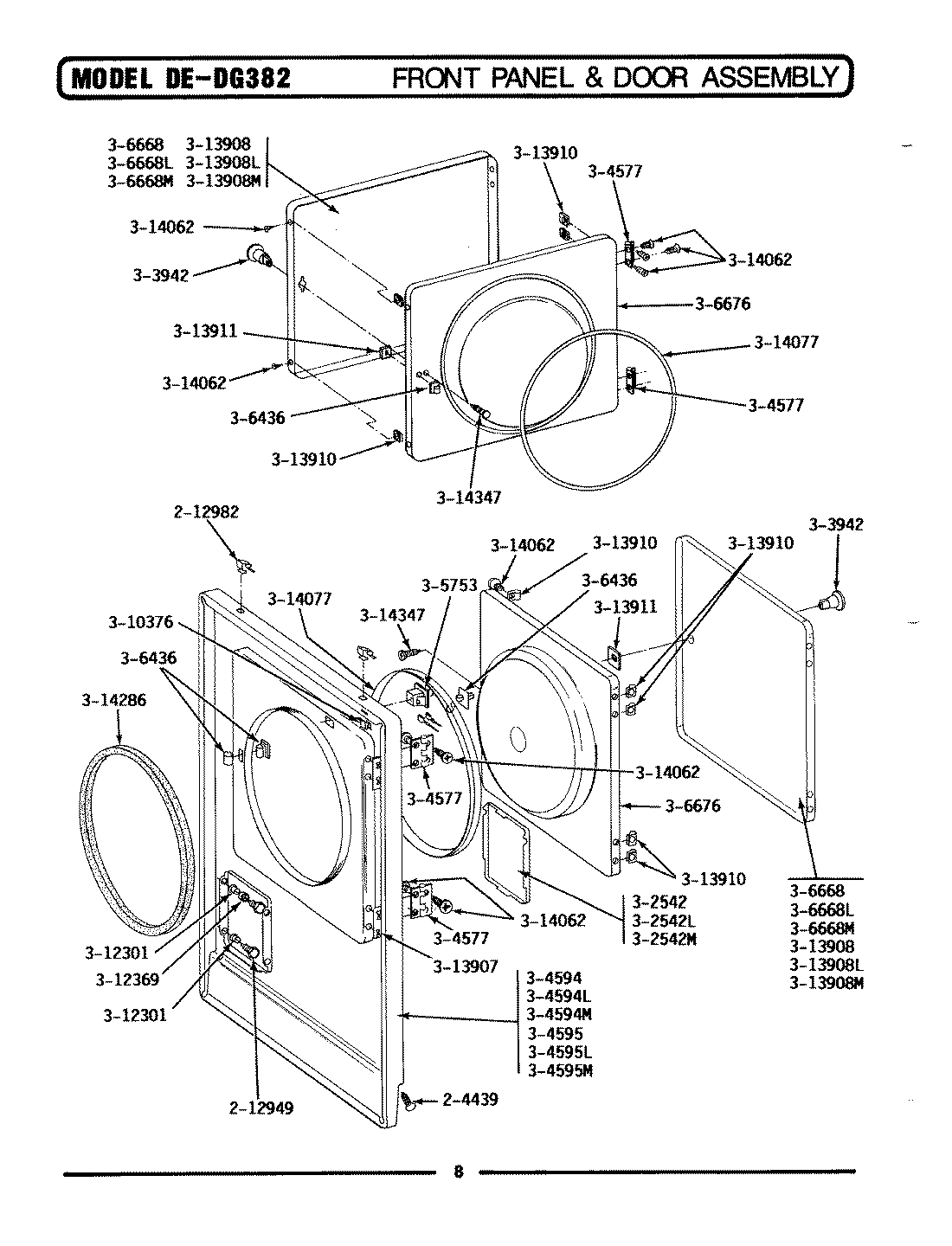

LDG382 02 – FRONT PANEL & DOOR ASSEMBLY

Products

Position	Product
1	SCREW & FSTNER ASSY (FT. PNL)
2	SCREW, BUSHINGS
3	MAY 212982
5	MAY 302542L
7	MAY 303942
8	MAY Y304577
10	MAY 304594L
12	W10169313 Whirlpool Door Switch Kit
13	306436 Whirlpool Washer Dryer Door Catch and Plastic Strike
15	MAY 306668L
17	MAY 306676
18	MAY Y310376
19	BUSHING FOR ACCESS STUD
20	SLEEVE, ACCESS DOOR RUBBER
21	MAY Y313907
23	MAY 313908L
25	CLIP, DOOR LINER
26	MAY Y313911
27	MAY Y313927
29	MAY 314077
30	MAY 314119
32	WP400021-1 Whirlpool Screw
