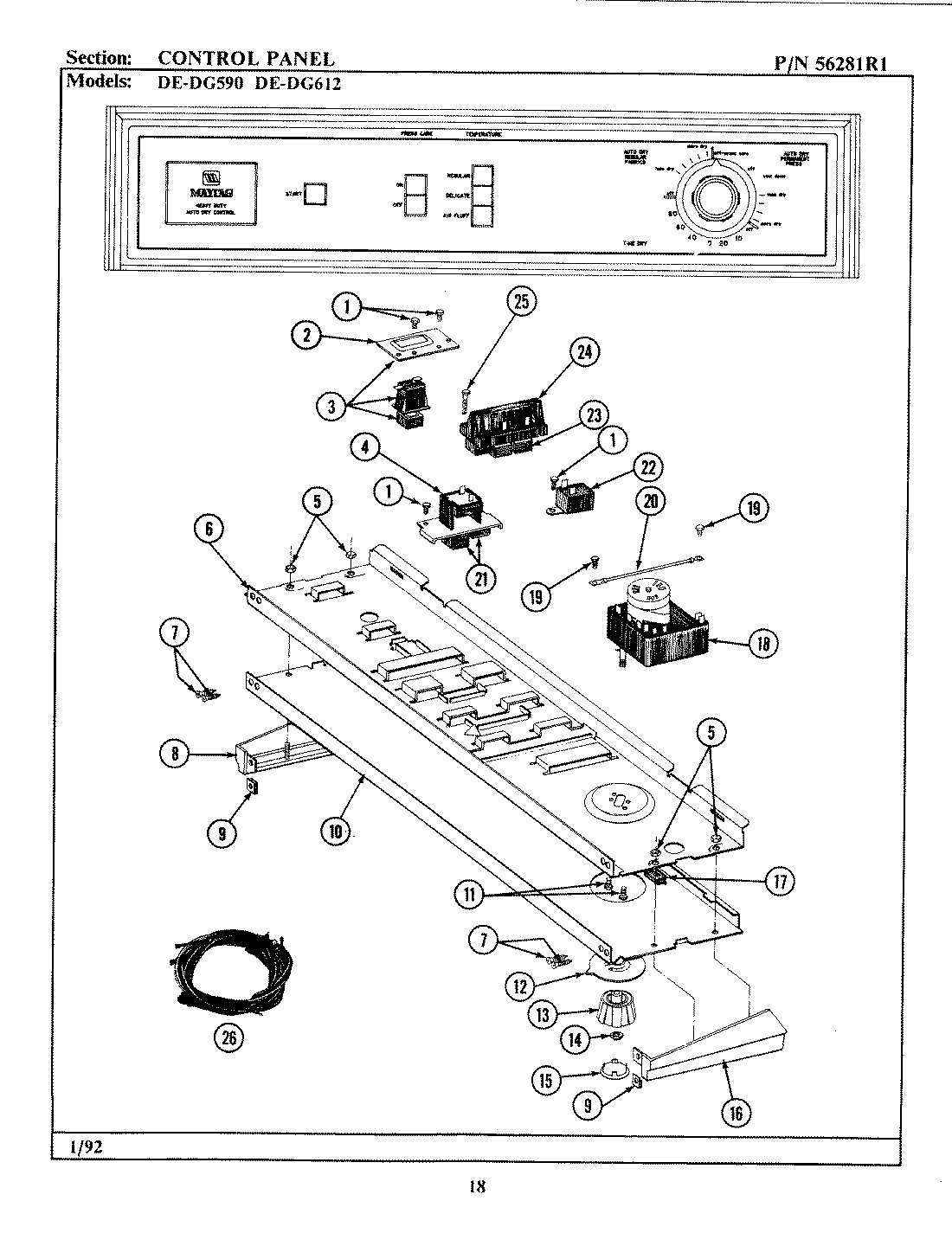

LDG612 01 – CONTROL PANEL

Products

Position	Product
1	WPW10139210 Whirlpool Screw
2	BRACKET FOR START SWITCH
3	SWITCH, PUSH/TO/START W/BKT
4	MAY 305950
5	MAY 214872
6	BACK UP PLATE
7	MAY 210932
8	MAY 214815
9	MAY 214894
10	MAY 305885
10	MAY 306385
11	MAY 910708
12	MAY 314422
13	MAY 314421
14	W10155650 Whirlpool Nut
15	MAY 215164
16	MAY 214816
17	MAY 214897
18	MAY 305207
19	WP90767 Whirlpool Screw
20	MAY 204807
21	MAY 215210
22	WP694419 Whirlpool Buzzer Adjuster
23	MAY 215211
24	MAY 305958
25	WP67006908 Whirlpool Refrigerator Screw
26	MAIN WIRE HARNESS
26	MAY 306181
