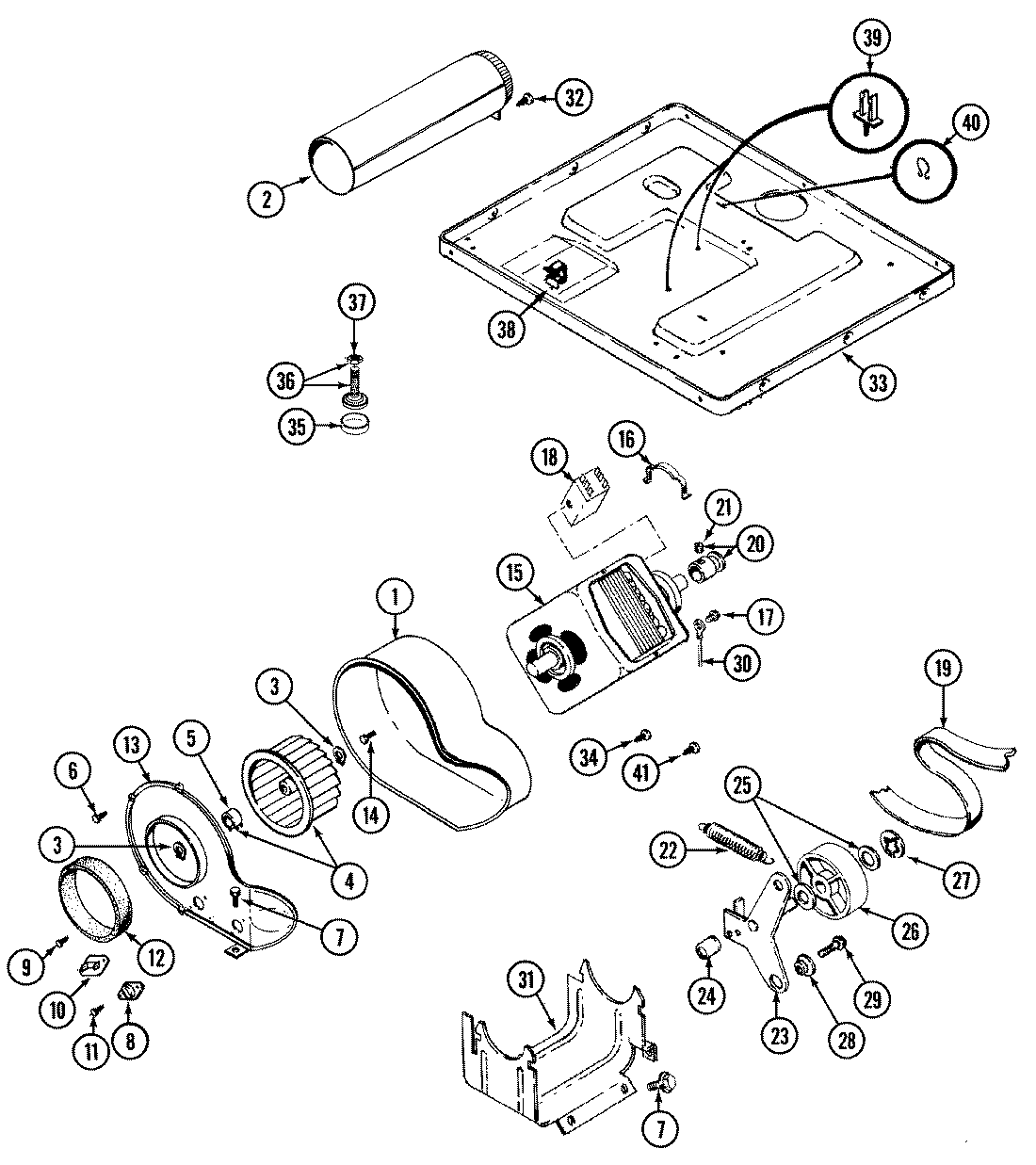

LDG7304ABL 06 – MOTOR DRIVE

Products

Position	Product
1	MAY Y312893
2	MAY Y303442
3	WP9703438 Whirlpool Snap Retaining Ring
4	Y303836 Whirlpool Dryer Blower Wheel
5	WP312967 Whirlpool Clamp
7	MAY Y313561
8	WP307250 Whirlpool Thermostat
10	WP306604 Whirlpool Cut-off
11	MAY 314848
12	WPY312901 Whirlpool Blow Seal
13	MAY 314846
15	W10410999 Whirlpool Dryer Drive Motor
16	WPY015825 Whirlpool Motor Clip
18	MAY 306207
18	MAY Y303879
18	MAY Y303877
19	WPY312959 Whirlpool Dryer Drum Belt
20	MAY Y305185
21	MAY Y053241
22	MAY Y303945
23	WP6-3033630 Whirlpool Dryer Idler Arm Assembly
24	WPW10116756 Whirlpool Spacer
25	MAY Y312527
26	WP6-3037050 Whirlpool Idler Pulley
27	WP354987 Whirlpool C-Clip
28	SLEEVE, IDLER ARM ----S
29	WPY014874 Whirlpool Screw
31	MAY 312897
32	MAY Y310632
33	MAY Y305084
34	WP90767 Whirlpool Screw
35	WPY314137 Whirlpool Rubber Foot
36	W10176519 Whirlpool Leveling Feet
37	WP62739 Whirlpool Nut
38	MAY Y310376
39	MAY 315471
40	MAY 410490
41	WPW10116751 Whirlpool Screw
