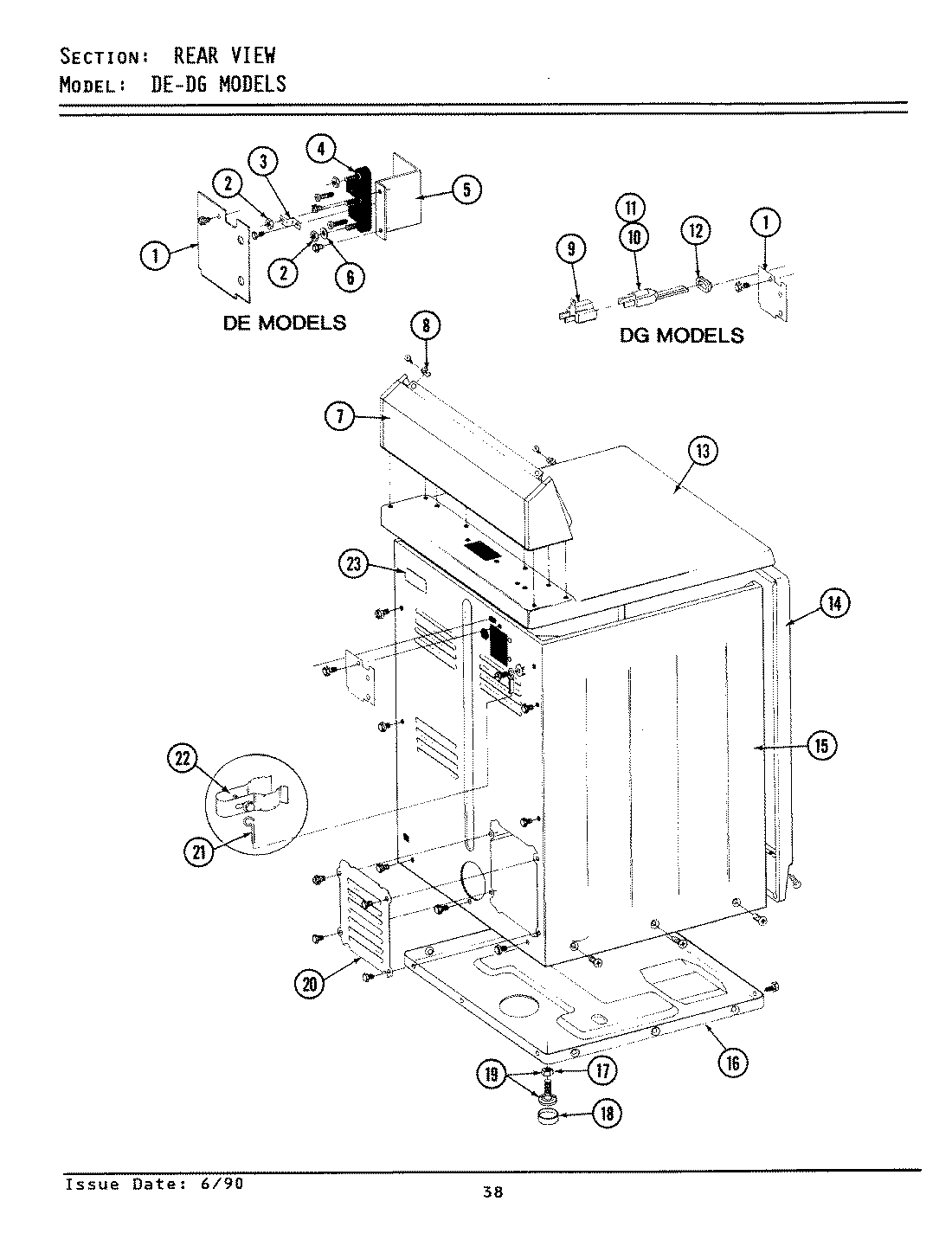

LDG7400 08 – REAR VIEW

LDG7400 08 – REAR VIEW

Written by

in

LDG7400 08 – REAR VIEW

Products

PositionProduct
1MAY Y312905
7MAY 305193L
8MAY 215075
9MAY Y201808
10MAY 302521
12GROMMET
13MAY 307104L
14(ALM)
15MAY 307124L
15MAY Y313561
15MAY Y310632
16MAY Y303361
17WP62739 Whirlpool Nut
18WPY314137 Whirlpool Rubber Foot
19W10176519 Whirlpool Leveling Feet
20MAY Y313559
20MAY Y312951
20WP90767 Whirlpool Screw
21WP311155 Whirlpool Wire Assembly
22MAY 301548
22MAY 313122
23INSTRUCTION LABEL
