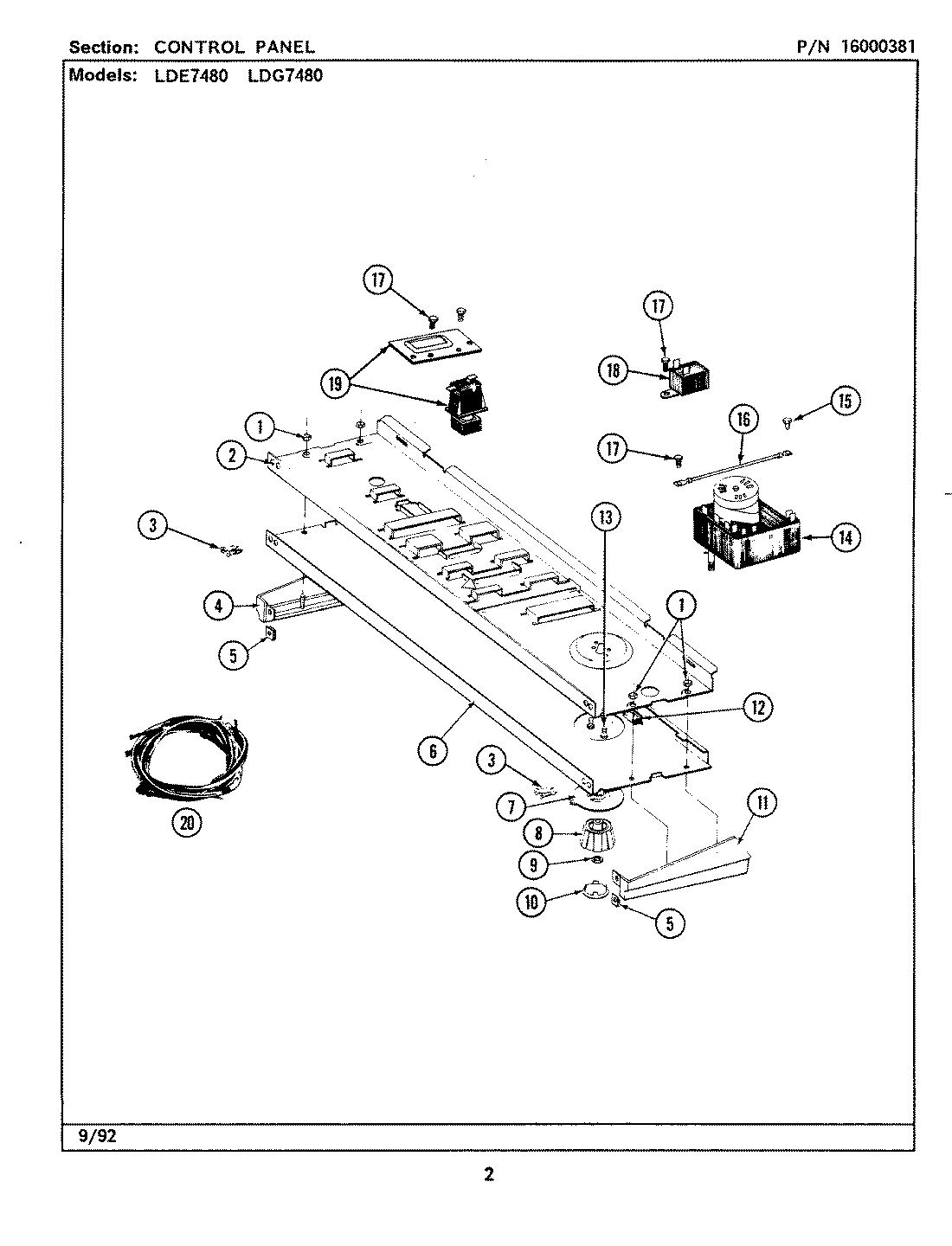

LDG7480AAW 03 – CONTROL PANEL

Products

Position	Product
1	MAY 214872
2	BACK UP PLATE
3	MAY 210932
4	MAY 207928
5	MAY 214894
6	MAY 308521
7	MAY 315042
8	MAY 315041
9	W10155650 Whirlpool Nut
10	MAY 215821
11	MAY 207927
12	MAY 214897
13	MAY 315317
14	MAY Y308218
15	WP90767 Whirlpool Screw
16	MAY 204807
17	WPW10139210 Whirlpool Screw
18	WP694419 Whirlpool Buzzer Adjuster
19	SWITCH PUSH TO START
20	MAY 308334
20	MAY Y308498
