LDG7500AAE 03 – CABINET-REAR (LDE7500ACE,ADE) & (LDG)

LDG7500AAE 03 – CABINET-REAR (LDE7500ACE,ADE) & (LDG)

Written by

in

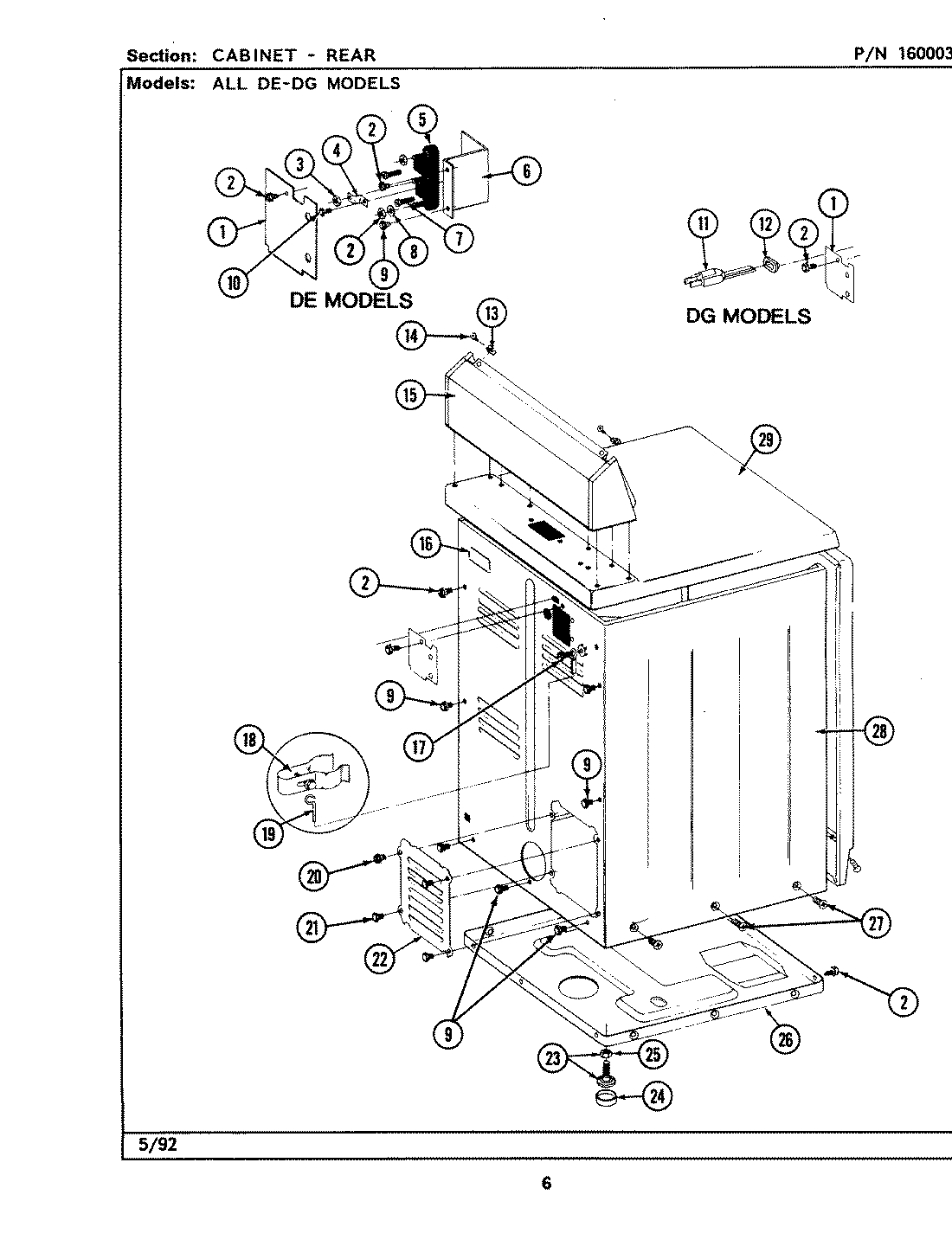

LDG7500AAE 03 – CABINET-REAR (LDE7500ACE,ADE) & (LDG)

Products

PositionProduct
1MAY Y312905
2MAY Y313561
9MAY Y310632
11MAY 302521
12GROMMET
13MAY 215075
14MAY 210932
15MAY Y305193
16INSTRUCTION LABEL
17MAY 303846
18MAY 301548
19WP311155 Whirlpool Wire Assembly
20MAY Y313559
21WP90767 Whirlpool Screw
22MAY Y312951
23W10176519 Whirlpool Leveling Feet
24WPY314137 Whirlpool Rubber Foot
25WP62739 Whirlpool Nut
26MAY Y303361
27MAY 213077
28MAY 307124
29TOP COVER ASSY. (WHT)
