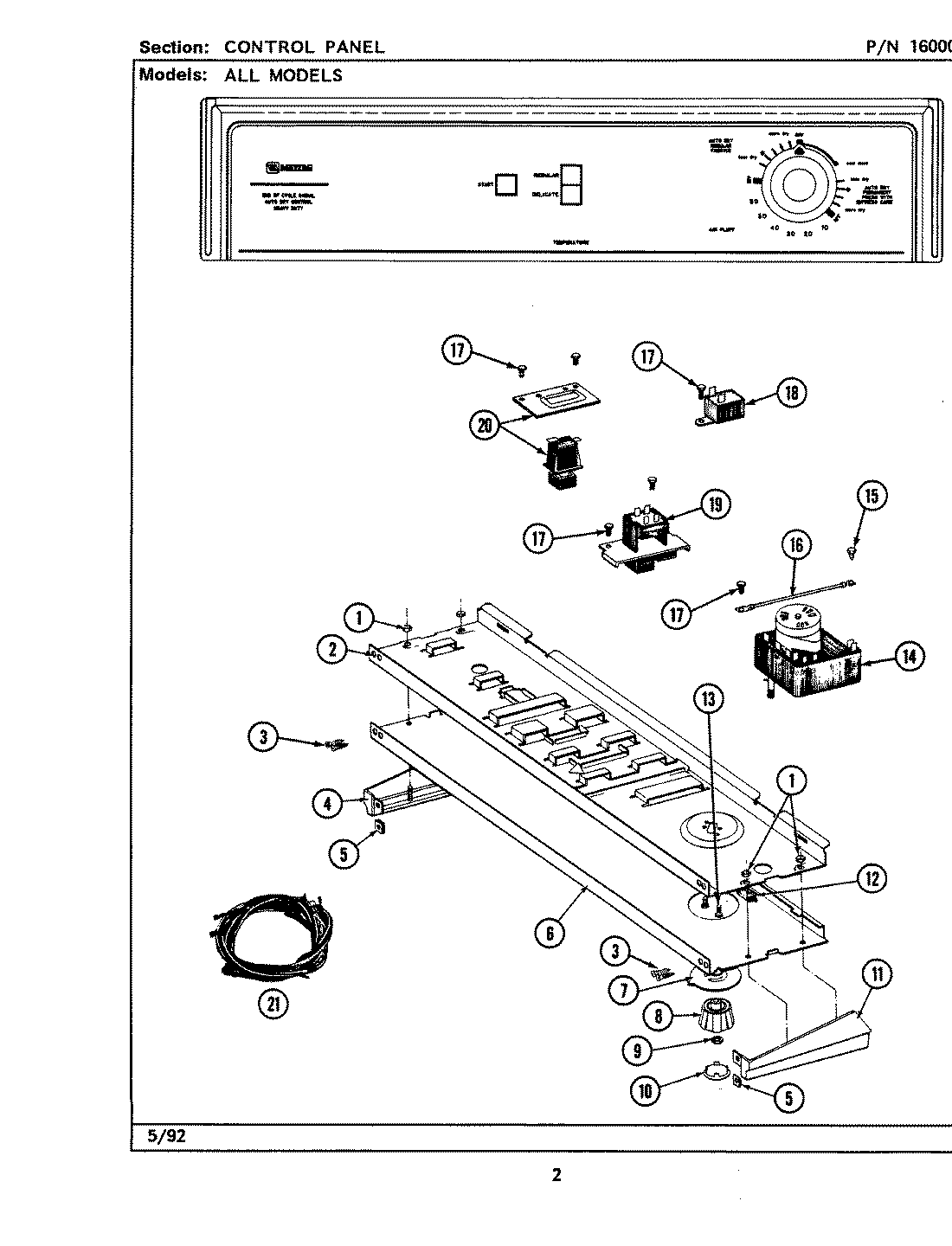

LDG7500AAE 04 – CONTROL PANEL (LDE7500ACE,ADE) & (LDG)

Products

Position	Product
1	MAY 214872
2	BACK UP PLATE
3	MAY 210932
4	MAY 308469
5	MAY 214894
6	MAY 308471
7	MAY 315438
8	MAY 315422
9	W10155650 Whirlpool Nut
10	MAY 216057
11	MAY Y308470
12	MAY 214897
13	MAY 315317
14	WPY308253 Whirlpool Timer
15	WP90767 Whirlpool Screw
16	MAY 204807
17	WPW10139210 Whirlpool Screw
18	WP694419 Whirlpool Buzzer Adjuster
19	MAY 308467
20	MAY 308468
21	HARNESS, WIRE
21	MAY 307293
22	MAY 315083
22	MAY 16000327
