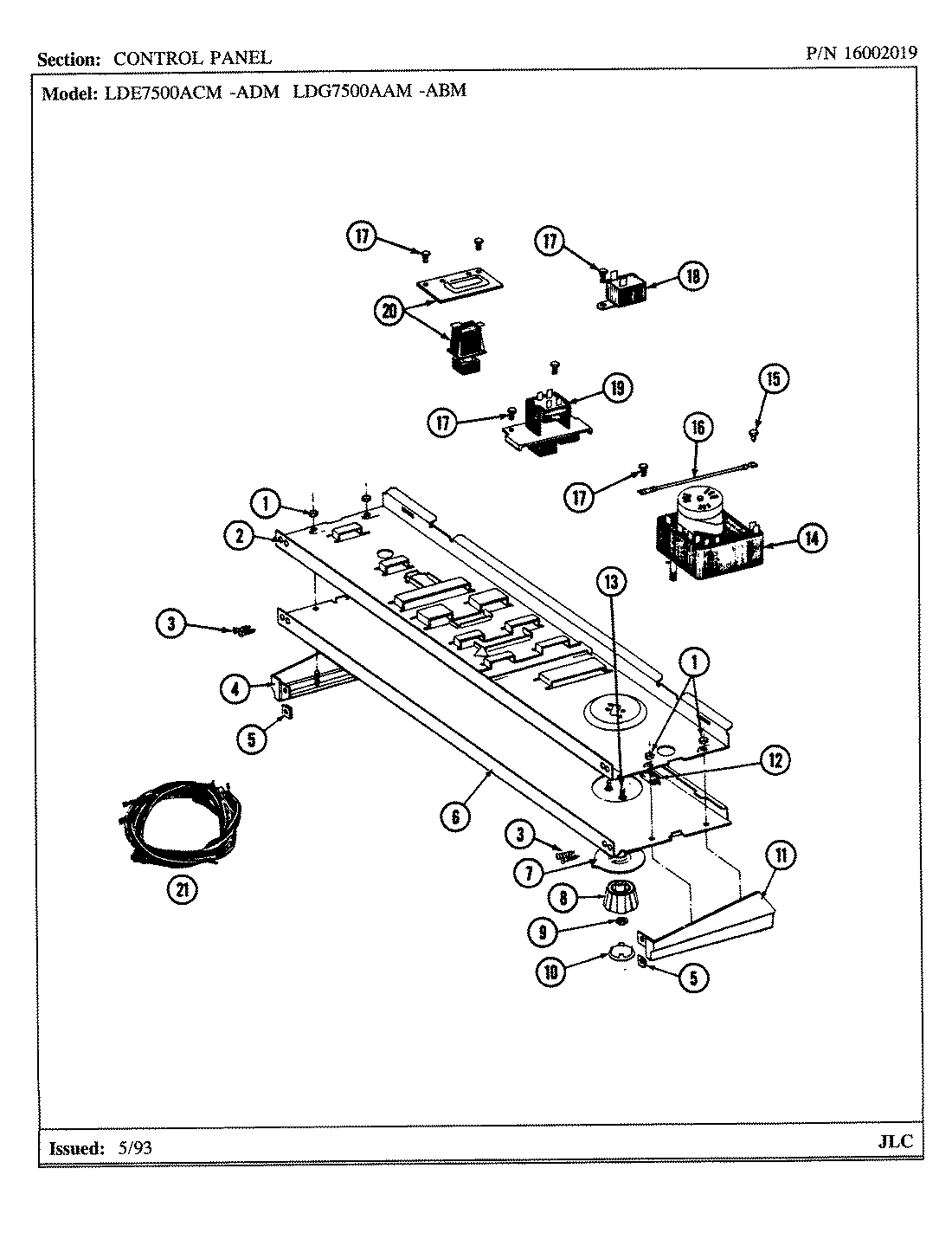

LDG7500AAW 04 – CONTROL PANEL (LDE7500ACM,ADM) & (LDG)

Products

PositionProduct
2BACK UP PLATE
3MAY 210932
4MAY 308651
5MAY 214894
6MAY 308648
7MAY 315521
8MAY 315522
9W10155650 Whirlpool Nut
10MAY 315523
11MAY Y308652
12MAY 214897
13MAY 315317
14WPY308253 Whirlpool Timer
15WP90767 Whirlpool Screw
16MAY 204807
17WPW10139210 Whirlpool Screw
18WP694419 Whirlpool Buzzer Adjuster
19MAY 308650
20MAY 308649
22MAY 315083
