LDG7500AAW 05 – CONTROL PANEL (LDG7500AAL,AAW,ABL,ABW)

LDG7500AAW 05 – CONTROL PANEL (LDG7500AAL,AAW,ABL,ABW)

Written by

in

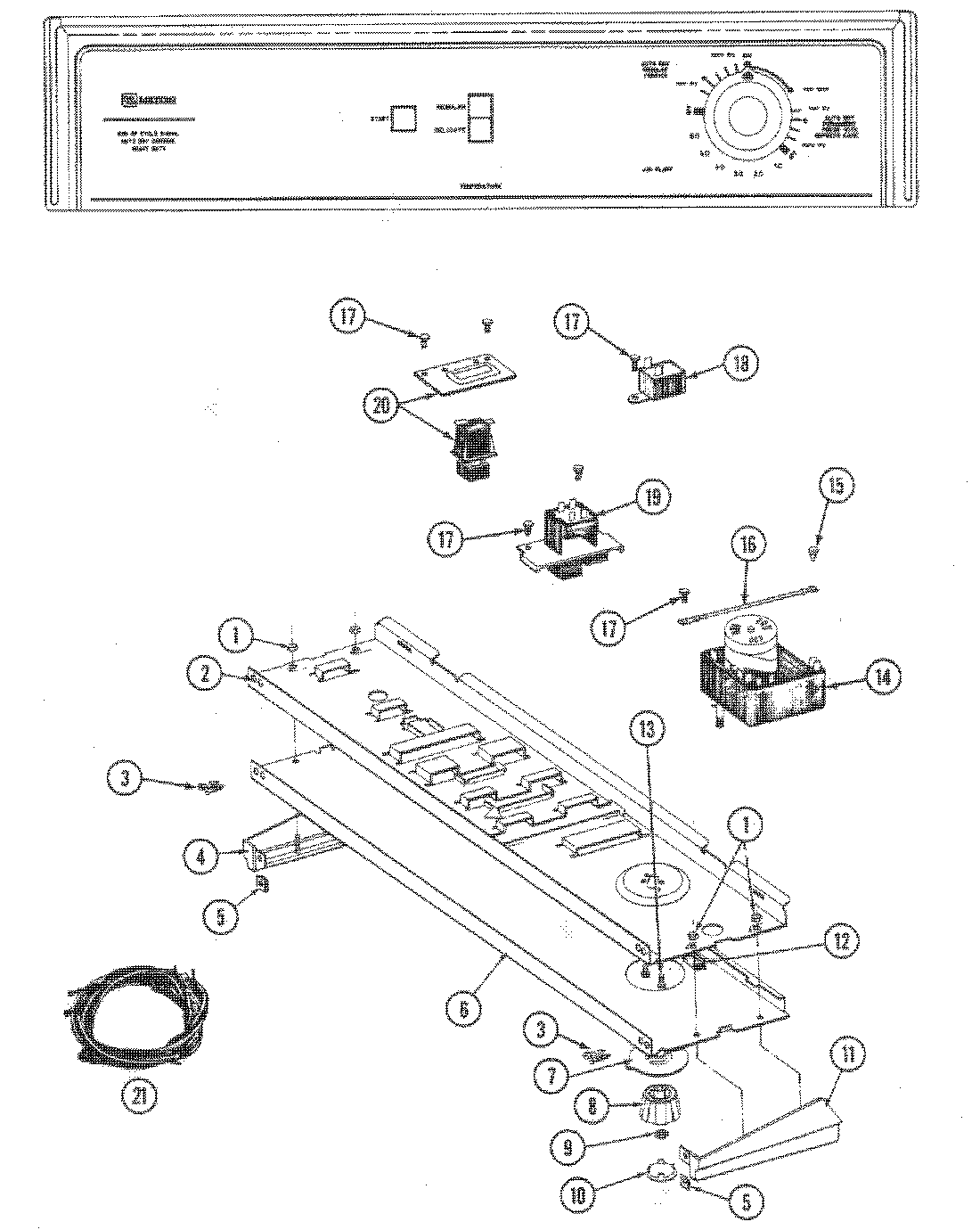

LDG7500AAW 05 – CONTROL PANEL (LDG7500AAL,AAW,ABL,ABW)

Products

PositionProduct
1MAY 214872
2BACK UP PLATE
3MAY 210932
4MAY 207215
5MAY 214894
6MAY 307952
7MAY 315042
8MAY 315041
9W10155650 Whirlpool Nut
10MAY 215821
11MAY 207216
12MAY 214897
13MAY 315317
14WPY308253 Whirlpool Timer
15WP90767 Whirlpool Screw
16MAY 204807
17WPW10139210 Whirlpool Screw
18WP694419 Whirlpool Buzzer Adjuster
19MAY 207365
20SWITCH PUSH TO START
21MAY 307293
21HARNESS, WIRE
22MAY 16000327
22MAY 315083
