LDG8200 01 – CONTROL PANEL

LDG8200 01 – CONTROL PANEL

Written by

in

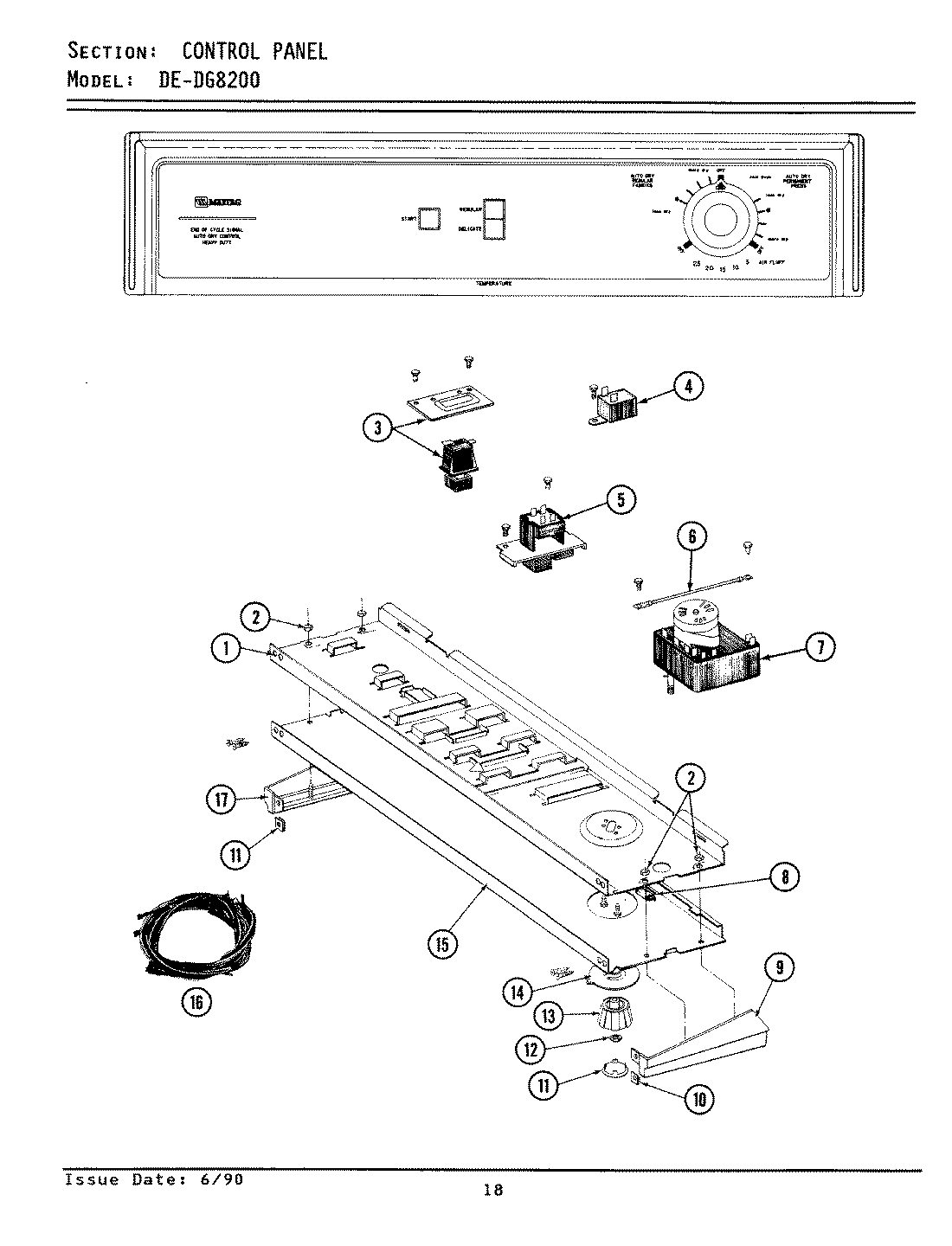

LDG8200 01 – CONTROL PANEL

Products

PositionProduct
1BACK UP PLATE
2MAY 214872
3SWITCH PUSH TO START
4WP694419 Whirlpool Buzzer Adjuster
5MAY 207365
5WPW10139210 Whirlpool Screw
6WP90767 Whirlpool Screw
6MAY 204807
7WP305973 Whirlpool Timer Assembly
7MAY 910708
8MAY 214897
9MAY 207216
10MAY 214894
11MAY 215821
12W10155650 Whirlpool Nut
13MAY 315041
14MAY 315042
15MAY 210932
15CONTROL PANEL
16WIRE HARNESS
17MAY 207215
