LDG8200 03 – FRONT VIEW – Aparts

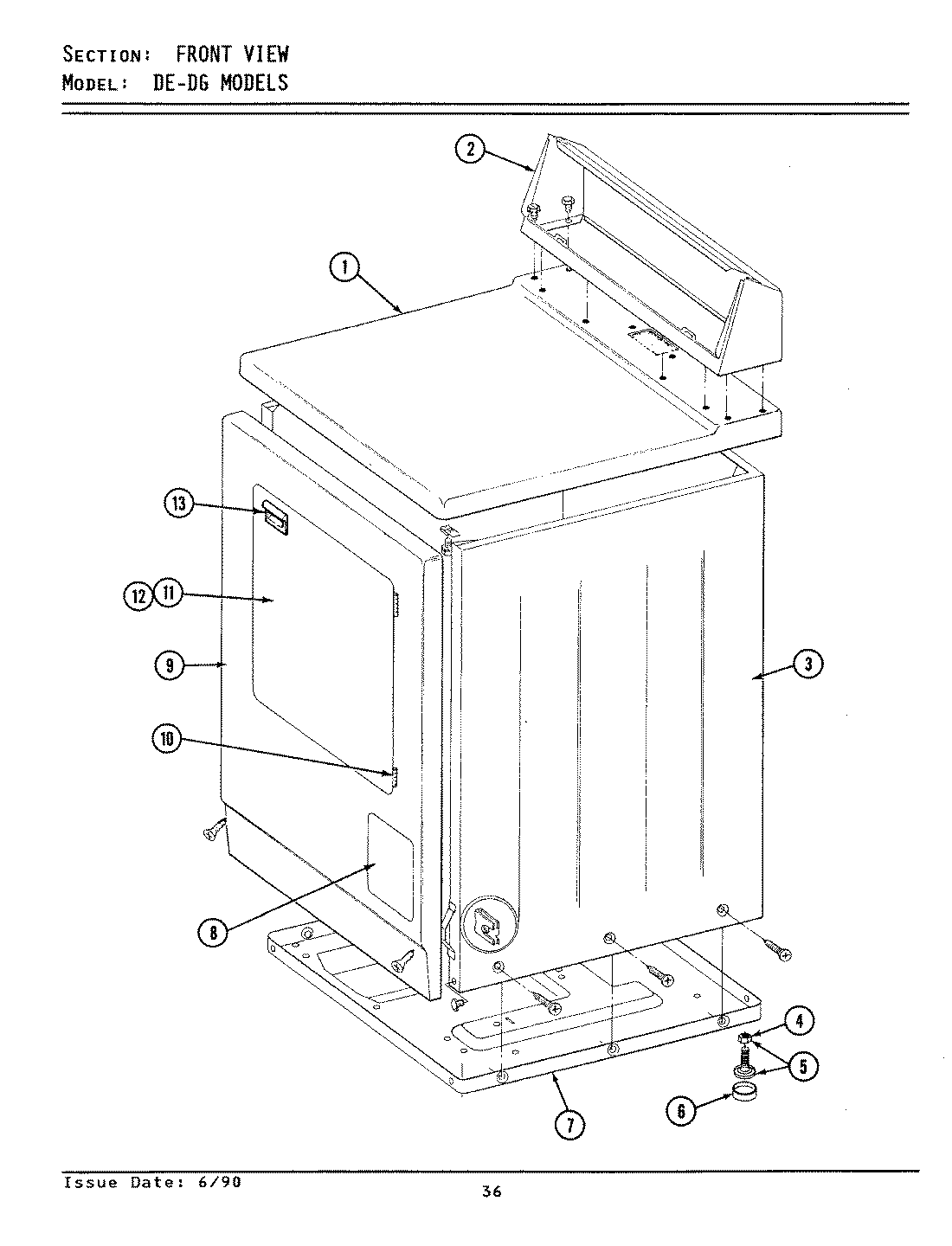

LDG8200 03 – FRONT VIEW

Products

Position	Product
1	MAY 307104L
1	MAY 204445
2	MAY 305193L
2	MAY Y313559
3	MAY Y310632
3	MAY 307124L
4	WP62739 Whirlpool Nut
5	W10176519 Whirlpool Leveling Feet
6	WPY314137 Whirlpool Rubber Foot
7	MAY Y303361
8	MAY 302542L
9	(ALM)
10	MAY 307099
11	MAY 307111L
12	MAY 314966L
13	MAY 314972
