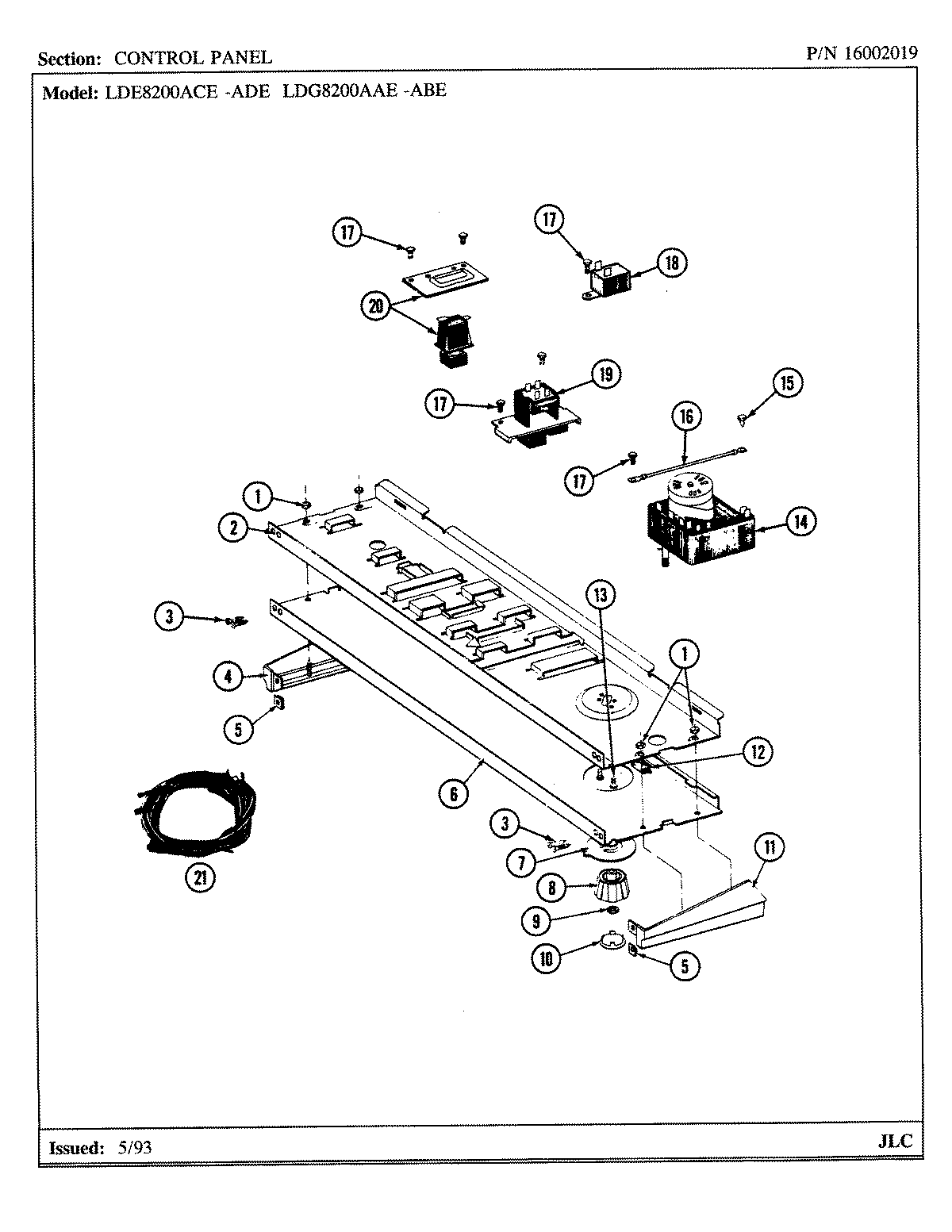

LDG8200AAE 03 – CONTROL PANEL

Products

Position	Product
1	MAY 214872
2	BACK UP PLATE
3	MAY 210932
4	MAY 308469
5	MAY 214894
6	MAY 308646
7	MAY 315438
8	MAY 315422
9	W10155650 Whirlpool Nut
10	MAY 216057
11	MAY Y308470
12	MAY 214897
13	MAY 315317
14	MAY Y308220
15	WP90767 Whirlpool Screw
16	MAY 204807
17	WPW10139210 Whirlpool Screw
18	WP694419 Whirlpool Buzzer Adjuster
19	MAY 308467
20	MAY 308468
21	MAY 308333
21	MAY Y308492
22	MAY 315221
