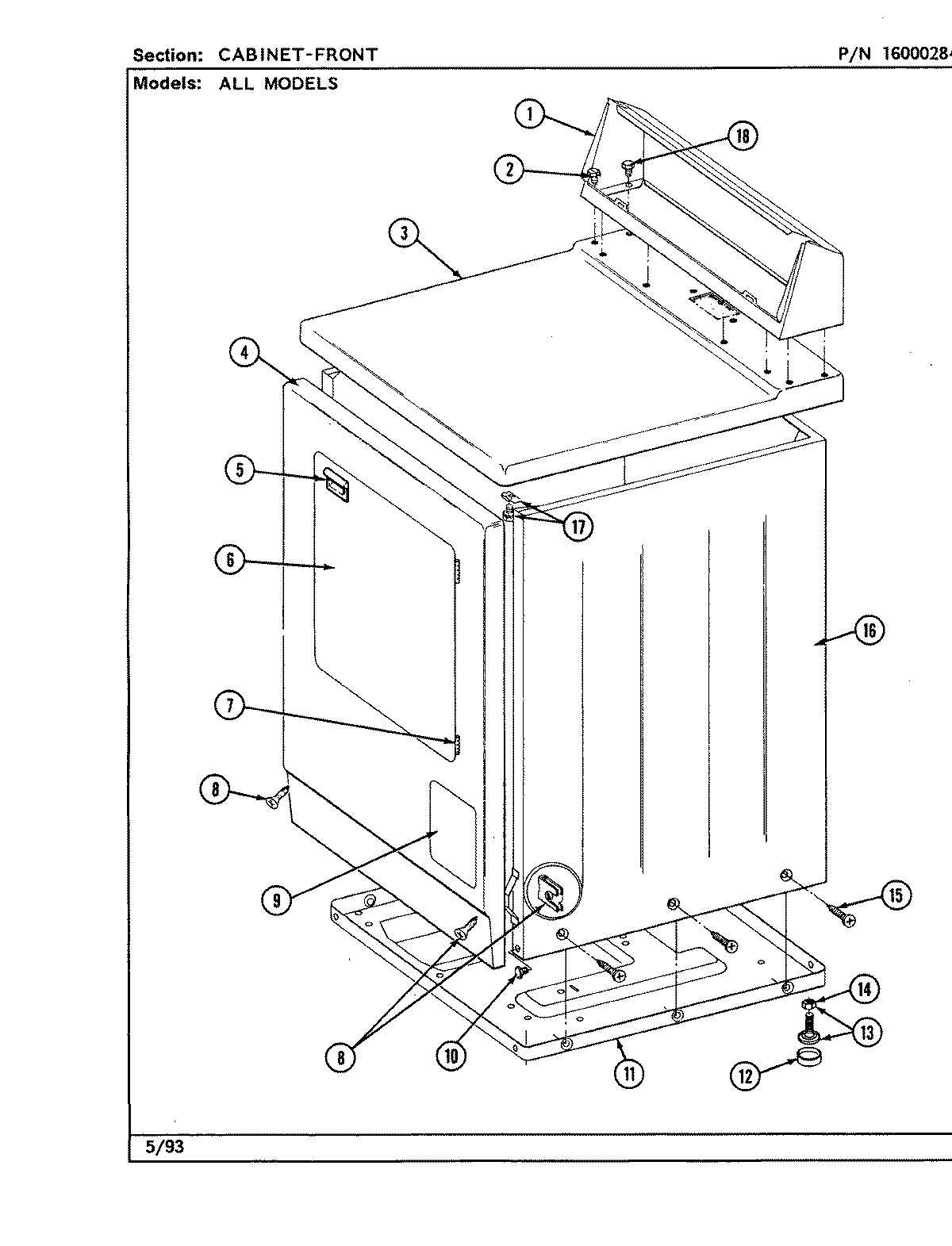

LDG8200AAL 01 – CABINET (FRONT LDG8200AAW,AAL,ABL,ABW)

LDG8200AAL 01 – CABINET (FRONT LDG8200AAW,AAL,ABL,ABW)

Written by

in

LDG8200AAL 01 – CABINET (FRONT LDG8200AAW,AAL,ABL,ABW)

Products

PositionProduct
1MAY 305193L
2MAY Y313559
3MAY 307104L
4(ALM)
5MAY 314972
6MAY 314966L
6MAY 307111L
7MAY 307099
8SCREW & FSTNER ASSY (FT. PNL)
9MAY 302542L
10MAY Y310632
11MAY Y303361
12WPY314137 Whirlpool Rubber Foot
13W10176519 Whirlpool Leveling Feet
14WP62739 Whirlpool Nut
15213007 Whirlpool Screw #12
16MAY 307124L
17MAY 204445
18WP90767 Whirlpool Screw
