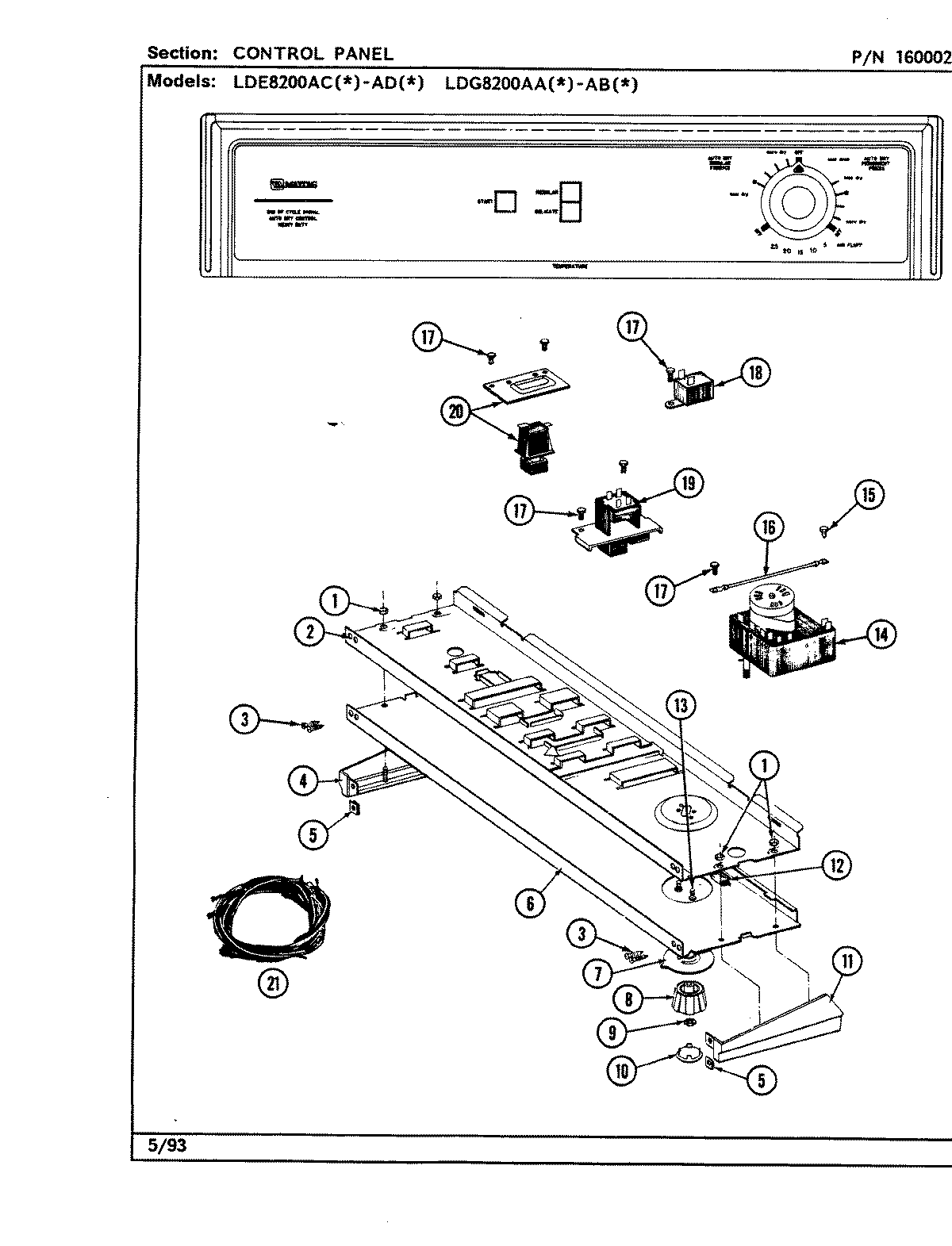

LDG8200AAL 04 – CONTROL PANEL (LDG8200AAW,AAL,ABL,ABW)

Products

Position	Product
1	MAY 214872
2	BACK UP PLATE
3	MAY 210932
4	MAY 207215
5	MAY 214894
6	MAY 308265
7	MAY 315042
8	MAY 315041
9	W10155650 Whirlpool Nut
10	MAY 215821
11	MAY 207216
12	MAY 214897
13	MAY 315317
14	MAY Y308220
15	WP90767 Whirlpool Screw
16	MAY 204807
17	WPW10139210 Whirlpool Screw
18	WP694419 Whirlpool Buzzer Adjuster
19	MAY 207365
20	SWITCH PUSH TO START
21	MAY 308333
21	MAY Y308492
22	MAY 16000327
22	MAY 315221
