LDG8200ABW 03 – CABINET-FRONT – Aparts

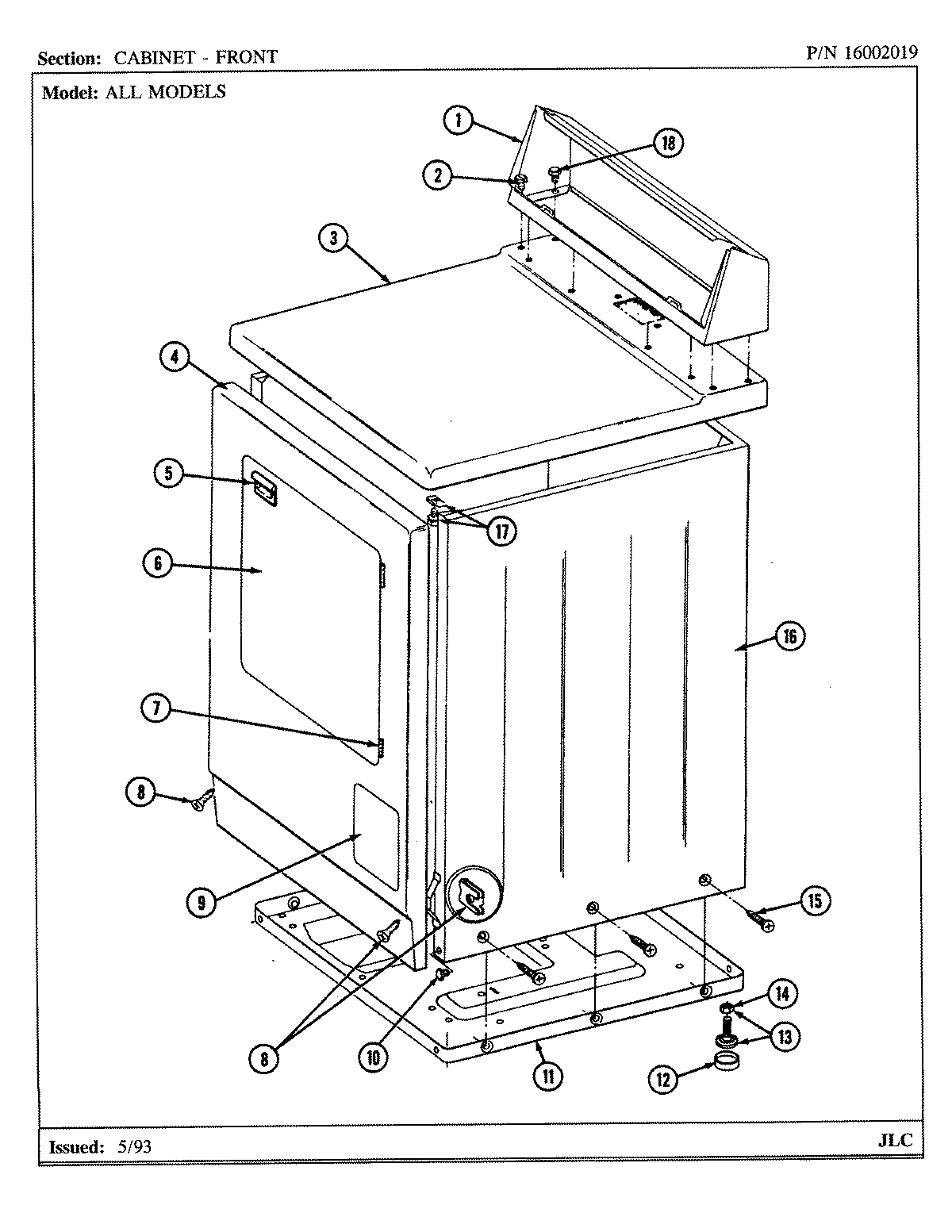

LDG8200ABW 03 – CABINET-FRONT

Products

Position	Product
1	MAY Y305193
2	MAY Y313559
3	TOP COVER ASSY. (WHT)
5	MAY 314946
6	MAY Y307111
6	MAY 314966
7	MAY 307099
8	SCREW & FSTNER ASSY (FT. PNL)
10	MAY Y310632
11	MAY Y303361
12	WPY314137 Whirlpool Rubber Foot
13	W10176519 Whirlpool Leveling Feet
14	WP62739 Whirlpool Nut
15	213007 Whirlpool Screw #12
16	MAY 307124
17	MAY 204445
18	WP90767 Whirlpool Screw
