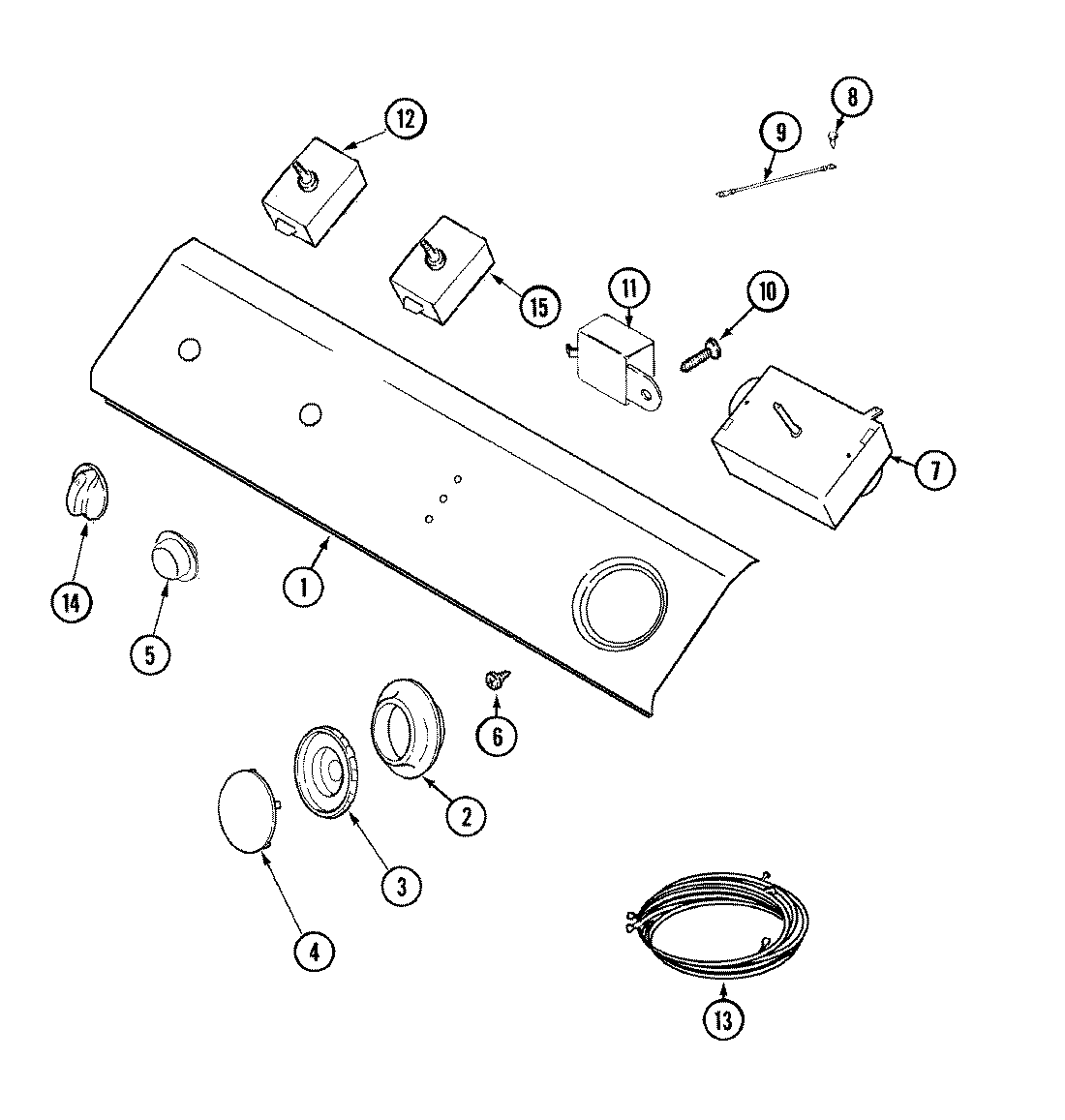

LDG8406AAE 03 – CONTROL PANEL

LDG8406AAE 03 – CONTROL PANEL

Written by

in

LDG8406AAE 03 – CONTROL PANEL

Products

PositionProduct
1MAY 33001588
18534058 Whirlpool Refrigerator Screw
2WP33001621 Whirlpool Dial Knob
3WP22001659 Whirlpool Timer Knob
4WP22001664 Whirlpool Timer Knob
5MAY 33001619
6WP90767 Whirlpool Screw
7WP33001632 Whirlpool Timer Assembly
8MAY 210186
9MAY 22001654
10MAY 216423
11MAY 33001623
12MAY 33001726
13MAY 33001668
14WP22001663 Whirlpool Selector Knob
15MAY 33001641
