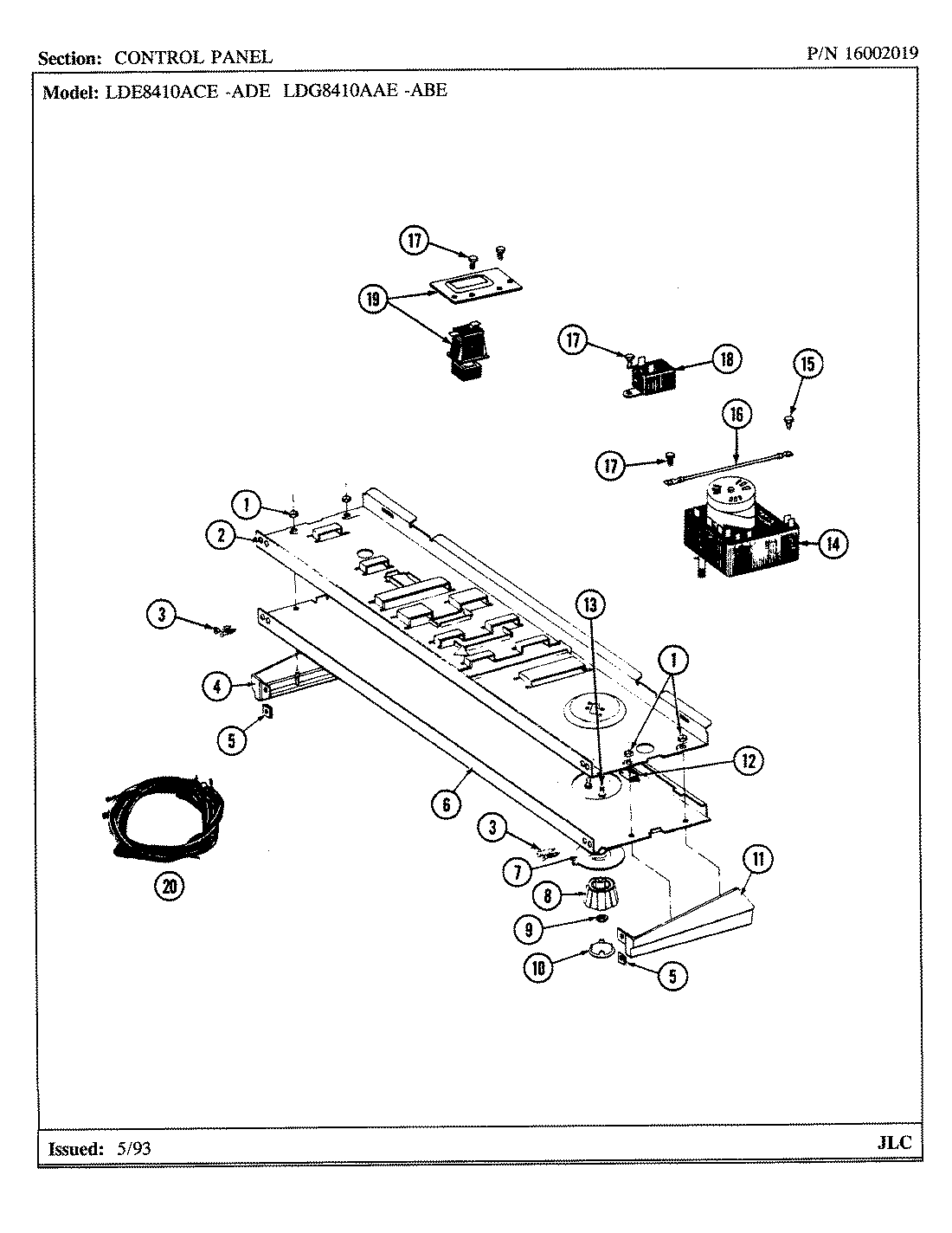

LDG8410AAE 03 – CONTROL PANEL

Products

Position	Product
1	MAY 214872
2	BACK UP PLATE
3	MAY 210932
4	MAY 308469
5	MAY 214894
6	MAY 308647
7	MAY 315438
8	MAY 315422
9	W10155650 Whirlpool Nut
10	MAY 216057
11	MAY Y308470
12	MAY 214897
13	MAY 315317
14	WPY308254 Whirlpool Timer
15	WP90767 Whirlpool Screw
16	MAY 204807
17	WPW10139210 Whirlpool Screw
18	WP694419 Whirlpool Buzzer Adjuster
19	MAY 308468
20	HARNESS, WIRE
